RUIDA RDC6442G CO2 Laser Control Panel For Non-Metal Cutting

Name: RUIDA RDC6442G CO2 Laser Control Panel For Non-Metal Cutting
Brand: Shenzhen Ruida Technology Co., Ltd.
SKU: RDC6442G
Price: 410.00 USD
Availability: InStock

Brand Name:	RUIDA
Model Number:	RDC6442G
MOQ:	1
Price:	Negotiable - Inquire Within
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	100 sets/day

Detail Information

Product Description

Detail Information

Place of Origin:

Mainland China

Certification:

CE FCC ROHS

Laser Source:

CO2 Glass Tube, CO2 RF Tube And UV Lasers

Axis:

Double Heads Asynchronous:

Not Support

Laser Channel:

Communication Interface:

Ethernet, USB And WIFI (optional)

Panel:

3.5” Color Screen + Keys

Feeding:

U Axis Feeding, Sheet Feeding

Installment Encryption:

Support

Onboard Clock:

Not Support

Firmware Upgrade:

Support The Remote Upgrade Of Mainboard

Rotary Processing:

Y Axis Rotation

Engraving Function:

Plane Engraving, Slope Engraving And Gray Engraving

Resume Processing After Power Failure:

Support

Software:

RDWorksV8, Plug-in Software RDPlug, Virtual Printing And RDPlug

Operating System:

WinXP, Win7, Win8, Win10, 32-bit Or 64-bit

Language:

Simplified Chinese, Traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, And Italian.

Packaging Details:

Carton Packing

Supply Ability:

100 sets/day

Product Description

RUIDA RDC6442G CO2 Laser Control Panel For Non-Metal Cutting

Discroption of RDC6442G:

The RDC6442G system is equipped with a 3.5-inch color display for a more intuitive user experience and a richer feature set. With advanced motion control, this controller includes onboard file storage and an adaptable U flash disk driver. It boasts multi-channel general/special IO control for versatile device compatibility. Additionally, it enhances connectivity with support for both Ethernet and USB interfaces for PC communication.

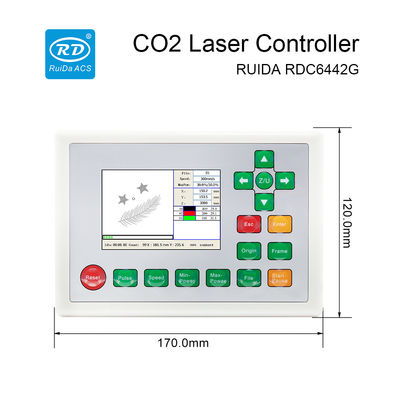

RUIDA RDC6442G CO2 Laser Control Panel For Non-Metal Cutting 0

Key Features:

1. Support standalone operation and U disk processing
2.Support offline modification of file attributes, manufacturer and user parameters
3.Support working hours preview, accurate to millisecond
4.Real-time display the processing path, coordinate point and progress bar
5.Automatic focusing by panel, support manual and automatic focusing
6.Support manual input or automatic acquire the coordinate of docking point
7.Abundant external auxiliary accessories are optional (wireless handheld box, RD-APP and RD-WIFI)
8.Extended interface for external device is convenient to customize demand

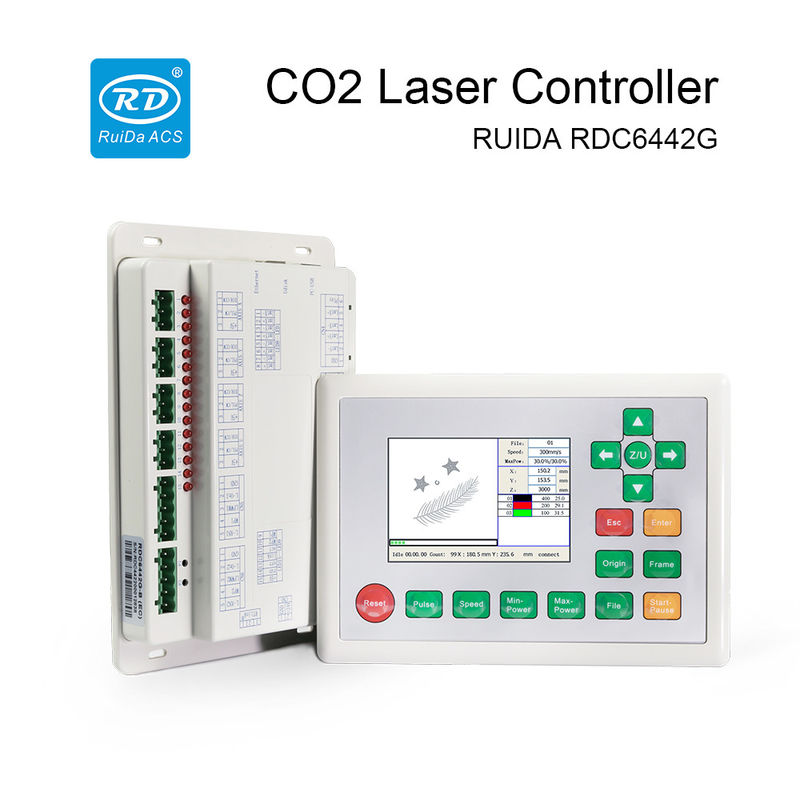

RUIDA RDC6442G CO2 Laser Control Panel For Non-Metal Cutting 1

Software RDworks V8(Free)

Support PLT,DXF,AI,DST and other file formats import,display and edit functions,support image file import and processing.

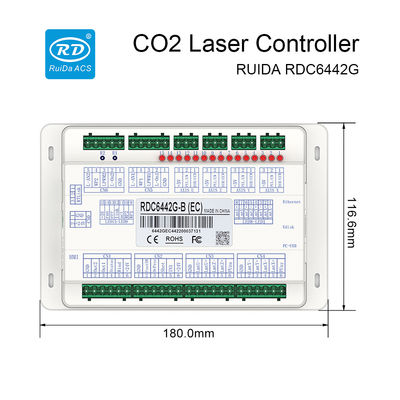

RUIDA RDC6442G CO2 Laser Control Panel For Non-Metal Cutting 2

Application

Mainly focusing on non-metal laser cutting and engraving,including fabric,leather,wood,paper,acrylic,PMMA,rubber and plastics,smart phone accessory,ect.
