| Brand Name: | RUIDA |
| Model Number: | RDC6685U |
| MOQ: | 50 |
| Price: | Negotiable - Inquire Within |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets/day |

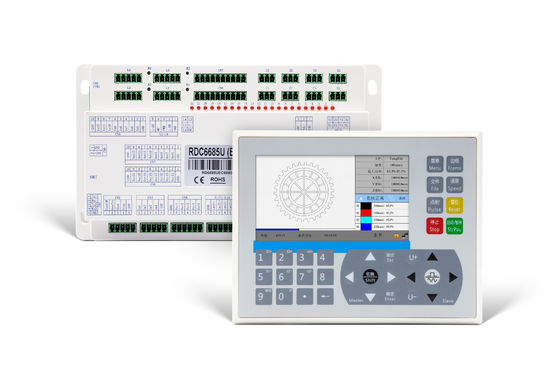

RUIDA RDC6685U CO2 Laser Controller Card System Laser Control Panel For CO2 Laser Engraving Cutting Machine Replace 6442U 6445U
Discroption of RDC6685U:
The RDC6685U, Ruida Technology's newest addition to dual X/Y coordinate system controllers, features improved hardware reliability and exceptional protection against high voltage and electrostatic disruption. It is furnished with a 5-inch color screen HMI for an intuitive interface and advanced capabilities.
Key Features:
1. Self-Contained Operation: Designed for standalone use, it includes USB, Ethernet, and U flash disk connectivity.
2. Versatile Interfaces: Comes with an array of laser interfaces and broad external IO capabilities.
3. Synchronized Dual Systems: Enables dual-beam synchronization and handles both simultaneous and sequential dual-head processing.
4. Automated Material Handling: Includes features for automated feeding and extensive visual cutting for large formats.
5. High-Performance Cutting: Suited for efficient laser cutting in large-scale graphic designs and textiles, including clothing, leather, and fabric.
Software UnionLaser(Free):
The Unionlaser software for double heads synchronous work can not only make an intelligent assignment of the double heads processing,but also control the coordination for the main and slave controllers.
Technical Parameters:
| Parameters | RDC6685U |
| Laser source | CO2 glass tube, CO2 RF tube and UV lasers |
| Axis | 8 |
| Laser channel | 4 |
| Multi-head synchronous | Double coordinates system control, support double head asynchronous and synchronous |
| Communication | Ethernet, USB and WIFI (optional) |

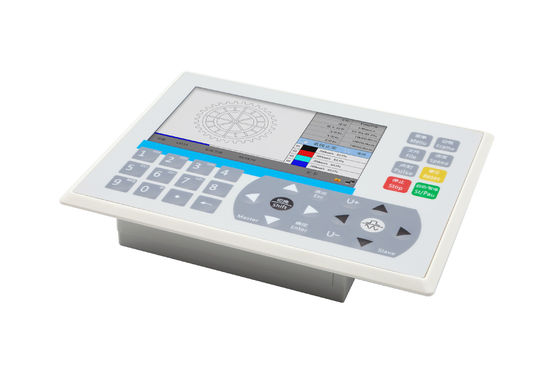

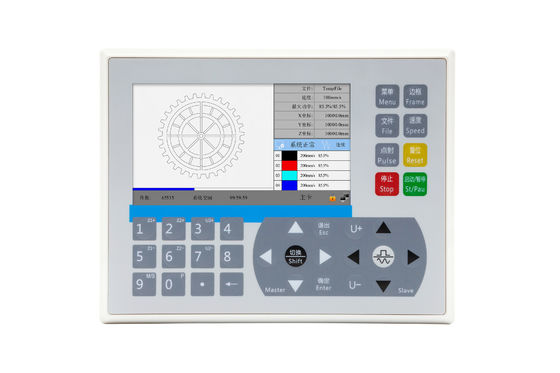

| Panel | 5” color screen + keys |
| Feeding | U axis feeding/ Y and U axes feeding synchronously, sheet feeding/large format segmentation feeding |
| Encryption | Support |
| Onboard clock | Support (support the modification of time) |
| Firmware | Remote upgrade of panel and mainboard program |
| Cutting | Ordinary cutting |
| Engraving | Plane engraving, slope engraving and gray engraving |
| Software | UnionLaser,RDWorksV8,RDVisionWorks |
| Language | Including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian |

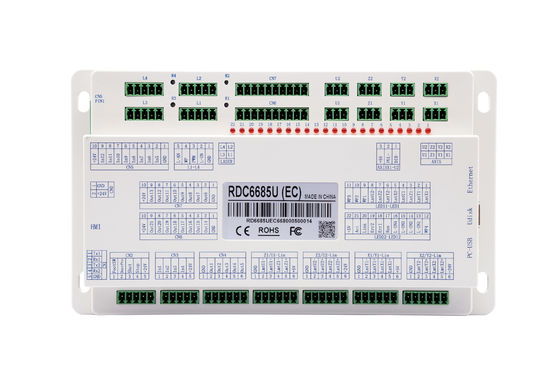

| Size | Panel:L180mm*W140mm*H42.1mm Mainboard:L236*W137*H33.5mm |
| Accessories | Wireless handle and RD-WIFI |
Why Choose Us:
1.Self-Sufficient Operation
2.Interface Flexibility
3.Dual-System Synergy
4.Automated Precision
5.Optimized for Efficiency
Choose our system for its combination of reliability, flexibility, and high performance.
