RDC6332M CO2 Laser Metal And Non Metal Cutting Controller With Mark Point Positioning Cutting

Name: RDC6332M CO2 Laser Metal And Non Metal Cutting Controller With Mark Point Positioning Cutting
Brand: Shenzhen Ruida Technology Co., Ltd.
SKU: RDC6332M
Price: 410.00 USD
Availability: InStock

Brand Name:	RUIDA
Model Number:	RDC6332M
MOQ:	50
Price:	Negotiable - Inquire Within
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Detail Information

Product Description

Detail Information

Place of Origin:

Mainland China

Certification:

CE FCC ROHS

Axis:

Laser Source:

High Power CO2 Glass Tube Laser And RF Laser

Laser Channel:

Feeding:

Z Axis Feeding, Sheet Feeding

Communication:

Ethernet, USB And WIFI (optional)

Panel:

3.5'' Color Screen + Keys, Linux Operating System

Height Controller:

Metal Follow Height Control System

Auxiliary Gas:

Support Multi-channel Auxiliary Gas Control.

Encryption:

Support

Software:

MetalCut, Support Punching, Lead, Bridge And Micro Connection, RDWorks V8

Packaging Details:

300*340*110

Supply Ability:

100 sets/day

Highlight:

Metal And Non Metal Cutting Controller

RDC6332M Laser Controller

3 Axis Laser Cutting Controller

Product Description

RUIDA RDC6332M CO2 Laser Controller For Metal And Non-Metal Cutting With Mark Point Positioning Cutting

Discroption of RDC6332M:

The RDC6332M is a hybrid cutting control system developed by Ruida Technology, building upon the robust foundation of the RDC6332G control system. This advanced system is designed to handle both metal sheet and non-metal cutting processes, offering a versatile solution for diverse material cutting needs. With the RDC6332M, users can achieve metal cutting and non-metal cutting with a single, powerful controller.

Product Feature:

1. Versatile Cutting: Capable of cutting both metal and non-metal materials with a high-power CO2 laser.
2. Height Control and Gas Management: Features a metal height controller and multi-channel gas control for precise cutting.
3. Network Camera for Positioning: Uses a network-based camera for accurate positioning and cutting of marked points.
4. Wide Industry Use: Commonly used in the advertising industry for mixed material cutting.

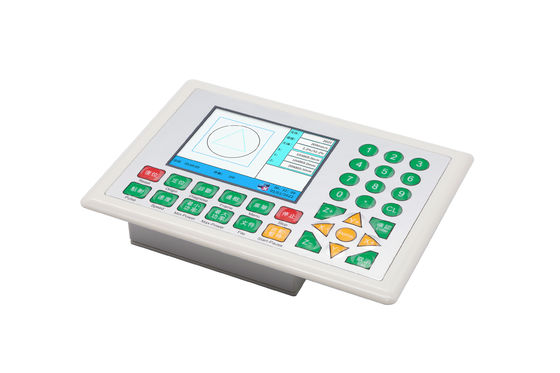

RDC6332M CO2 Laser Metal And Non Metal Cutting Controller With Mark Point Positioning Cutting 0

Software MetalCut(Free)

Support image and vector import. CAD tools. Image and text processing tools. Support CAM function for laser cutting. Support multi-languages.

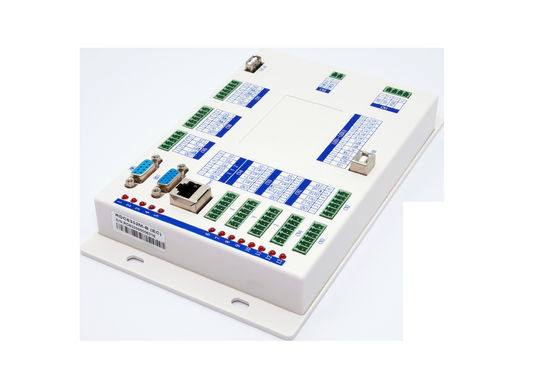

RDC6332M CO2 Laser Metal And Non Metal Cutting Controller With Mark Point Positioning Cutting 1

Technical Parameters:

Parameters	RDC6332M
Laser source	High power CO2 glass tube laser and RF laser
Axis	3
Laser channel	2
Multi-head synchronous	Double coordinates system control, support double head asynchronous and synchronous
Communication	Ethernet, USB and WIFI (optional)
Panel	3.5” color screen + keys, Linux operating system
Feeding	Z axis feeding, sheet feeding
Height controller	Metal follow height control system
Auxiliary gas	Support multi-channel auxiliary gas control
Encryption	Support
Onboard clock	Support
Firmware	Remote upgrade of panel and mainboard program
Cutting	Metal and non-metal mixed cutting
Camera	None
Light source	None
Engraving	Plane engraving, slope engraving and gray engraving
Software	MetalCut, support punching, lead, bridge and micro connection, RDWorks V8
Language	Including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Korean, Italian
Size	Panel:L170mmW120mmH38.6mm Mainboard:L220.5W134H29.6mm
Accessories	Wireless handle, RD-APP and RD-WIFI

Why Choose US?

1.Versatile Laser Cutting
2.Precision Height Control
3.Accurate Positioning
4.Industry-Specific Application

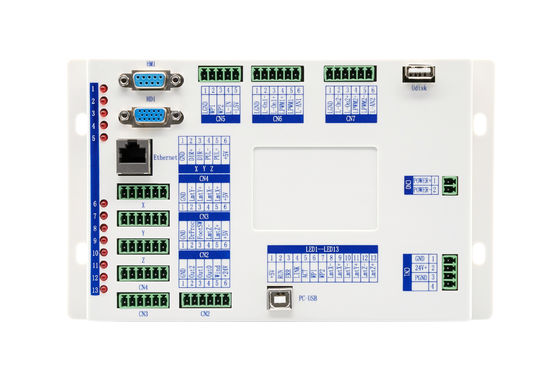

RDC6332M CO2 Laser Metal And Non Metal Cutting Controller With Mark Point Positioning Cutting 2
