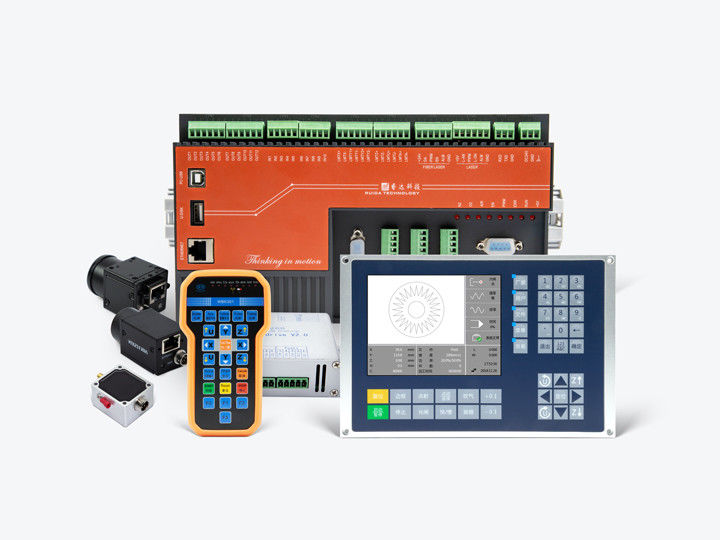

RDV6563FG-NET Fiber Laser Controller Automatic Height Control For High Speed Cutting

RUIDA RDV6563FG-NET Fiber Laser Cutting Controller With Automatic Height Control For High Speed Cutting


Discroption of RDV6563FG-NET:

The RDV6563FG-NET from Ruida Tech., is a standalone fiber cutting control system featuring Mark point vision technology. This system utilizes capacitive sensing for its Z-axis automatic height control, equipped with a high-performance amplifier and advanced anti-interference design to enhance motion speed and responsiveness. Integrated with RDCutist software, it enables advanced cutting functions such as Frog, Flight cutting, and No rise.



Product Function:

1.Support standalone operation and the modification of offline manufacturer parameter, user parameter and file processing attributes
2.Support 6 axes, integrated full digital height control system, high precision capacitance sensor, dynamic servo accuracy less than 0.1mm, detection accuracy less than 0.01mm
3.Realize the automatic calibration function of the capacitance parameter, matched with any cutting head
4.Support manual and continuous switch and speed key switch
5.Support metal processing technic, such as die-cutting and pre-piercing
6.Support Mark point vision positioning and cutting
7.Support the metal and non-metal mixed cutting for fiber and CO2 laser

Software RDCutist(Free)

Support PLT,DXF,AI and other file formats import,display and edit functions,support image file import and processing.

Technical Parameters:






Application:

1.Suitable for metal and non-metal cutting in sheet metal, auto parts, handicrafts and utensils industries.

2.Suitable for large-format fiber laser processing machine,and widely use in small and medium power laser power laser cutting and CO2 non-metal cutting.
