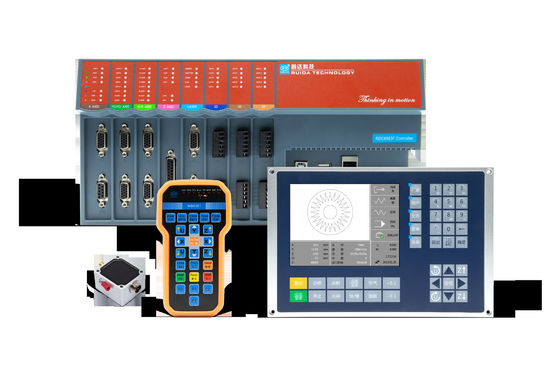

RDC6563FG-LITE Fiber Laser Cutting Controller With 6 Axes Full Digital Height Control System

RUIDA RDC6563FG-LITE Fiber Laser Cutting Controller With 6 Motion Axes And Full Digital Height Control System


Discroption of RDC6563FG-LITE:

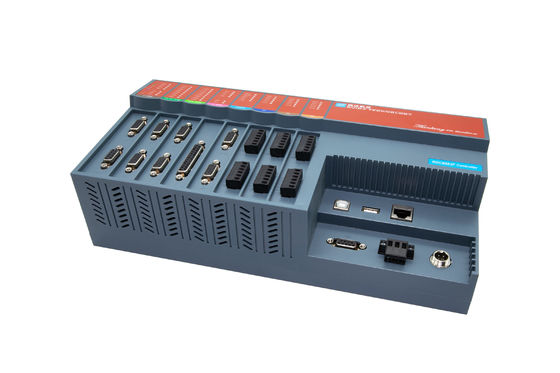

The RDC6563FG-LITE, a standalone fiber cutting control system by Ruida Tech., is known for its robust hardware stability and high resistance to voltage and static interference. It features a special time system, hardware encryption support, and smooth PC communication via Ethernet and USB. The system's capacitive sensing Z-axis control, with a high-performance amplifier and anti-interference design, boosts the speed and precision of height adjustments. Integrated with RDCutist software, it offers advanced cutting functions like Frog and Flight, making it ideal for high-precision fiber cutting applications.

Key Features:

1. Autonomous Function: Designed for standalone operation.
2. Versatile Connectivity: Supports USB, Ethernet, and U flash disk for data transfer.
3. Diverse Processing Capabilities: Compatible with RDCutist software for processing both metals and non-metals.
4. Advanced Motion Control: Capable of controlling 6 motion axes with an integrated digital height control system, and offers a variety of optional 5.external auxiliary accessories.
6. Specialized Cutting Functions: Enables leapfrog, flight cutting, and short-distance cutting without lifting.
7. Broad Industry Application: Utilized in fiber and high-power CO2 laser cutting, suitable for industries such as sheet metal, automotive parts, handicrafts, and utensils.

Software RDCutist(Free)

Support PLT,DXF,AI and other file formats import,display and edit functions,support image file import and processing.


Technical Parameters:


Why Choose the RDC6563FG-LITE:

1.Independent Use: Operates standalone, eliminating reliance on external systems.
2.Direct Data Transfer: Facilitates USB and Ethernet communication, plus U flash disk support.
3.Dual Material Processing: Handles both metal and non-metal with RDCutist software integration.
4. 6-Axis Control: Features an integrated digital height control system for versatile cutting.
5.Efficient Cutting Modes: Includes leapfrog, flight cutting, and no-lift short-distance cutting.
6.Industry-Wide Applicability: Suited for various laser cutting needs across different industries.
