RUIDA RDC6563FP Fiber And Co2 Laser Controller For Engraving Cutting Machine

Name: RUIDA RDC6563FP Fiber And Co2 Laser Controller For Engraving Cutting Machine
Brand: Shenzhen Ruida Technology Co., Ltd.
SKU: RDC6563FP
Price: 410.00 USD
Availability: InStock

Brand Name:	RUIDA
Model Number:	RDC6563FP
MOQ:	50
Price:	Negotiable - Inquire Within
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Detail Information

Product Description

Detail Information

Place of Origin:

Mainland China

Certification:

CE FCC ROHS

Brand:

RUIDA

Axis:

Auxiliary Air:

2 Roads

Pecision:

1 Pluse

Pulse Frequency:

500KHZ

Application:

For Fiber And CO2 Laser Engraving And Cutting Machine

Feeding:

Support

Auto-focus:

Z Axis Height Control And Auto-focus Control In Laser Head

Software:

RDCutist

Return Position:

Return Position Setting When Job Finished

Packaging Details:

Carton Packing

Supply Ability:

100 sets/day

Highlight:

Fiber And Co2 Laser Controller

Fiber Engraving Cutting Machine Controller

RDC6563FP Laser Controller

Product Description

RUIDA RDC6563FP Fiber And Co2 Laser Controller For Fiber Laser Engraving Cutting Machine

Discroption of RDC6563FP:

RUIDA RDC6563FP is an standalone fiber laser cutting control system with 256M memory on board.Utilises DlR+Pulse control mode, support the control of steeper motor and servo motor.It Suitable for laser processing of large format fiber, CO2 glass tube, RT tube, applied in laser cutting with medium and small power and mixed cutting.

Function description:

1. Standalone operation.
2. Support USB and Ethernet communication and U flash disk.
3. Worked with independent application software RDCutist. Support metal and non-metal processing.
4. Support 6 motion axes. Integrated full digital height control system. Rich external auxiliary accessories are optional.

5. Support leapfrog, flight cutting, short-distance without lifting and other functions.
6. Applied in fiber and high-power CO2 laser cutting application and suitable for cutting in sheet metal, auto parts, handicrafts and utensils industries.

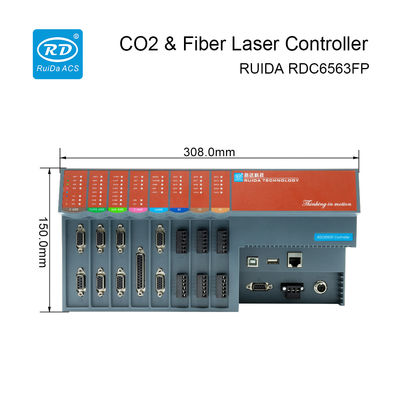

RUIDA RDC6563FP Fiber And Co2 Laser Controller For Engraving Cutting Machine 0

Software RDCutist(Free)

Support PLT,DXF,AI and other file formats import,display and edit functions,support image file import and processing.

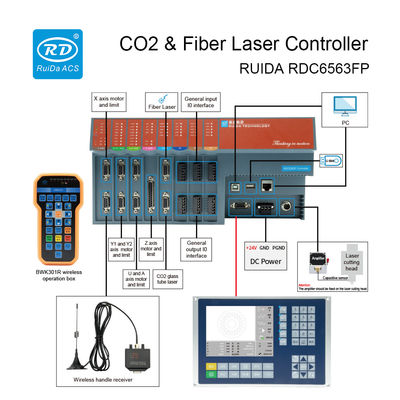

RUIDA RDC6563FP Fiber And Co2 Laser Controller For Engraving Cutting Machine 1

Technical Parameters:

Parameters	RDC6563FP
Laser source	Support large format fiber cutting , CO2 glass tube,RF tube laser
Axis	6
Laser channel	2
Pecision	1 pulse
Auto-focus	Z axis height control and auto-focus control in laser head

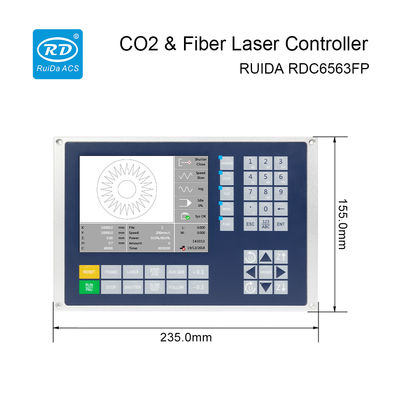

Panel	5.7” TFT displayer with control and number keys
System functions	Height sensor calibration and compatible with popular laser heads. Vector layer parameters support height seting and speed setting.Support stage piercing, continuous piercing and pulse piercing
Return position	setting when job finished
RTC	Support encryption for installment
Update	Support Operating panel update and controller update online
Feeding	Support
Height control	0.1mm, Z axis height control. high precise height sensor.
Detection precision:	0.01mm
System protection	Collision protection, limit protection and servo alarm protection Laser alarm protection and machine protection
Software	RDCutist
Auxiliary air	Support 3 channels auxiliary air control, suitable for various processing techniques.
Languages	Support simplified Chinese,traditional Chinese and English

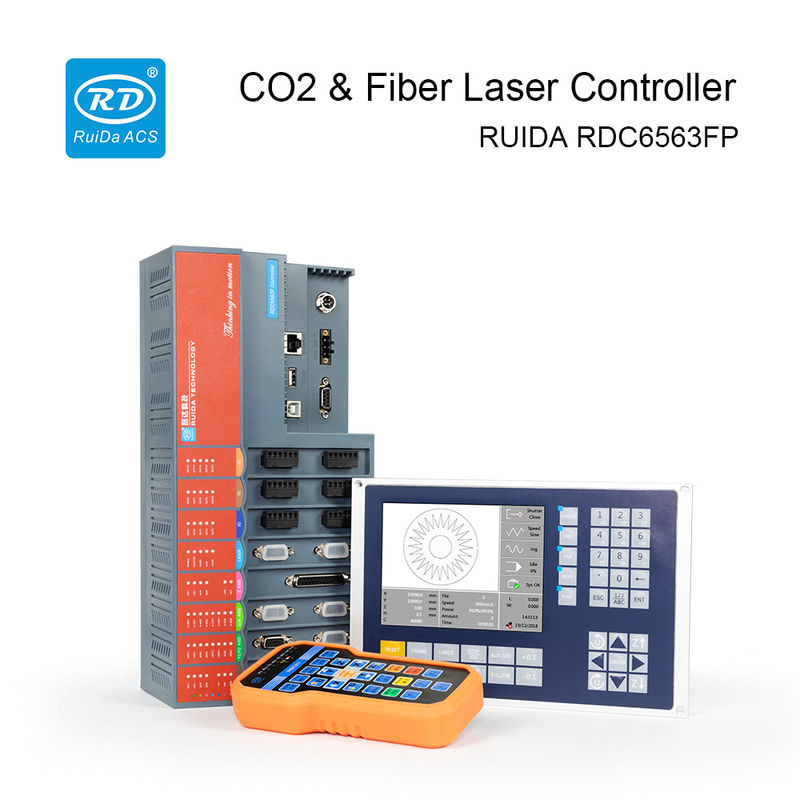

RUIDA RDC6563FP Fiber And Co2 Laser Controller For Engraving Cutting Machine 2
