2 Channel RDC6563FG-LITE Fiber Laser Controller For Cutting And Engraving Machines

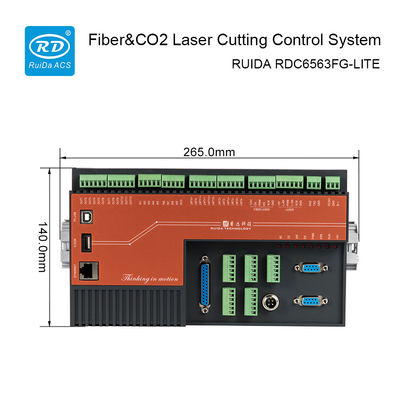

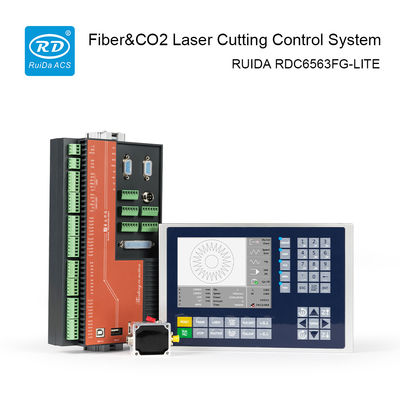

RUIDA RDC6563FG-LITE Fiber Laser Controller For Cutting And Engraving Machines


Discroption of RDC6563FG-LITE:

RDC6563FG-LITE standalone fiber cutting control system features better hardware stability, anti-high voltage and anti-static interference, which is independently developed by Shenzhen Ruida Technology Co., LTD. Besides, it integrates special time system and supports hardware encryption algorithm, and Ethernet and USB communication with PC. Based on capacitive sensing technology, Z axis is an automatic height controller adopting high--performance amplifier and professional anti-interference design, which greatly increases the speed of motion and response of the height controller and achieves the accurate automatic height control. When working with RDCutist software, it can activate functions like Frog, Flight cutting and no rise.



Product feature:

1. Standalone operation.
2. Support USB and Ethernet communication and U flash disk.
3. Worked with independent application software RDCutist. Support metal and non-metal processing.

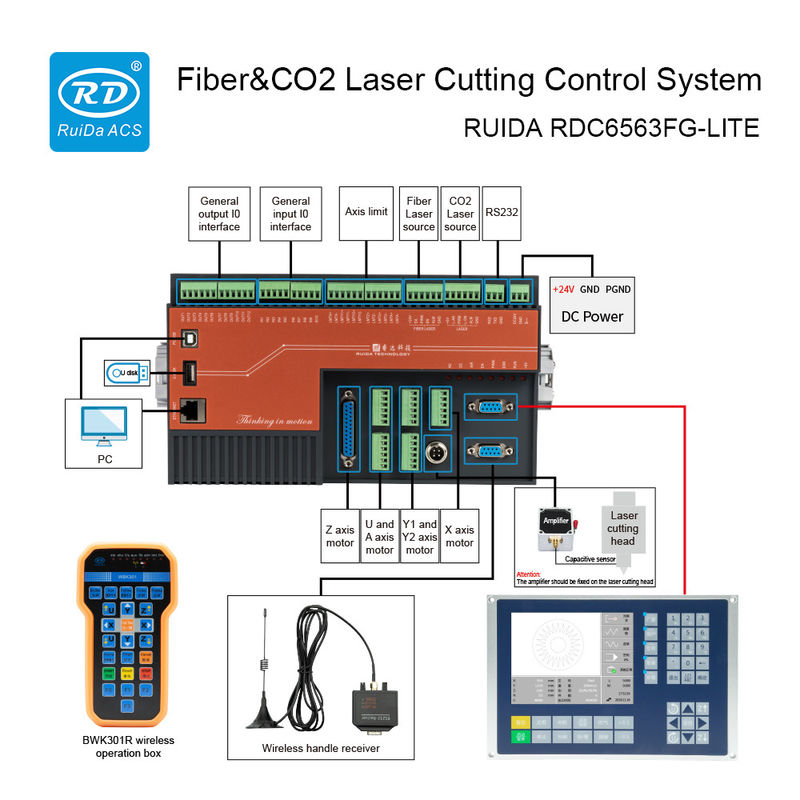

4. Support 6 motion axes. Integrated full digital height control system. Rich external auxiliary accessories are optional.

5. Support leapfrog, flight cutting, short-distance without lifting and other functions.
6. Applied in fiber and high-power CO2 laser cutting application and suitable for cutting in sheet metal, auto parts, handicrafts and utensils industries.

Software RDCutist(Free)

Support PLT,DXF,AI and other file formats import,display and edit functions,support image file import and processing.

Technical Parameters:
