RUIDA RDC6445G-MOD5 Standalone Laser Cutting And Engraving Machine Controller

Name: RUIDA RDC6445G-MOD5 Standalone Laser Cutting And Engraving Machine Controller
Brand: Shenzhen Ruida Technology Co., Ltd.
SKU: RDC6445G-MOD5
Price: 410.00 USD
Availability: InStock

Brand Name:	RUIDA
Model Number:	RDC6445G-MOD5
MOQ:	50
Price:	Negotiable - Inquire Within
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Mainland China

Certification:

CE FCC ROHS

Axis:

Pecision:

+/-0.5 Pulse

Laser Channel:

Communication:

Ethernet, USB And WIFI (optional)

Virtual Print:

Support

Panel:

5˝touch Screen Based On MODBUS Protocol

Customize:

Support

Laser Source:

CO2 Glass Tube, CO2 RF Tube And UV Lasers

Encryption:

Support

Feeding:

U Axis Feeding/ Y And U Axes Feeding Synchronously, Sheet Feeding/large Format Segmentation Feeding

Packaging Details:

Carton Packing

Highlight:

Laser Cutting And Engraving Machine Controller

RUIDA Controller RDC6445G-MOD5

Industrial Laser Cutter Machine Controller

Product Description

RUIDA RDC6445G-MOD5 Standalone Laser Cutting And Engraving Controller

Discroption of RDC6445G-MOD5:

The RDC6445G-MOD5 system based on the MODBUS RTU communication protocol -With open-source HMI, provide the source code of HMI for customers to customize HMI operation pages based on the configured development environment.Compatible with most touch screens based on this protocol in the market.

Product feature:

1. Adopt HMI open-source system. Users can quickly customize HMI operation pages based on the configured development environment.
2. Based on MODBUS RTU communication protocol, it is compatible with most touch screens based on this protocol.
3. Support 4 motion axes, two laser interfaces and multi-channel general IO input and output.
4. Support single/double laser head processing, double heads synchronous processing and ultra-wide segmentation cutting processing.
5. Worked with independent application software RDWorksV8. support plug-in software and virtual printing.
6. Focus on non-metal cutting, suitable for leather, fabric, sign, craft gift, toy and 3C application fields.

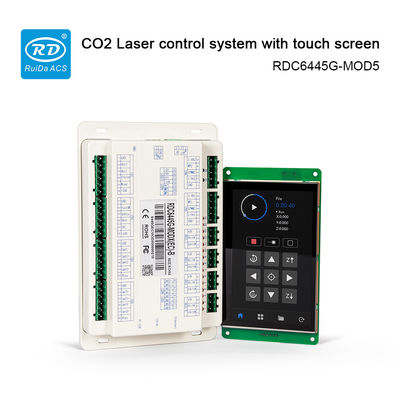

RUIDA RDC6445G-MOD5 Standalone Laser Cutting And Engraving Machine Controller 0

Software RDworks V8(Free)

Support PLT,DXF,AI,DST and other file formats import,display and edit functions,support image file import and processing.

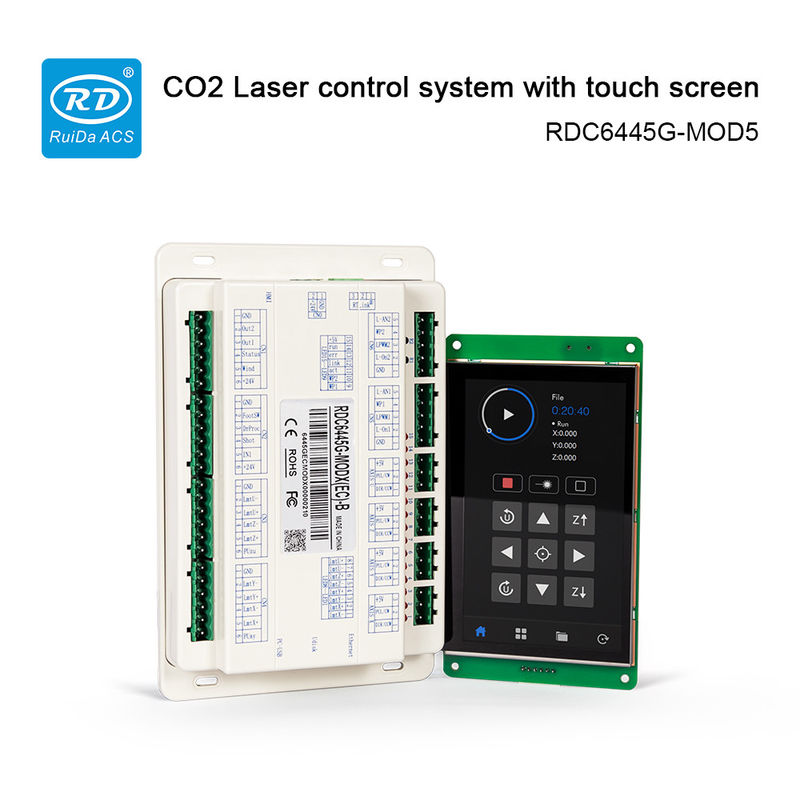

RUIDA RDC6445G-MOD5 Standalone Laser Cutting And Engraving Machine Controller 1

Technical Parameters:

Parameters	RDC6445G-MOD5
Laser source	CO2 glass tube, CO2 RF tube and UV lasers
Axis	4
Laser channel	2
Double heads synchronous	Support
Communication	Ethernet, USB and WIFI (optional)
Panel	5˝touch screen based on MODBUS protocol. Users can customize the operation interface
Laser cutting	Single beam
Feeding	U axis feeding, Y and U axes feeding synchronously, sheet feeding, large format segmentation feeding
Encryption	Support
Onboard clock	Support(the system time can be modified.)
Firmware	Support the remote upgrade of mainboard and panel program
Rotary	Y or U axis rotation mode is optional
Engraving	Plane engraving, slope engraving and gray engraving
Processing	Support resume processing after power failure
Software	RDWorksV8, plug-in software RDPlug, virtual printing and RDImage
Language	Simplified Chinese, English

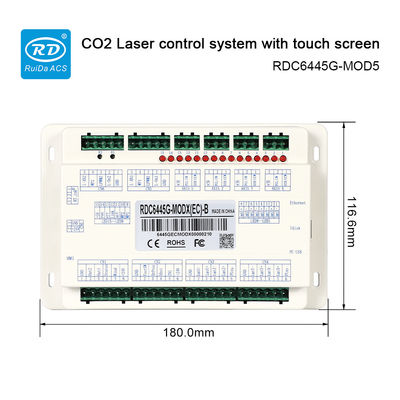

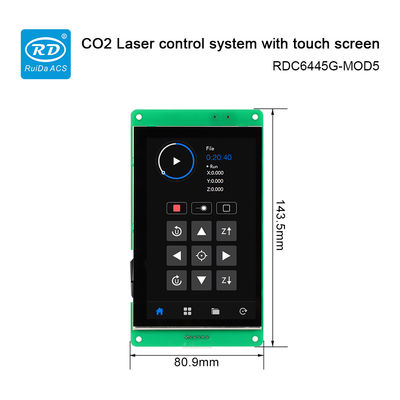

Size	Panel:L81W143.5H16.6mm Mainboard:L180W116.6H33.1mm
Accessories	Wireless handle, RD-APP and RD-WIFI

Note: Virtual printing only supports Win10.

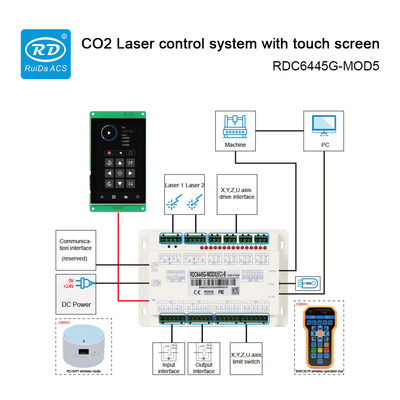

RUIDA RDC6445G-MOD5 Standalone Laser Cutting And Engraving Machine Controller 2

RUIDA RDC6445G-MOD5 Standalone Laser Cutting And Engraving Machine Controller 3
