| Brand Name: | RUIDA |
| Model Number: | RDC7132G |
| MOQ: | 50 |
| Price: | Negotiable - Inquire Within |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets/day |

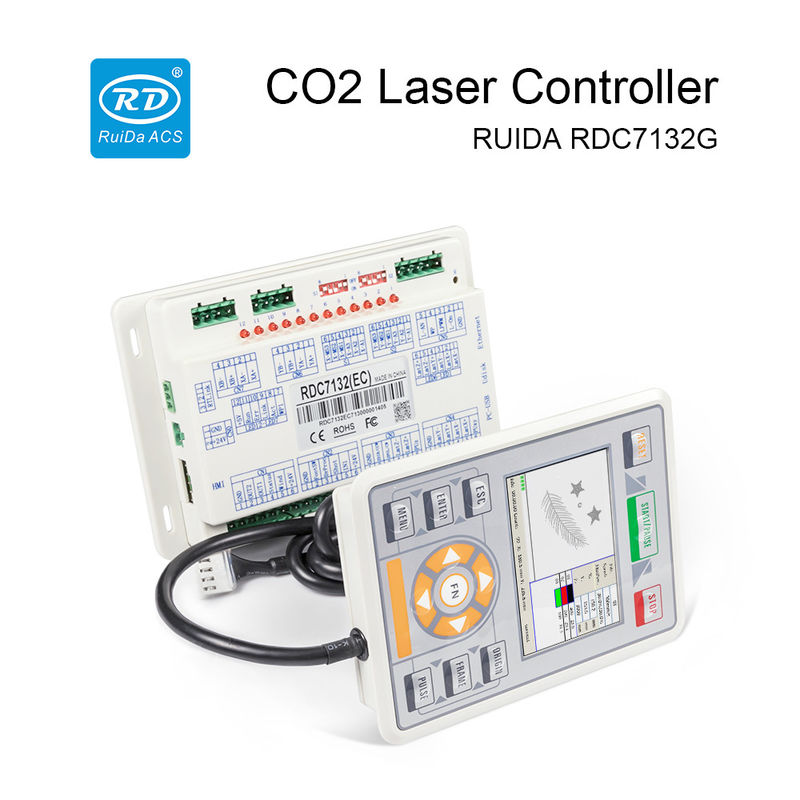

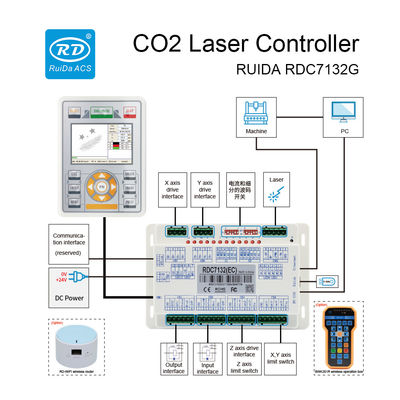

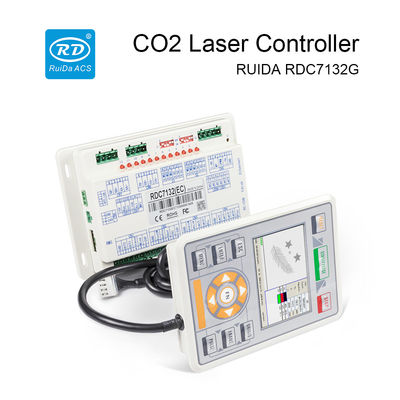

The RDC7132G system is a drive-control laser cutting and engraving control system developed by Ruida Technology, which integrates the XY axis stepper motor drive unit. Z-axis control requires external stepping drives for expansion. Supports USB2.0 and PC communication, with U disk file copy capability.
Supports PLT, DXF, AI, DST and other file formats import with display and edit functions. Includes image file import and processing capabilities.
| Parameter | Specification |
|---|---|
| Laser Source | CO2 glass tube, CO2 RF tube and UV lasers |
| Axis | 3 |
| Laser Channel | 1 |
| Drive Mode | XY axis integrated two-phase stepping driver |
| Communication | Ethernet, USB and WIFI (optional) |

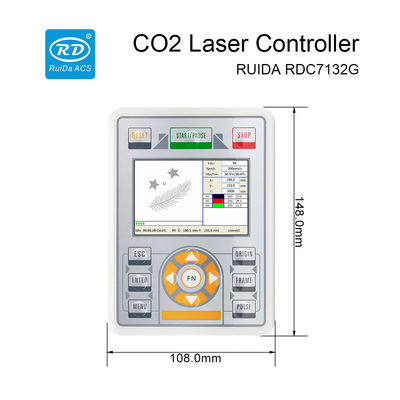

| Panel | 3.5" color character screen + keys |
| Feeding | Z axis feeding + sheet feeding |
| Encryption | Supported |
| Rotary | Y axis rotation |
| Engraving | Plane engraving, slope engraving and gray engraving |
| Software | RDWorksV8, plug-in software RDPlug, virtual printing and RDImage |
| Languages | 13 languages including English, Chinese, Spanish, German, etc. |

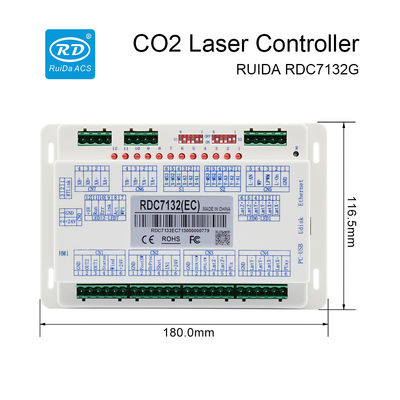

| Dimensions | Panel: 108×148×26.1mm Mainboard: 180×116.5×33.1mm |
| Accessories | Wireless handle, RD-APP and RD-WIFI |
Note: Virtual printing only supports Windows 10.
