| Brand Name: | RUIDA |
| Model Number: | RDV6332M-NET |
| MOQ: | 50 |
| Price: | Negotiable - Inquire Within |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets/day |
CO2 Laser Controller RDV6332M-NET Featuring Hybrid Cutting Capability and Network Camera for Accurate Mark Point Cutting
Optimized Description – RDV6332M-NET (Hybrid Cutting)
The RDV6332M-NET is a specialized CNC hybrid laser cutting controller developed by Ruida Technology, capable of cutting both metal and non-metal materials.
It features dual independent laser channels, a non-metal height control system, and vision-guided mark point positioning for precise cutting and engraving. The controller supports CO2 laser cutting for non-metals and fiber or hybrid laser cutting for metals, making it ideal for acrylic, wood, paper, leather, stainless steel, aluminum, and other sheet materials with high precision and efficiency.
Product feature:
Hybrid Cutting Capability – Supports both metal and non-metal cutting with high-power CO2 and fiber laser sources.
Height Control & Gas Management – Includes Z-axis height control and multi-channel auxiliary gas management for consistent cutting quality.
Precision Vision System – Equipped with an industrial network camera for mark point vision positioning, ensuring accurate alignment on printed or patterned materials.
Wide Industry Applications – Perfect for advertising, signage, packaging, decorative materials, and mixed-material fabrication, ideal for CNC hybrid laser cutting applications.
Technical Parameters:
| Parameters | RDV6332M-NET |
| Laser source | High power CO2 glass tube laser and RF laser |
| Axis | 3 |
| Laser channel | 2 |
| Communication | Ethernet, USB and WIFI (optional) |
| Panel | 3.5” color screen + keys, Linux operating system |
| Feeding | Z axis feeding, sheet feeding |
| Height controller | Metal follow height control system |
| Auxiliary gas | Support multi-channel auxiliary gas control |
| Encryption | Support |
| Onboard clock | Support |
| Firmware | Remote upgrade of mainboard and panel program |
| Camera | Cameras of 1.3 and 5 megapixels are available. Lens of 8~12 is available. |
| Light source | LED red and white circular light source |
| Cutting | Metal and non-metal mixed cutting; Mark point vision positioning cutting |
| Engraving | Plane engraving, slope engraving and gray engraving |
| Software | MetalCut, support punching, lead, bridge and micro connection, RDWorks V8 |
| Language | Including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Korean, Italian |

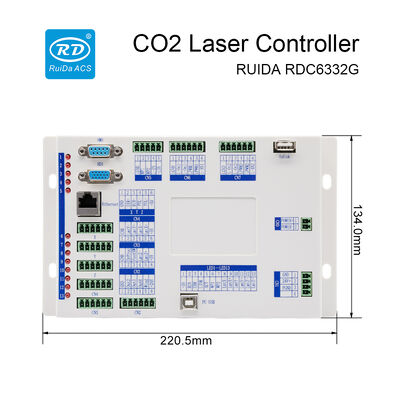

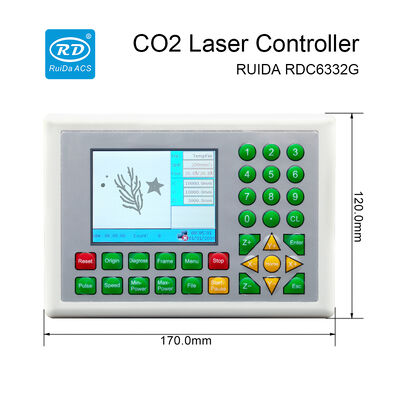

| Size | Panel: L170mm*W120mm*H38.6mm Mainboard: L220.5mm*W134mm*H29.6mm |
| Accessories | Wireless handle, RD-APP and RD-WIFI |
Our advantage:
1.Hybrid cutting with high-power CO2 lasers
2.Multi-channel gas control for precision
3.Network-camera-assisted mark point cutting
We're the go-to choice in the advertising industry for mixed material precision.
