| Brand Name: | Ruida |
| Model Number: | RDC6445GT7 |
| MOQ: | 50 |
| Price: | Negotiable - Inquire Within |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

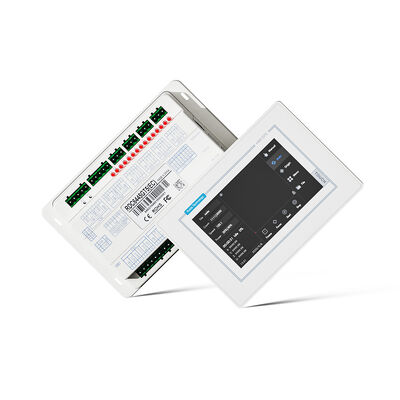

CO2 Laser Controller RDC6445GT7 Designed for Non Metal Cutting Including Leather Fabric Sign Craft Gift and Toy Applications
Discroption of RDC6445GT7 :
The RDC6445GT7 is an advanced laser engraving and cutting controller by Ruida Technology, designed for precise non-metal material processing.
It features enhanced hardware stability, high resistance to voltage and static interference, and a 5-inch color touchscreen HMI (7-inch optional) for intuitive operation. The system supports standalone operation, USB/Ethernet communication, and U-disk upgrades for mainboard and panel software.
Key Functions and Capacities
Standalone operation.
Supports 4-axis motion and two laser interfaces with multi-channel I/O control.
Compatible with single or dual laser head, synchronous processing, and ultra-wide segmented cutting.
Works with RDWorksV8 software, supporting plug-ins and virtual printing.
Ideal for non-metal CNC laser cutting of leather, fabric, signage, craft gifts, toys, and 3C products.
Advertising & Signage – Acrylic, PVC, foam board, and decorative signage cutting.
Leather & Textile – Shoes, bags, garments, and fabric pattern cutting.
Craft & Gift Production – Engraving on wood, paper, cardboard, and craft materials.
Toys & Electronics Accessories (3C Products) – Precision cutting and engraving.
Prototyping & Small Batch Manufacturing – Rapid, high-precision non-metal part processing.
Function description:
| Brand | RUIDA |
| Model | RDC6445GT7 |
| Laser source | CO2 glass tube, CO2 RF tube and UV lasers |
| Laser channel | 2 |
| Double heads asynchronous | Support |
| Communication interface | Ethernet, USB and WIFI (optional) |
| Feeding | U axis feeding, Y and U axes feeding synchronously, sheet feeding/large format segmentation feeding |
| Panel | 5” touch screen. Support screen lock and the upgrade of boot screen |
| Software | RDWorksV8, plug-in software RDPlug, virtual printing and RDPlug |
| Engraving function | Plane engraving, slope engraving and gray engraving |
