RDC6445GT5 Laser Controller – Enable A Quicker Parameters Adjustment Via An Enhancesd Touchscreen And Real-Time Monitoring

Parameter

• NameSpecification
• Laser sourceCO2 glass tube, CO2 RF tube and UV lasers
• Axis4
• Laser channel2
• Double heads asynchronousSupport
• Communication interfaceEthernet, USB and WIFI (optional)

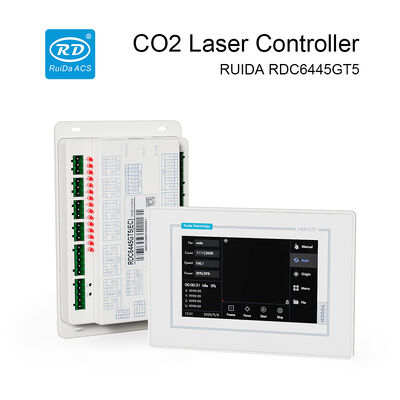

• Panel5” touch screen. Support screen lock and the upgrade of boot screen
• FeedingU axis feeding, Y and U axes feeding synchronously, sheet feeding/large format segmentation feeding
• Installment encryptionSupport
• Onboard clockSupport (the system time can be modified.)
• Firmware upgradeSupport the remote upgrade of mainboard and panel program
• Rotary processingY or U axis rotation mode is optional
• Engraving functionPlane engraving, slope engraving and gray engraving
• Resume processing after power failureSupport
• SoftwareRDWorksV8, plug-in software RDPlug, virtual printing and RDPlug
• Operating systemWinXP, Win7, Win8, Win10, 32-bit or 64-bit
• Language14 languages including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian, Japanese and Polish

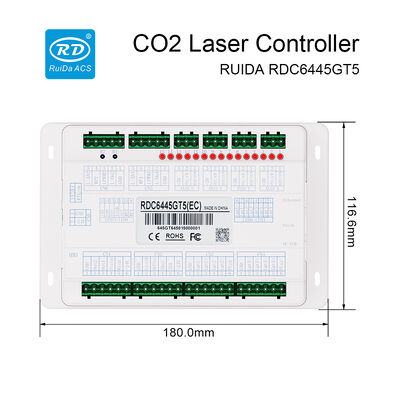

• SizePanel: L164mm*W114mm*H30.5mm Mainboard: L180mm*W116.6mm*H33.1mm

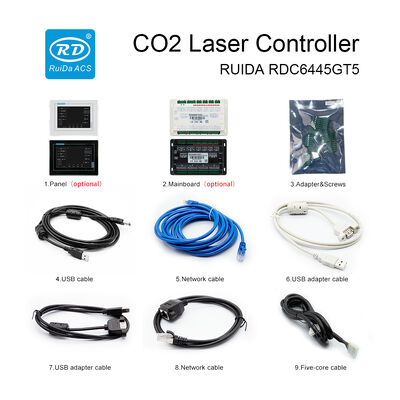

• Optional AccessoriesWireless handheld box, RD-APP and RD-WIFI

Function

• • Supports standalone operation and USB drive processing
  • Allows offline modification of file attributes, manufacturer settings, and user parameters
  • Provides working hours preview with millisecond-level accuracy
  • Real-time display of the processing path, coordinate points, and progress bar
  • Features automatic panel-based focusing, with both manual and automatic options
  • Supports manual input or automatic acquisition of docking point coordinates
  • A wide range of optional external accessories, including wireless handheld boxes, RD-APP, and RD-WIFI
  • Extended interfaces for external devices allow convenient customization to meet specific requirements
