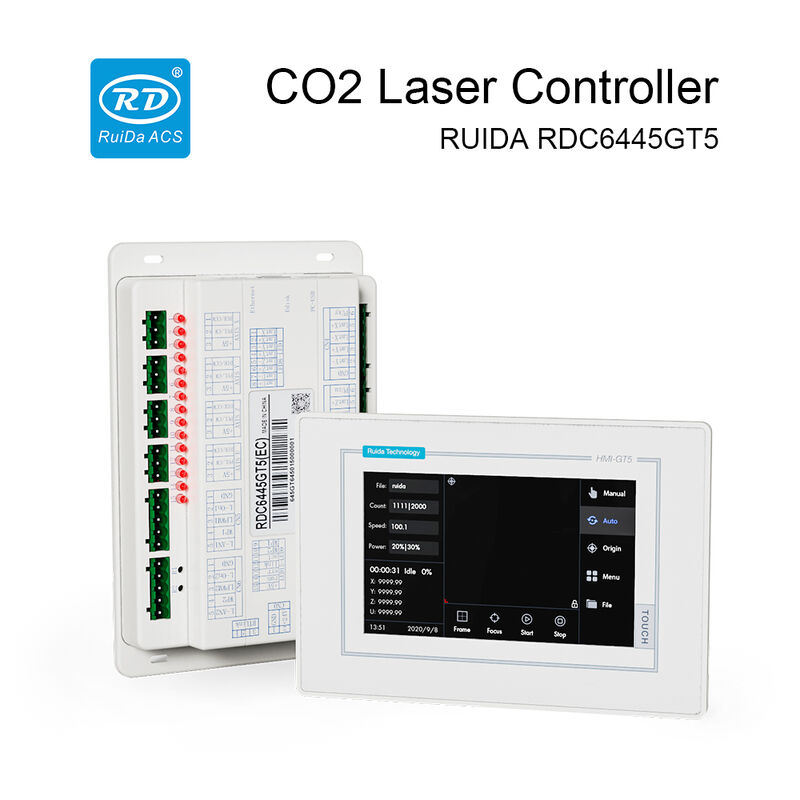

RDC6445GT5 Laser Controller – Enhanced User Interface with Touchscreen and Real-Time Monitoring

Parameter

• NameSpecification
• Laser sourceCO2 glass tube, CO2 RF tube and UV lasers
• Axis4
• Laser channel2
• Double heads asynchronousSupport
• Communication interfaceEthernet, USB and WIFI (optional)
• Panel5” touch screen. Support screen lock and the upgrade of boot screen
• FeedingU axis feeding, Y and U axes feeding synchronously, sheet feeding/large format segmentation feeding
• Installment encryptionSupport
• Onboard clockSupport (the system time can be modified.)
• Firmware upgradeSupport the remote upgrade of mainboard and panel program
• Rotary processingY or U axis rotation mode is optional
• Engraving functionPlane engraving, slope engraving and gray engraving
• Resume processing after power failureSupport

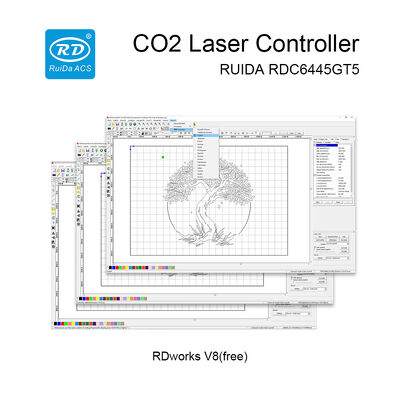

• SoftwareRDWorksV8, plug-in software RDPlug, virtual printing and RDPlug
• Operating systemWinXP, Win7, Win8, Win10, 32-bit or 64-bit
• Language14 languages including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian, Japanese and Polish

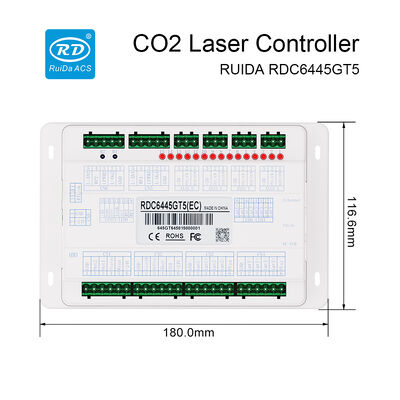

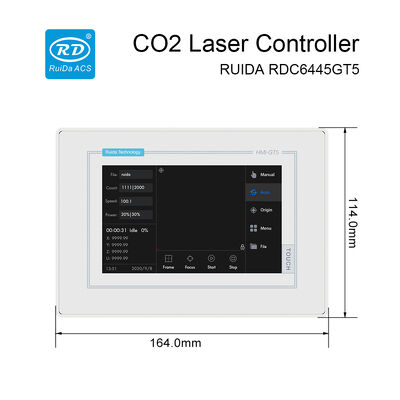

• SizePanel: L164mm*W114mm*H30.5mm Mainboard: L180mm*W116.6mm*H33.1mm

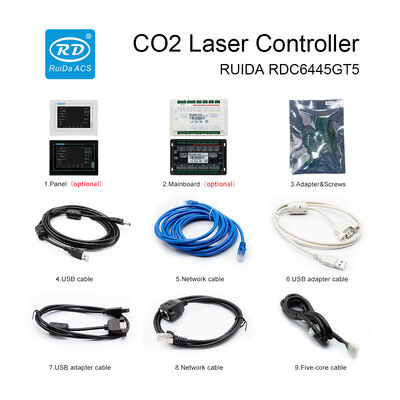

• Optional AccessoriesWireless handheld box, RD-APP and RD-WIFI

Function

• Support standalone operation and U disk processing
• Support offline modification of file attributes, manufacturer and user parameters
• Support working hours preview, accurate to millisecond
• Real-time display the processing path, coordinate point and progress bar
• Automatic focusing by panel, support manual and automatic focusing
• Support manual input or automatic acquire the coordinate of docking point
• Abundant external auxiliary accessories are optional (wireless handheld box, RD-APP and RD-WIFI)
• Extended interface for external device is convenient to customize demand
