| Brand Name: | Ruida |
| Model Number: | RDM4024V-PCI |
| MOQ: | 1 |
| Price: | Negotiable, contact us |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

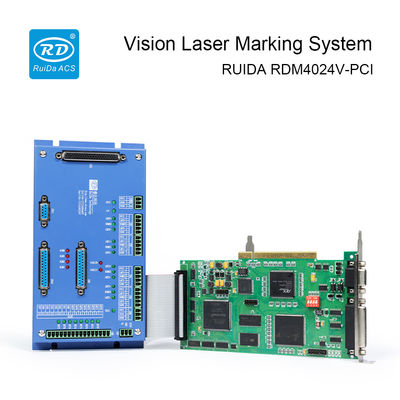

Ruida Laser Marking Controller RDM4024V PCI with 4 motion axes and 2 galvo axes supporting CO2 fiber and UV laser applications
Description Of Ruida Controller RDM4024V-PCI
This system delivers high-precision vision positioning marking, specifically designed for 3C electronics applications.

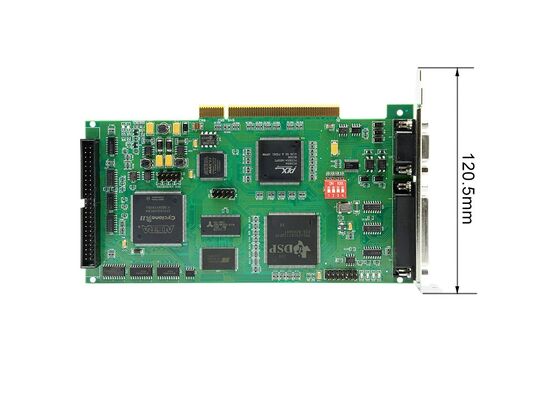

It is a PCI-interface motion controller integrating industrial cameras and advanced image processing algorithms for accurate recognition and positioning.
The controller supports 4 motion axes plus 2 galvanometer axes, and features rich laser interfaces along with multiple external I/O resources.
A complete optical tooling and illumination system ensures stable performance and consistent marking quality.
| Parameter | RDM4024V-PCI |
| Laser | CO2, fiber and UV |
| Axes | 4 motion axes + 2 galvanometer shafts |
| Communication interface | PCI |
| Axis control interface | Pulse + dir or +/- pulse, differential two-terminal output |
| Camera | 1.3, 3, 5, 12 and 20 megapixels industrial network camera are available |
| Light source system | Circular light source, OPDX and strip source are available |
| System function | Feature matching, gray matching, custom template visual positioning marking |
| Installment encryption | Support |
| Firmware upgrade | Remote upgrade of mainboard program |
| Software | RDMarkVision |
| operating system | WinXP, Win7, Win8, Win10, 32-bit or 64-bit |
| Language | Chinese and English |
Advanced graphics and image recognition enable precision vision positioning marking with intelligent target feature learning
Works with RDMarkVision software, featuring automatic correction for vision-assisted galvanometers, supporting visual positioning recognition, assembly line anti-duplicate marking, and custom motion path recognition

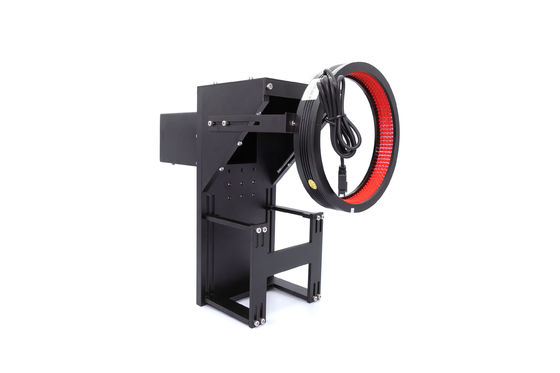

Complete optical fixture and illumination system for stable and consistent marking quality
Supports multiple visual positioning methods, including feature matching, grayscale matching, and custom templates
Compatible with CO₂, UV, and fiber laser marking systems, offering versatile material and application support
Application Fields
The system supports multiple laser types for versatile marking applications:
CO₂ Laser: Ideal for wood, leather, plastics, and paper marking
Fiber Laser: Perfect for metals and alloys such as stainless steel, aluminum oxide, copper oxide, as well as jewelry, electronic components, batteries, chargers, and switches
UV Laser: Designed for precision marking in electronics, including plastic, PVC, PCBs, cables, chips, LCD screens, glass, and food packaging
Software RDMarkVision(Free)
Support PLT, DXF, DSB, DST, SVG, BMP, JPG and other file formats import, display and edit functions, support image file import and processing. Support simplified Chinese, traditional Chinese, English and other languages
Product Certification
All products passed CE, RoHS and FCC certification, in line with safety production standards.
