Ruida Laser Controller RDM4024G-PCI Standard Marking Machine Control System

Name: Ruida Laser Controller RDM4024G-PCI Standard Marking Machine Control System
Brand: Shenzhen Ruida Technology Co., Ltd.
SKU: RDM4024G-PCI
Price: 410.00 USD
Availability: InStock

Brand Name:	Ruida
Model Number:	RDM4024G-PCI
MOQ:	1
Price:	Negotiable, contact us
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, FCC, RoHS

Laser:

CO2, Fiber And UV

Axis:

Four Motion Axes + Two Galvanometer Shafts

Communication:

PCI

Axis Control Interface:

Pulse + Dir Or +/- Pulse, Differential Two-terminal Output

System Function:

Ordinary Marking

Installment Encryption:

Support

Firmware Upgrade:

Remote Upgrade Of Mainboard Program

Software:

LaserMark

Operating System:

WinXP, Win7, Win8, Win10, 32-bit Or 64-bit

Language:

Chinese And English

Packaging Details:

Carton

Highlight:

Laser Marking Machine Control System

Laser Controller RDM4024G-PCI

PCI Standard Marking Machine Controller

Product Description

Ruida Laser Controller RDM4024G-PCI Standard Marking Card Laser Marking

Description Of Ruida Controller RDM4024G-PCI

The RDM4024G-PCI marking control card based on the PCI bus is a high-performance motion controller specially developed by Ruida Technology for laser galvanometer applications, which complies with the standard PCI specification standards. The hardware platform is based on an industrial-grade DSP + FPGA architecture, and combines excellent galvanometer control algorithms and laser synchronous control algorithm to achieve excellent trajectory control of galvanometer. The data adopts bi-directional DMA operation, thus heightening the efficiency of data communication.

Parameter	RDM4024P-PCI
Laser source	CO2, fiber and UV
Axis	Four motion axes + two galvanometer shafts
Communication	PCI
Axis control interface	Pulse + dir or +/- pulse, differential two-terminal output
System function	Ordinary marking
Software	LaserMark
Installment encryption	Support
Firmware upgrade	Remote upgrade of mainboard program
operating system	Win7, Win8, Win10, 32-bit or 64-bit
Language	Chinese and English

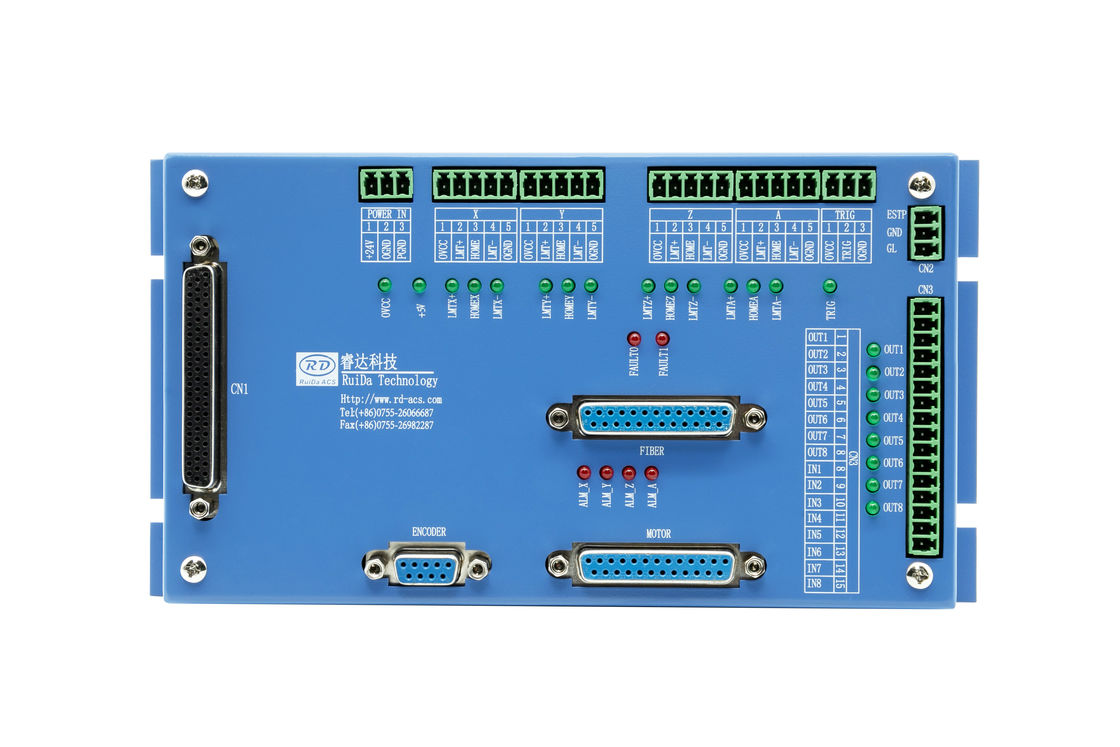

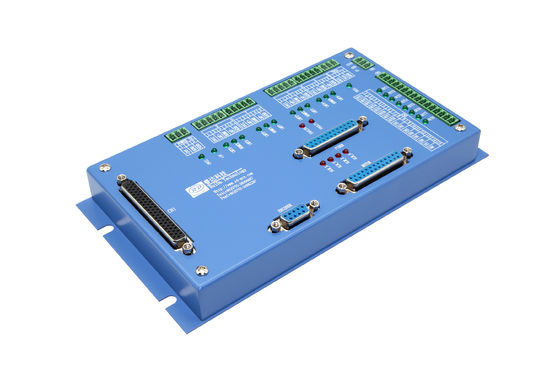

Product Photo

Ruida Laser Controller RDM4024G-PCI Standard Marking Machine Control System 0

Application Fields

Equipped with CO2 laser, suitable for marking of wood, leather, plastics and paper. Equipped with fiber laser, suitable for marking of stainless steel, aluminium oxide, copper oxide and other alloy materials, including jewelry, metal, electronic components, battery, charger, switch, etc. Equipped with UV laser, suitable for precision marking in electronic industry, including plastic, PVC,electronic circuit board, cable, chip, LCD screen, glass, food packaging, etc.

Ruida Laser Controller RDM4024G-PCI Standard Marking Machine Control System 1

Software

LaserMark

Product Certification

Ruida Laser Controller RDM4024G-PCI Standard Marking Machine Control System 2

Shipping and Payment

Ruida Laser Controller RDM4024G-PCI Standard Marking Machine Control System 3
