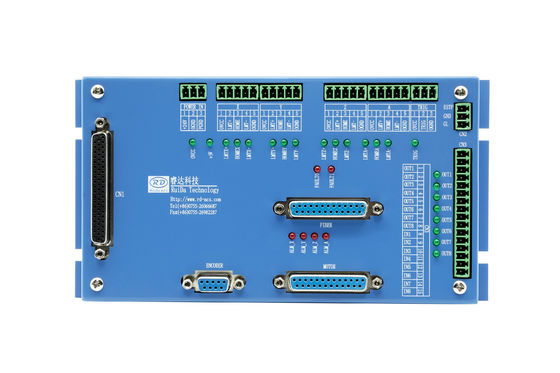

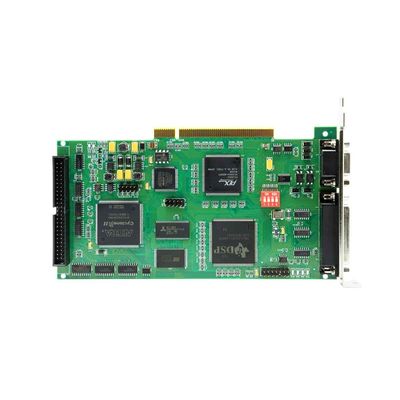

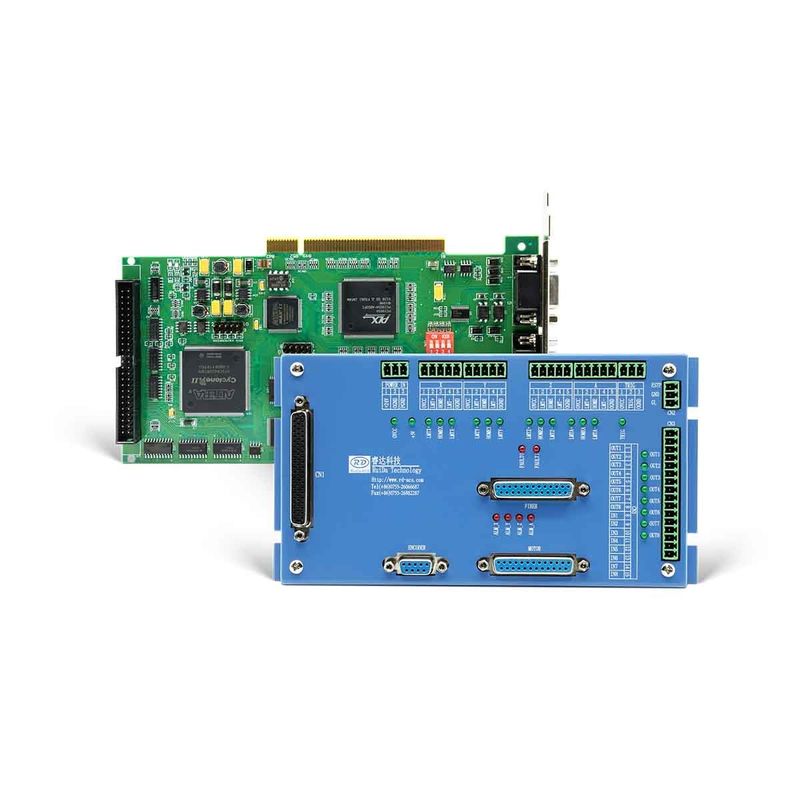

Ruida Laser Marking And Cutting Machine Controller RDM4024C-PCI Laser Controller

Name: Ruida Laser Marking And Cutting Machine Controller RDM4024C-PCI Laser Controller
Brand: Shenzhen Ruida Technology Co., Ltd.
SKU: RDM4024C-PCI
Price: 410.00 USD
Availability: InStock

Brand Name:	Ruida
Model Number:	RDM4024C-PCI
MOQ:	1
Price:	Negotiable, contact us
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, FCC, RoHS

Laser:

CO2, Fiber And UV

Axes:

4 Motion Axes + 2 Galvanometer Shafts

Communication:

PCI

Axis Control Interface:

Pulse + Dir Or +/- Pulse, Differential Two-terminal Output

System Function:

Array Marking, Intelligent Segmentation Splicing Marking, And Cutting Marking For Different Layers

Installment Encryption:

Support

Firmware Upgrade:

Remote Upgrade Of Mainboard Program

Software:

RDMarkCam

Operating System:

WinXP, Win7, Win8, Win10, 32-bit Or 64-bit

Language:

Chinese And English

Packaging Details:

Carton

Highlight:

Laser Marking Cutting Machine Controller

Laser Controller RDM4024C-PCI

RDM4024C-PCI Laser Controller

Product Description

Ruida Laser Controller RDM4024V-PCI Laser Marking controller

Description Of Ruida Controller RDM4024V-PCI

The product is specially used for large format array marking and large format splicing marking, etc. it needs the combination of motor motion control and galvanometer motion control to complete complex motion occasions. It not only has a complete galvanometer marking control function, but also has the function of multi axis motor single axis movement and multi axis interpolation movement. And has the relative laser synchronization control function.

Parameter	RDM4024V-PCI
Laser source	CO2, fiber and UV
Axis	4 motion axes + 2 galvanometer shafts
Communication interface	PCI
Axis control interface	Pulse + dir or +/- pulse, differential two-terminal output
System function	Array marking, intelligent segmentation splicing marking, and cutting marking for different layers
Installment encryption	Support
Firmware upgrade	Remote upgrade of mainboard program
Software	RDMarkCam
operating system	WinXP, Win7, Win8, Win10, 32-bit or 64-bit
Language	Chinese and English

Key Function

Ruida Laser Marking And Cutting Machine Controller RDM4024C-PCI Laser Controller 0

Application Fields

Equipped with CO2 laser, suitable for marking of wood, leather, plastics and paper. Equipped with fiber laser, suitable for marking of stainless steel, aluminium oxide, copper oxide and other alloy materials, including jewelry, metal, electronic components, battery, charger, switch, etc. Equipped with UV laser, suitable for precision marking in electronic industry, including plastic, PVC,electronic circuit board, cable, chip, LCD screen, glass, food packaging, etc.

Ruida Laser Marking And Cutting Machine Controller RDM4024C-PCI Laser Controller 1

Software

RDMarkCam

Product Certification

Ruida Laser Marking And Cutting Machine Controller RDM4024C-PCI Laser Controller 2

Shipping and Payment

Ruida Laser Marking And Cutting Machine Controller RDM4024C-PCI Laser Controller 3
