| Brand Name: | Ruida |
| Model Number: | RDV6445G |
| MOQ: | 1 |
| Price: | Negotiable, contact us |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

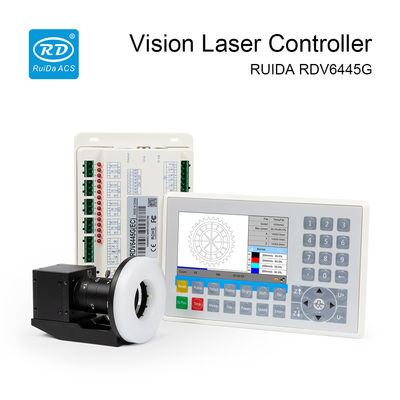

Ruida Laser Controller RDV6445G 4-Axis High-Precision Positioning Small Vision Cutting And Engraving Controller
Description Of Ruida Controller RDV6445G
| Parameter | RDV6445G |
| Adapted laser | CO2 glass tube, CO2 RF tube and UV lasers |
| Motion axes | 4 |
| Laser channels | 2 |
| Encryption | Support |
| Communication | Ethernet, USB and WIFI(optional) |

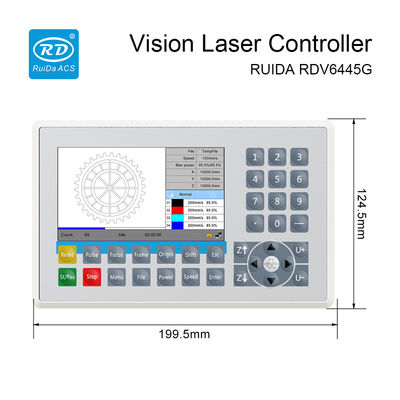

| Panel | 5-inch color screen+keys |
| Axis control interface | Pulse + dir or +/- pulse, single-ended output |
| Feeding | U axis feeding/ Y and U axes feeding synchronously, sheet feeding/large format segmentation feeding |
| Firmware | Support remote upgrade of panel and mainboard |
| Onboard clock | Not support |
| Camera | Cameras of 1.3, 3 and 5 megapixels are available; lens of 8~12mm, 35mm and 50mm are available. |
| Light source system | LED red and white circular light source |
| Cutting function | Feature positioning, Mark point positioning |
| Engraving function | Plane engraving, slope engraving and gray engraving |
| Resume processing after power failure | Support |
| Software | RDVision,RDCMarkVision ,RDWorksV8,RDImage |
| Operating system | WinXP, Win7, Win8, Win10, 32-bit or 64-bit |
| Language | 13 languages including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian and Japanese |
| Size | Panel: L199.5mm*W124.5mm*H42.1mm Mainboard: L180mm*W116.6mm*H33.1mm |
| Operating system | WinXP, Win7, Win8, Win10, 32-bit or 64-bit |
Key Function
(1) Fully supports all standard controller functions, ensuring seamless system integration and stable industrial performance
(2) High-precision positioning with feature recognition and Mark point auxiliary positioning for enhanced accuracy in automated laser processing
(3) Supports Mark point vision cutting, irregular material contour matching, projection cutting, and advanced vision-guided cutting solutions for high-accuracy production environments
Application Fields
Focus on vision cutting in clothing, leather, digital cropping, advertising, printing and 3C industries.
Software
RDVision,RDCMarkVision ,RDWorksV8,RDImage
