| Brand Name: | Ruida |
| Model Number: | RDD6612U-DFM |
| MOQ: | 50 |
| Price: | Negotiable - Inquire Within |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Attribute | Value |
|---|---|
| Brand | RUIDA |
| Model | RDD6612U-DFM |
| Axis | 12 |
| Laser Channel | 8 |
| Laser source | CO2 glass tube, CO2 RF tube, and UV lasers |
| Onboard clock | Support (support the modification of time) |
| Firmware | Remote upgrade of panel and mainboard program |
| Camera | 18 megapixels SLR camera |
| Cutting | Ordinary cutting; Large-format visual cutting, Mark point vision and projection cutting |
| Software | RDWorksV8, UnionLaser, RDVisionWorks |

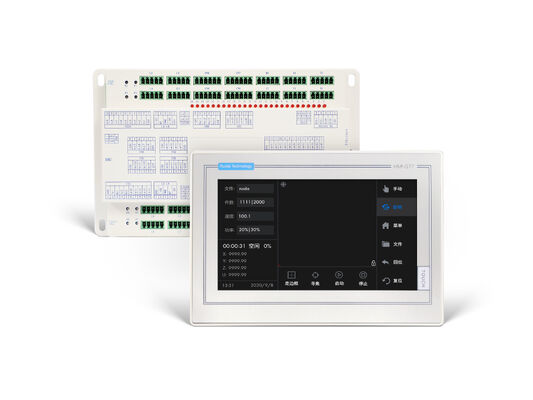

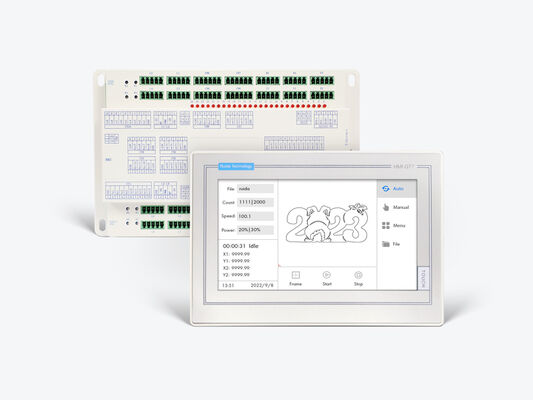

The RDC6612U(-DFM) from Ruida Technology is a high-performance dual X/Y coordinate laser controller. With asynchronous cutting, multi-head synchronization (up to 4 heads per system), and automatic collision prevention, it delivers precise, efficient, and safe cutting. The RDC6612U-DFM adds panoramic vision for enhanced accuracy, making it ideal for garment, leather, and fabric industries, especially for large graphics and high-volume production.
Key Features:
Dual X/Y coordinate control for precise cutting

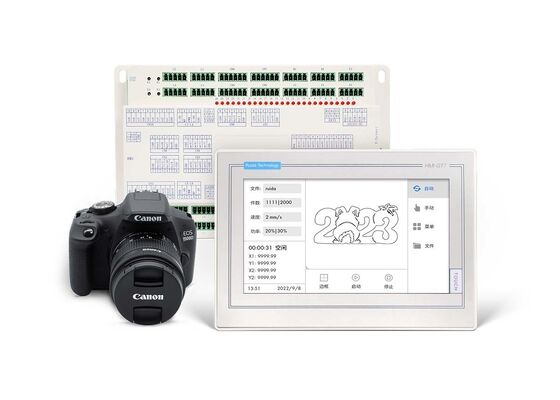

Panoramic vision (DFM model) for enhanced accuracy
Supports up to 4 laser heads per system for synchronous cutting
Automatic collision prevention and optimized task distribution
Perfect for garment, leather, and fabric applications
