| Brand Name: | Ruida |
| Model Number: | RDC6445GT5 |
| MOQ: | 1 |
| Price: | Negotiable, contact us |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Ruida RDC6445GT5 CO2 Laser Equipment Control System Touch Screen for Laser Cutting and Engraving Performance
Description of Ruida laser controller RDC6445GT5
T

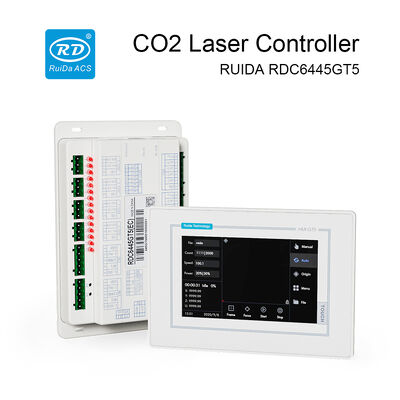

The RDC6445GT5 is the latest-generation laser cutting and engraving controller developed by Ruida Technology for CO₂ laser machines and laser processing equipment. The system features improved hardware stability, strong anti-high voltage and anti-static protection, ensuring reliable performance in industrial environments.
Equipped with a 5-inch color touch screen HMI, it offers a user-friendly interface, intuitive operation, and powerful control functions, making it ideal for laser cutting machines, laser engraving systems, and industrial non-metal laser applications.
| Parameter | RDC6445GT5 |
| Adapted laser | CO2 glass tube, CO2 RF tube and UV lasers |
| Axis | Four |
| Laser Interface | Two |
| Double heads asynchronous | Support |
| Feeding | U axis feeding, Y and U axes feeding synchronously, sheet feeding/large format segmentation feeding |
| Communication | Ethernet, USB and WIFI |

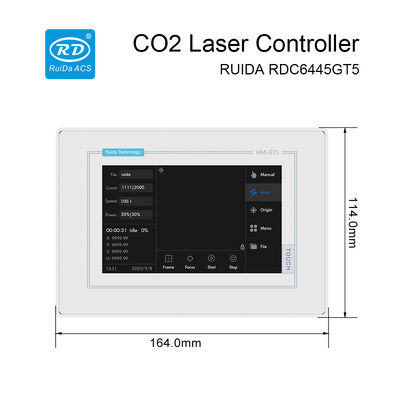

| Panel | 5'' touch screen. Support screen lock and the upgrade of boot screen |
| Rotary processing | Y or U axis rotation mode is optional |
| Installment encryption | Support |
| Onboard clock | Support (the system time can be modified.) |
| Firmware upgrade | Support the remote upgrade of mainboard and panel program |
| Engaving | Plane engraving, slope engraving and gray engraving |
| Resume processing after power failure | Support |
| Software | RDWorksV8, plug-in software RDPlug, virtual printing and RDPlug |
| Operating system | WinXP, Win7, Win8, Win10, 32-bit or 64-bit |
| Language | Including Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, and Italian |
| Operating system | WinXP, Win7, Win8, Win10, 32-bit or 64-bit |
| Accessories | Wireless handle, RD-APP and RD-WIFI |
Key Function
Standalone & U-Disk Operation
Supports offline laser cutting and engraving with file transfer via USB flash drive.
Offline Parameter Editing
Allows modification of file attributes, machine parameters, and user settings directly on the controller.
Job Time Preview
Provides accurate processing time estimation to improve laser cutting efficiency.
Real-Time Processing Display
Displays processing path, coordinates, and progress in real time.
Auto & Manual Focus
Supports automatic and manual focus control for CO₂ laser cutting and engraving machines.
Docking Point Positioning
Supports manual input or automatic acquisition of docking point coordinates.
Optional Smart Accessories
Compatible with wireless handheld controller, RD-APP, and RD-WIFI.
Expandable Interfaces
Supports external device integration for industrial laser control systems.
Application Fields
Mainly focusing on non-metal laser cutting and engraving, including fabric, leather, wood, paper, acrylic, PMMA, rubber&plastics, smart phone accessory, ect.
Software
RDWorksV8(free), plug-in software RDPlug, virtual printing and RDPlug
