| Brand Name: | Ruida |
| Model Number: | RDC6332G |
| MOQ: | 1 |
| Price: | Negotiable, contact us |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

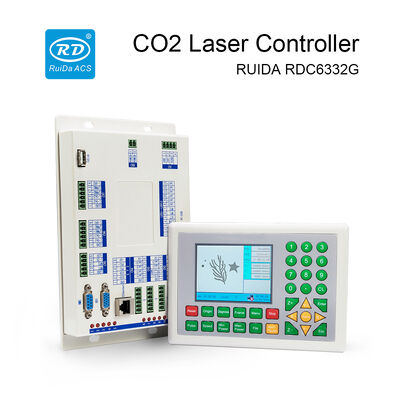

Ruida CO2 Laser Controller RDC6332G with 3Axis Motion Control for Laser Machine Operation
Description Of Ruida Controller RDC6332G
The RDC6332G is a high-performance laser cutting and engraving controller developed by Ruida Technology for CO₂ laser machines. It features stable motion control, strong anti-high voltage and anti-static protection, large file storage, and dual-channel digital/analog laser power control. The system runs on a LINUX platform and supports USB and Ethernet communication, multiple I/O interfaces, and secure hardware encryption for reliable laser processing applications.
| Parameter | RDC6332G |
| Adapted laser | CO2 glass tube, CO2 RF tube and UV lasers |
| Axes | 3 |
| Laser channel | 2 |
| Encryption | Support |
| Communication | Ethernet, USB and WIFI |
| Panel | 3.5-inch color screen+keys; Linux operating system |
| Feeding | Z axis feeding, sheet feeding |
| Firmware | Support remote upgrade of panel and mainboard program |
| Onboard clock | Support |
| Rotary processing | Y axis rotation |
| Engraving function | Plane engraving, slope engraving and gray engraving |
| Resume processing after power failure | Support |
| Software | RDCWorksV8, plug-in software RDPLUG, virtual printing and RDImage |
| Operating system | WinXP, Win7, Win8, Win10, 32-bit or 64-bit |
| Language | Including Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, and Italian |

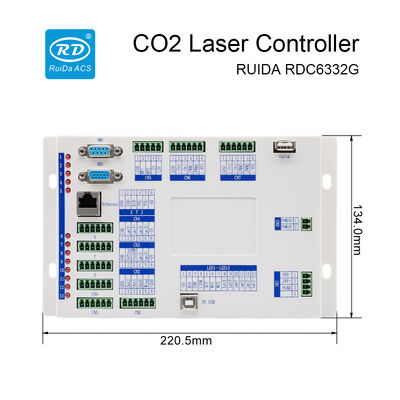

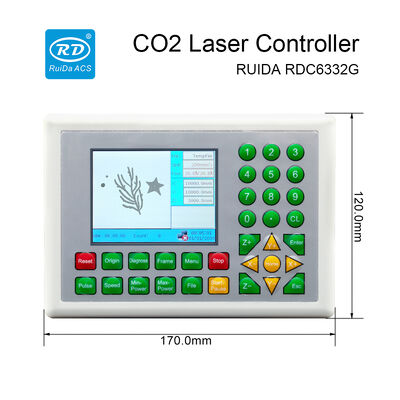

| Size | Panel: L170mm*W120mm*H38.6mm Mainboard: L220.5mm*W134mm*H29.6mm |
| Accessories | Wireless handle, RD-APP and RD-WIFI |
Key Function
(1) Standalone & USB-Direct Operation
Supports fully autonomous standalone operation and direct USB drive file processing, no extra software or device required
(2) Offline Metadata & Parameter Customization
Enables offline modification of file attributes, manufacturer information, and user-defined parameters without network connection
(3) Millisecond-Precise Work Cycle Preview
Previews total working hours with millisecond-level precision for full production schedule control
(4) Real-Time Processing Visualization
Displays real-time processing path, coordinate points, and dynamic progress bar for full operational transparency
(5) Dual-Mode Smart Focus System
Features panel-controlled automatic focusing, with flexible manual focus override option
(6) Flexible Docking Point Positioning
Supports both manual coordinate input and automatic docking point position acquisition for versatile setup
(7) Expandable Accessory Ecosystem
Offers optional premium external accessories: wireless handheld controller, RD-APP mobile control, and RD-WIFI module
(8) Open Architecture for Customization

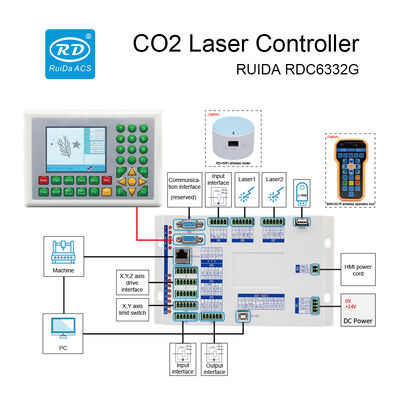

Provides extended interfaces for external device connection, enabling easy customization for specialized requirements
Application Fields
Focus on non-metal cutting, suitable for leather, fabric, sign, craft gift, toy and 3C application fields
Software

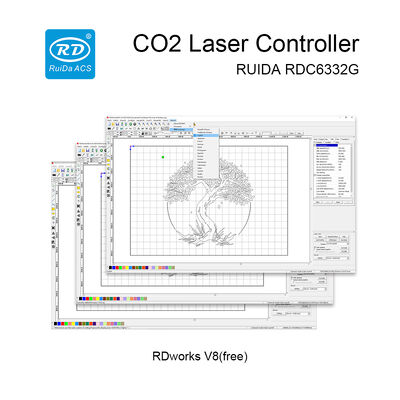

RDWorksV8, plug-in software RDPlug, virtual printing and RDPlug
