| Brand Name: | Ruida |
| Model Number: | RDC5445G |
| MOQ: | 1 SET |
| Price: | USD220/SET-USD280USD/SET |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets/day |
RDC6445G CO2 Laser Controller with User Friendly Interface 5 Inch Color Screen and Support for Ethernet USB WIFI Communication
Description Of Ruida RDC6445G CO2 Laser Controller
The RDC6445G system as the lastest generation of laser cutting and engraving controller, provides enhanced hardware stability and improved resistance to high voltage and static electricity. It has more user-friendly interface, supporting 5-inch color screen with intuitive operation experience. The controller supports versatile commmunication including Ethernet, USB and WIFI. It features advanced motion control, large file storage and more compatible U flash disk driver. And the system supports multiple processing options including fixed single or double laser head processing, double head synchronous processing and ultra-wide segmentation cutting. RDC6445G focuses on non-metal cutting, suitable for leather, fabric, sign, craft gift, toy and 3C fields.
|
Parameter |
RDC6445G |
|
RDC5445G |
CO2 glass tube, CO2 RF tube and UV lasers |
|
Axis |
4 |
|
Laser channel |
2 |
|
Double heads synchronous |
Support |
|
Communication |
Ethernet, USB and WIFI |
|
Panel |
5-inch color+keys |
|
Feeding |
U axis feeding, Y and U axes feeding sychronously, sheeting feeding, large format segmentation feeding |
|
Encryption |
Support |
| Onboard clock | Not support |
| Firmware upgrade | Support the remote upgrade of mainboard and panel program |
|
Rotary |
Y or U axis rotation |
| Engraving function | Plane engraving, slope engraving and gray engraving |
| Resume processing after power failure | Support |
| Operating system | WinXP, Win7, Win8, Win10, 32-bit or 64-bit |
|
Software |
RDWorksV8, plug-in software RDPlug, virtual printing and RDImage |
|
Language |
Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian ans Japanese |

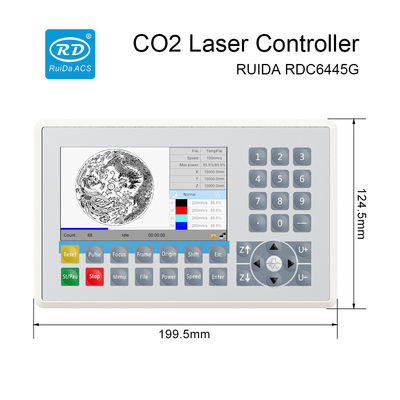

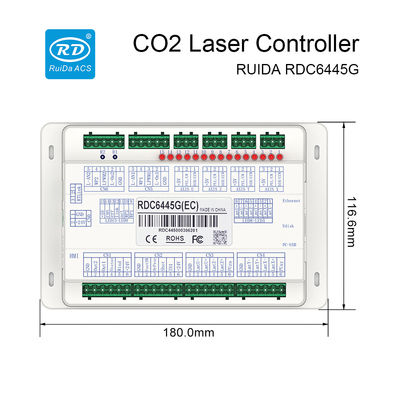

| Size | Panel: L199.5mm*W124.5mm*H42.1mm Mainboard: L180mm*W116.6mm*H33.1mm |
|
Accessories |
Wireless handle, RD-APP and RD-WIFI |
Key Function
(1) Support standalone operation and U disk processing
(2) Support offline modification of file attributes, manufacturer and user parameters
(3) Support working hours preview, accyrate to millisecond
(4) Real-time display the processing path, coordinate point and progress bar
(5) Automatic focusing by panel, support manual and automatic focusing
(6) Support manual input or automatic acquire the coordinate of docking point
(7) Extended interface for external device is convenient to customize demand
Our advantage
(1) User-friendly interface
(2) High control precision
(3) Versatile compatibility
(4) Robust performance
(5) Strong communication support
(6) Integration with software
Software RuidaV8(free)
(1) Vector formats: dxf, ai, plt, dst, dsb, etc.
(2) Bitmap formats: bmp, jpg, gif, png, mng, etc.
(3) Runs on Windows XP and above operating systems, Windows XP is recommended

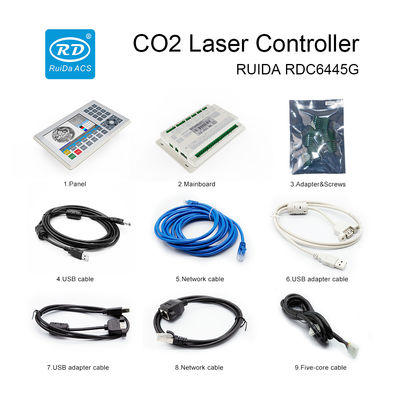

Package list
