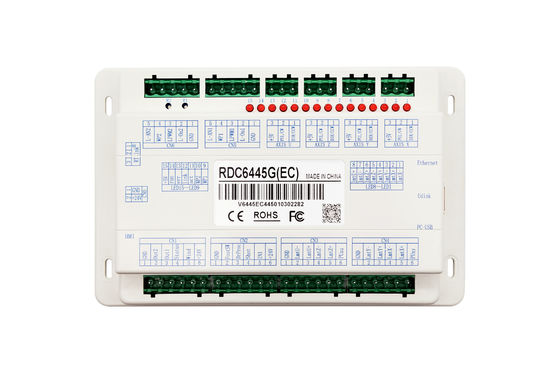

RUIDA RDC6445G CO2 Laser Controller With 4 Motion Axes And Multi-Channel Control For Versatile Processing

RUIDA RDC6445G CO2 Laser Controller With 4 Motion Axes And Multi-Channel Control For Versatile Processing


Discroption of RDC6445G:

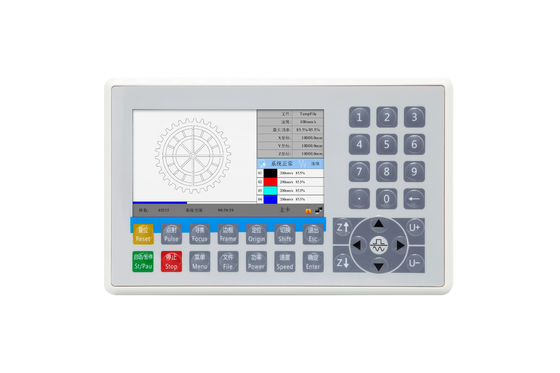

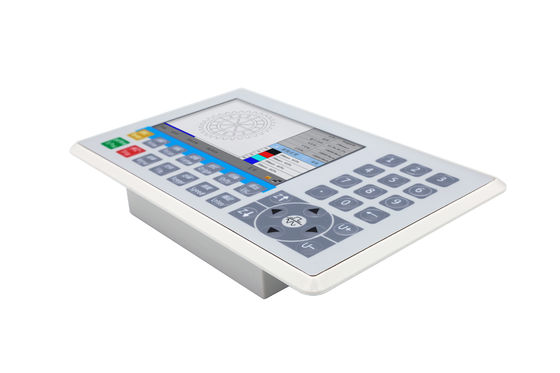

Ruida Technology's RDC6445G marks a new era in laser engraving and cutting with its advanced control system. It offers improved hardware stability and enhanced resistance to high voltage and static electricity, all while providing a user-friendly interface on a 5-inch color screen. This system not only delivers powerful motion control functions and large file storage but also supports a dual-channel adjustable laser power control interface, U flash disk drivers, and multi-channel IO control. It facilitates communication with PCs via Ethernet and USB, and is capable of handling fixed single or double laser head processing, dual head synchronous processing, and ultra-wide segmentation cutting. The extended model further enhances its capabilities with features like mark point vision positioning cutting, large format panoramic visual cutting, projection cutting, and dual head asynchronous processing.


Product feature:

1.Support standalone operation and U disk processing.
2.Support modifies the file attributes, manufacturer and user parameters by panel.
3.Support working hours preview, accurate to millisecond.
4.Real-time display the processing path, coordinate point and progress bar.
5.Automatic focusing by panel, support manual and automatic focusing.
6.Extended interface for external device is convenient to customize demand.
7.Focus on non-metal cutting, suitable for leather, fabric, sign, craft gift, toy and 3C application fields.


Software RDworks V8(Free)

Support PLT,DXF,AI,DST and other file formats import,display and edit functions,support image file import and processing.


Technical Parameters:


Note: Virtual printing only supports Win10.
