Ruida CO2 Laser Controller RDC6445GT7 For Textile Engraving Cutting Machine Standalone

Name: Ruida CO2 Laser Controller RDC6445GT7 For Textile Engraving Cutting Machine Standalone
Brand: Shenzhen Ruida Technology Co., Ltd.
SKU: RDC6445GT7
Price: 410.00 USD
Availability: InStock

Brand Name:	Ruida
Model Number:	RDC6445GT7
MOQ:	50
Price:	Negotiable - Inquire Within
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Mainland China

Certification:

CE FCC ROHS

Brand:

RUIDA

Axis:

Laser Source:

CO2 Glass Tube, CO2 RF Tube And UV Lasers

Feeding:

U Axis Feeding/ Y And U Axes Feeding Synchronously, Sheet Feeding/large Format Segmentation Feeding

Double Heads Synchronous:

Support

Communication:

Ethernet, USB And WIFI (optional)

Encryption:

Support

Engraving:

Plane Engraving, Slope Engraving And Gray Engraving

Rotary:

Y Or U Axis Rotation Mode Is Optional

Software:

RDWorksV8, Plug-in Software RDPlug, Virtual Printing And RDPlug

Packaging Details:

Carton Packing

Highlight:

Standalone CO2 Laser Controller

Textile Cutting Machine Laser Controllers

Laser Engraving Machine Controller

Product Description

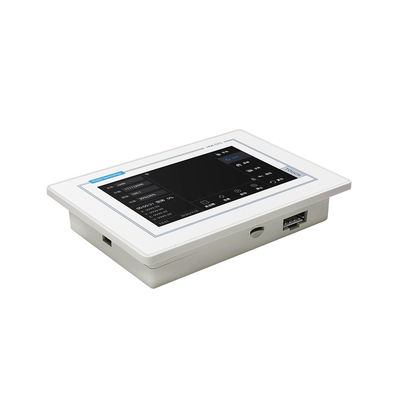

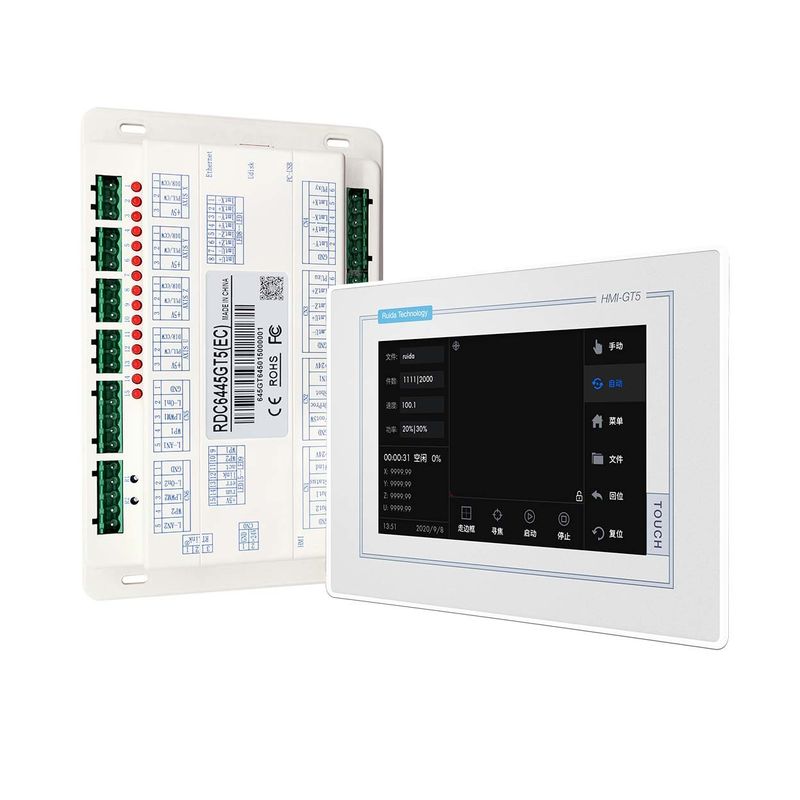

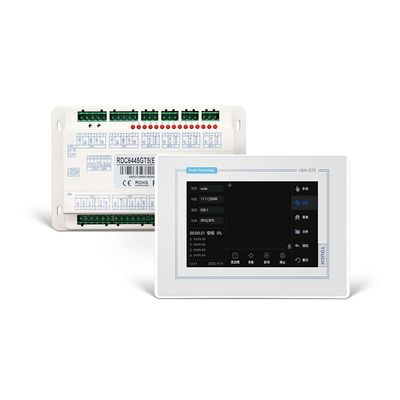

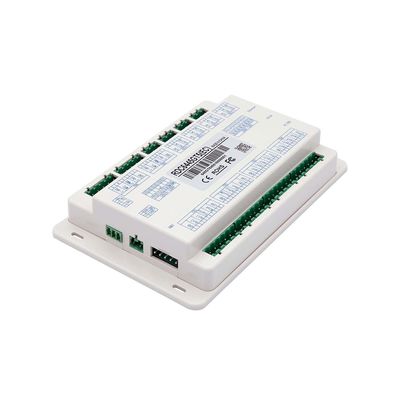

7-inch Color Touchscreen HMI CO2 Laser Controller RDC6445GT7 for Textile Engraving-Cutting Machine by Ruida

Discroption of RDC6445GT7 :

The RDC6445GT7 is an advanced laser engraving and cutting control system developed by Ruida Technology. It features enhanced hardware stability, improved resistance to high voltage and static interference. The system is equipped with a 5-inch color touchscreen HMI, providing an intuitive user interface and a range of powerful functionalities for seamless operation.

Key Functions and Capacities

Standalone operation.

Support USB and Ethernet communication and U flash disk.5” and 7” touch screen are optional. Support the upgrade of panel program and boot screen by users.

Support the upgrade of mainboard and panel program by u flash disk.

Support 4 motion axes, two laser interfaces and multi-channel general l0 input and output.

Support fixed single/double laser head processing, double heads synchronous processing and ultra-wide segmentation cutting processing.

Worked with independent application software RDWorksV8, support plug-in software and virtual printing.

Focus on non-metal cutting, suitable for leather, fabric, sign, craft gift, toy and 3C application fields.

Function description:

Brand	RUIDA
Model	RDC6445GT7
Laser source	CO2 glass tube, CO2 RF tube and UV lasers
Laser channel	2
Double heads asynchronous	Support
Communication interface	Ethernet, USB and WIFI (optional)
Feeding	U axis feeding, Y and U axes feeding synchronously, sheet feeding/large format segmentation feeding
Panel	5” touch screen. Support screen lock and the upgrade of boot screen
Software	RDWorksV8, plug-in software RDPlug, virtual printing and RDPlug
Engraving function	Plane engraving, slope engraving and gray engraving

Ruida CO2 Laser Controller RDC6445GT7 For Textile Engraving Cutting Machine Standalone 0

Ruida CO2 Laser Controller RDC6445GT7 For Textile Engraving Cutting Machine Standalone 2
