RDC6585G CO2 Laser Controller For Multi-Head Synchronous Cutting And Engraving With Automatic Blow And Focusing Function

Name: RDC6585G CO2 Laser Controller For Multi-Head Synchronous Cutting And Engraving With Automatic Blow And Focusing Function
Brand: Shenzhen Ruida Technology Co., Ltd.
SKU: RDC6585G
Price: 410.00 USD
Availability: InStock

Brand Name:	RUIDA
Model Number:	RDC6585G
MOQ:	50
Price:	Negotiable - Inquire Within
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Detail Information

Product Description

Detail Information

Place of Origin:

Mainland China

Certification:

CE FCC ROHS

Brand:

RUIDA

Laser Source:

CO2 Glass Tube, CO2 RF Tube And UV Lasers

Axis:

Feeding:

U Axis Feeding/ Y And U Axes Feeding Synchronously, Sheet Feeding/large Format Segmentation Feeding

Laser Channel:

Panel:

5” Color Screen + Keys

Encryption:

Support

Multi-head Synchronous:

Support Double, Three, Four, Five And Six Heads Synchronous

Rotary:

Y Axes Rotation

Engraving:

Plane Engraving, Slope Engraving And Gray Engraving

Packaging Details:

Carton Packing

Supply Ability:

100 sets/day

Highlight:

Multi-Head CO2 Laser Controller

Automatic Blow CO2 Laser Controller

RDC6585G CO2 Laser Controller

Product Description

RUIDA RDC6585G CO2 Laser Controller For Multi-Head Synchronous Cutting And Engraving With Automatic Blow And Focusing Function

Discroption of RDC6585G:

The RDC6585G system, developed by Ruida Technology, represents the latest generation of multi-head synchronous laser control systems. This system boasts a user-friendly interface on a 5-inch color screen, offering enhanced functionality and a more intuitive operation experience. Equipped with various general and specialized IO control interfaces along with numerous external interconnection options, the controller delivers superior motion control capabilities. It is capable of handling both laser processing and adhesive spraying processes independently, showcasing its versatility and precision in advanced manufacturing applications.

Why Choose US:

1.Enhanced Efficiency with Intelligent Synchronization
2.Flexible Laser Head Management
3.Customizable Data Output and Laser Settings
4.Automated Feeding and Lifting Capabilities
5.Real-Time Monitoring
6.Advanced Automation and Safety Features

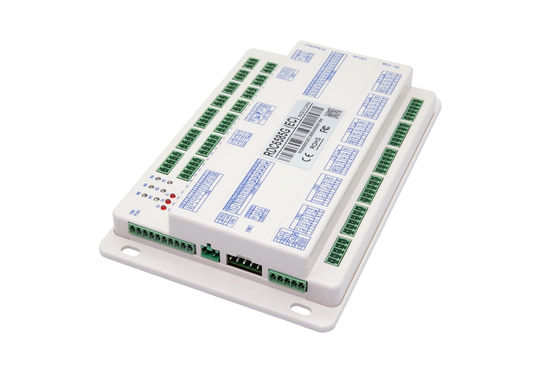

RDC6585G CO2 Laser Controller For Multi-Head Synchronous Cutting And Engraving With Automatic Blow And Focusing Function 0

Software RDworks V8(Free)

Support PLT,DXF,AI,DST and other file formats import,display and edit functions,support image file import and processing.

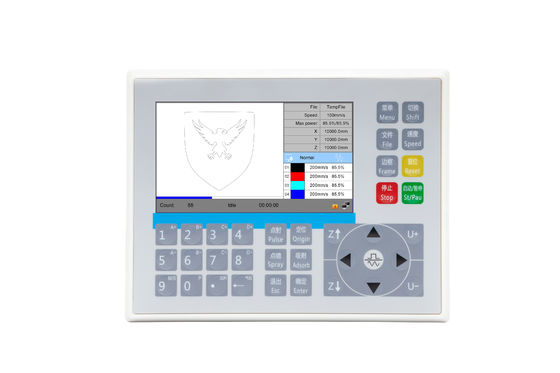

RDC6585G CO2 Laser Controller For Multi-Head Synchronous Cutting And Engraving With Automatic Blow And Focusing Function 1

Technical Parameters:

Parameters	RDC6585G
Laser source	CO2 glass tube, CO2 RF tube and UV lasers
Axis	8
Laser channel	6
Communication	Ethernet, USB and WIFI (optional)
Panel	5” color screen + keys
Feeding	U axis feeding/ Y and U axes feeding synchronously, sheet feeding/large format segmentation feeding
Encryption	Support
Onboard clock	Not Support
Firmware	Support the remote upgrade of mainboard and panel program
Multi-head synchronous	Support double, three, four, five and six heads synchronous
Rotary	Y axis rotation
Engraving	Plane engraving, slope engraving and gray engraving
Processing	Support resume processing after power failure
Software	RDWorksV8, plug-in software RDPlug, virtual printing and RDImage
Language	Including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian
Size	Panel: L180W140H42.1mm Mainboard: L211.3W136H33.1mm
Accessories	Wireless handle, RD-APP and RD-WIFI

Note: Virtual printing only supports Win10.

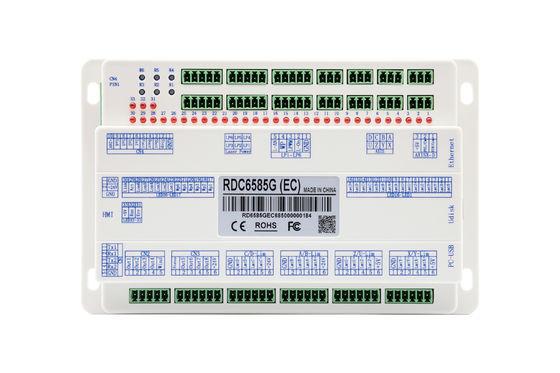

RDC6585G CO2 Laser Controller For Multi-Head Synchronous Cutting And Engraving With Automatic Blow And Focusing Function 2
