| Brand Name: | Ruida |
| Model Number: | RDC6445GT5 |
| MOQ: | 50 |
| Price: | Negotiable - Inquire Within |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, |

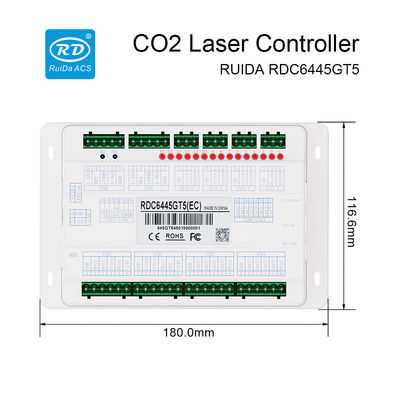

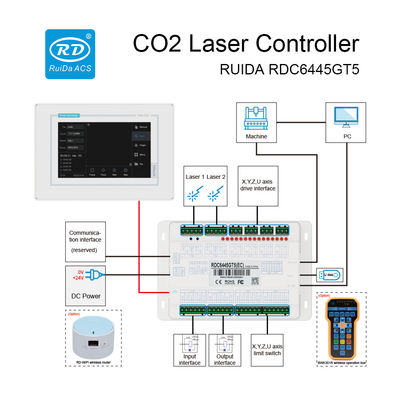

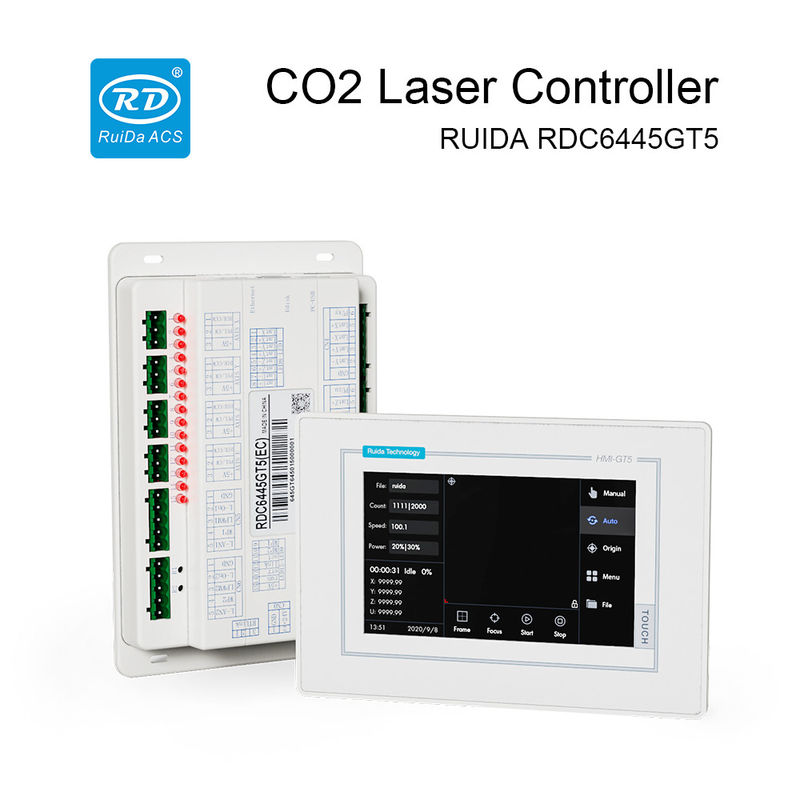

Ruida RDC6445GT5 Powerful CO2 Laser Controller for Textile Engraving-Cutting Machine
Discroption of RDC6445GT5 :
The RDC6445GT5 system is the latest generation of laser engraving/cutting control system developed by Ruida Technology. The control system has better hardware stability, anti-high voltage and anti-static characteristics. The HMI based on the 5-inch color touch screen, with friendly operation interface and more powerful functions.
• Automatic focusing by panel, support manual and automatic focusing
Function description:
| Brand | RUIDA |
| Model | RDC6445GT5 |
| Laser source | CO2 glass tube, CO2 RF tube and UV lasers |
| Laser channel | 2 |
| Double heads asynchronous | Support |
| Communication interface | Ethernet, USB and WIFI (optional) |
| Feeding | U axis feeding, Y and U axes feeding synchronously, sheet feeding/large format segmentation feeding |

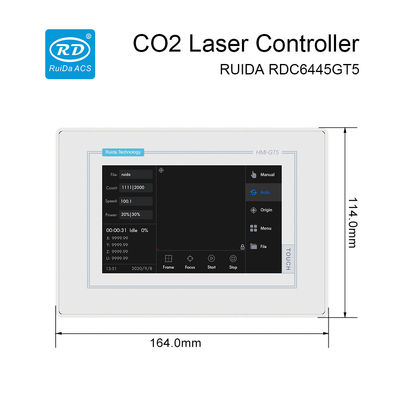

| Panel | 5” touch screen. Support screen lock and the upgrade of boot screen |
| Software | RDWorksV8, plug-in software RDPlug, virtual printing and RDPlug |
| Engraving function | Plane engraving, slope engraving and gray engraving |
.
