| Brand Name: | RUIDA |
| Model Number: | RDC5121G |
| MOQ: | 50 |
| Price: | Negotiable - Inquire Within |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets/day |

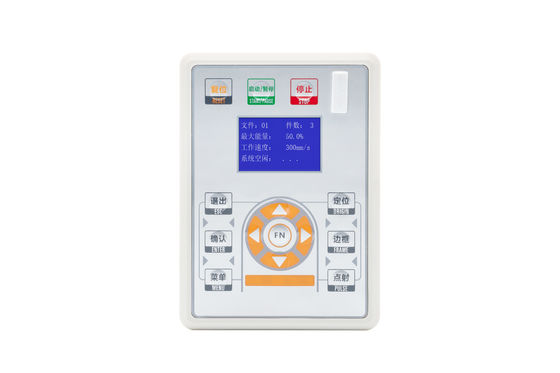

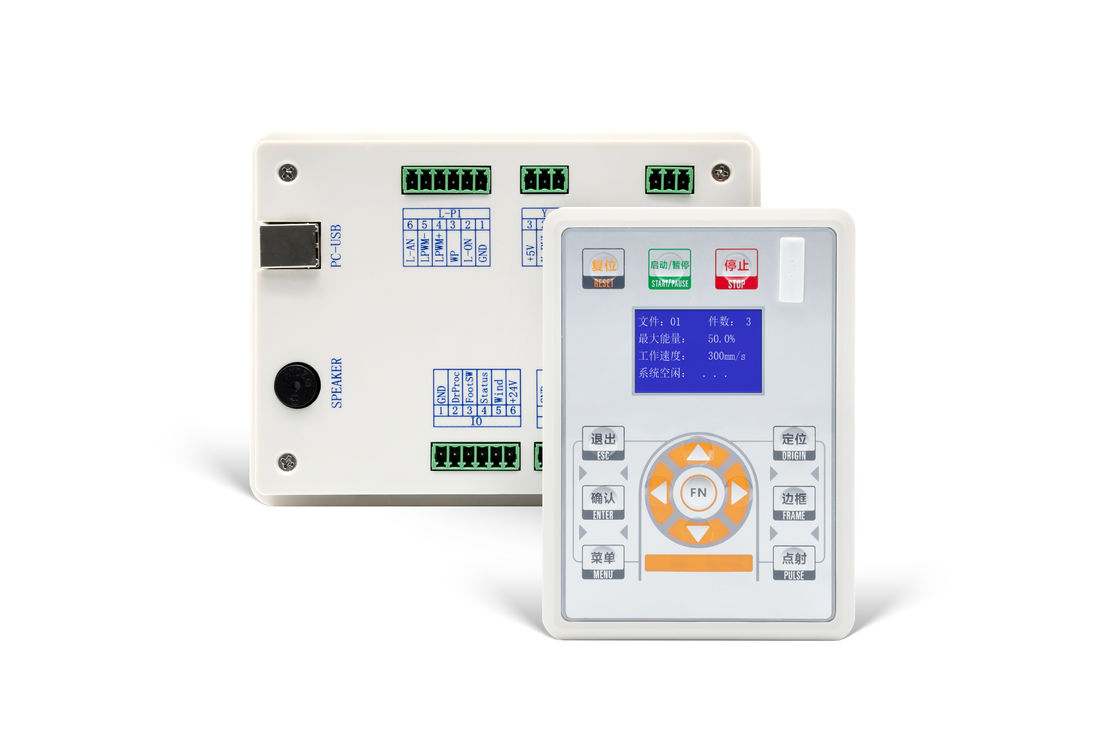

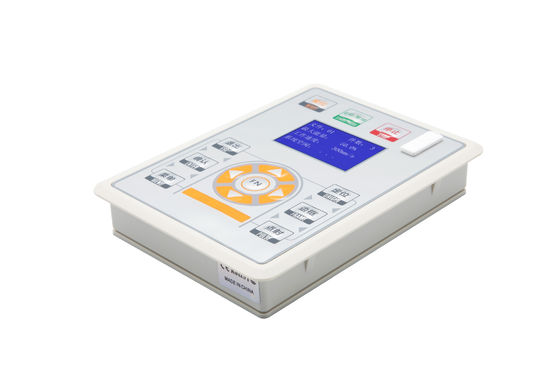

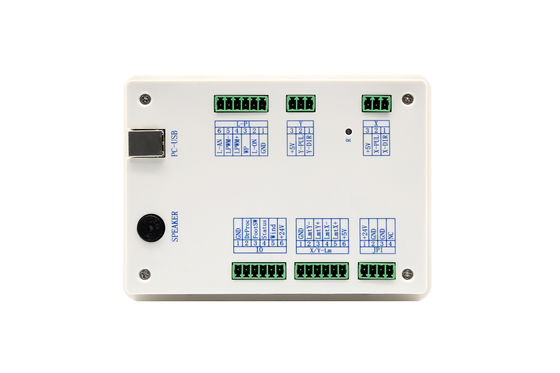

Ruida RDC5121G Standalone CO2 Laser Cutting And Engraving Controller For Non-Metal Processing
Discroption of RDC5121G:
The RDC5121G is an economical laser cutting and engraving control system, which can run offline. Support 2 axis control, XY interpolation. Support CO2 glass tube and metal RF tube laser, support 1 laser control. It has a 2-inch character display for offline operation. It can be widely used in non-metal processing industries.
Product feature:
1.Standalone operation.
2.Support USB communication and U flash disk
3.Panel and mainboard integrated design, small size.
4.Support two motion axes and rich laser interfaces .
5.Worked with independent application software RDWorksV8. support plug-in software and virtual printing.
6.Focus on non-metal cutting, suitable for leather, fabric, sign, craft gift, toy and 3C application fields.
Software RDworks V8(Free)
Support PLT,DXF,AI,DST and other file formats import,display and edit functions,support image file import and processing.
Technical Parameters:
| Parameters | RDC5121G |
| Laser source | CO2 glass tube, CO2 RF tube and UV lasers |
| Drive mode | External servo/steeping driver |
| Axis | 2 |
| Laser channel | 1 |
| Double heads synchronous | Not Support |
| Communication | USB |
| Panel | 2'' character screen + keys |
| Feeding | Not Support |
| Encryption | Support |
| Firmware | Remote upgrade mainboard and panel program |
| Rotary | Y axis rotation |
| Engraving | Plane engraving, slope engraving and gray engraving |
| Software | RDWorksV8, plug-in software RDPlug, virtual printing and RDImage |
| Language | Including simplified Chinese, traditional Chinese, English and Japanese |
| Size | L110mm*W150mm*H25.5mm |
| Accessories | Wireless handle, RD-APP and RD-WIFI |
Note: Virtual printing only supports Win10.
Why Choose US?
1.Cost-Effective: Select the RDC5121G for an economical yet powerful laser control solution.
2.Offline Operation: Work flexibly with our system's offline capabilities.
3.Versatility: Rely on its compatibility with various laser types for diverse applications.
4.Compact Design: Enjoy a space-saving, integrated panel and mainboard for convenience.
5.User Interface: Benefit from a clear 2-inch display for easy offline navigation.
6.Software Integration: Utilize RDWorksV8 and virtual printing for advanced control.
