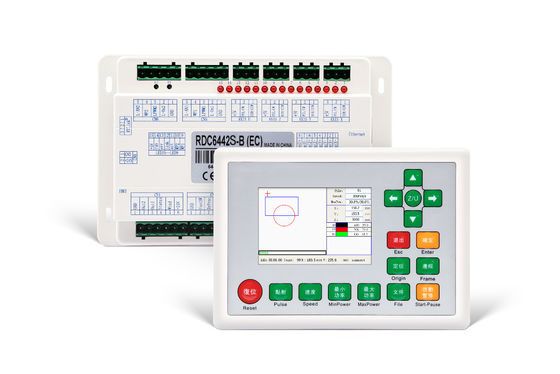

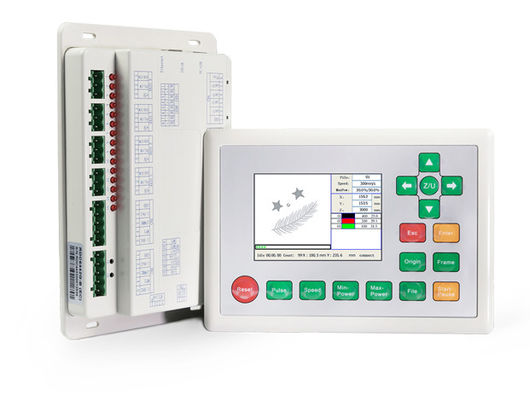

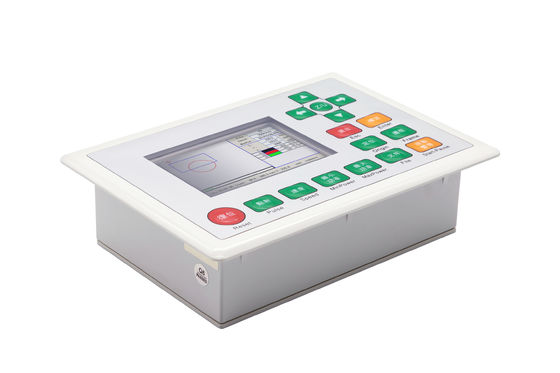

RuiDa RDC6442S Double Heads CO2 Laser Controller With Free RDworks V8 Software And Ethernet/USB Connectivity
Discroption of RDC6442S:
The RDC6442S system, a step up from the RDC6442G, features a 3.5-inch color display for enhanced user interaction and a broader range of functionalities. This advanced controller offers onboard file storage and a flexible U flash disk driver, alongside comprehensive motion control. It supports a variety of devices with its multi-channel general/special IO control, and improves connectivity with both Ethernet and USB interfaces for PC interaction.
Key Functions and Capacities:
1.Support USB and Ethernet communication and U flash disk.
2.Four motion axes and rich laser interfaces.
3.Independent color operation panel. Support push-button operation.
4.Worked with independent application software RDWorksV8. support plug-in software and virtual printing.
5.Rich external auxiliary accessories are optional.
6.Focus on non-metal cutting, suitable for leather, fabric, sign, craft gift, toy and 3C application fields.
Software RDworks V8(Free)
Support PLT,DXF,AI,DST and other file formats import,display and edit functions,support image file import and processing.
Technical Parameters:
| Parameters | RDC6442S |
| Laser source | CO2 glass tube, CO2 RF tube and UV lasers |
| Axis | 4 |
| Laser channel | 2 |
| Double heads synchronous | Support |
| Communication | Ethernet, USB and WIFI (optional) |

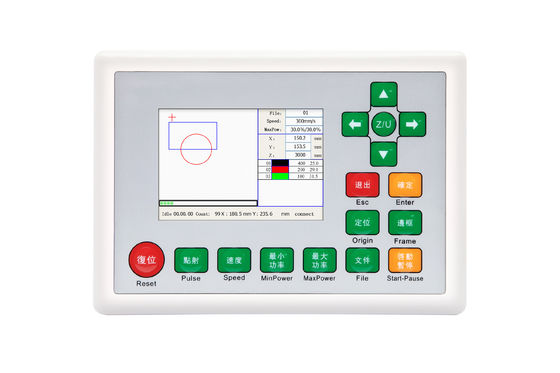

| Panel | 3.5” color screen + keys |
| Feeding | U axis feeding, sheet feeding/large format segmentation feeding |
| Encryption | Support |
| Firmware | Support the remote upgrade of mainboard |
| Rotary | Y or U axis rotation mode is optional |
| Engraving | Plane engraving, slope engraving and gray engraving |
| Processing | Support resume processing after power failure |
| Software | RDWorksV8, plug-in software RDPlug, virtual printing and RDImage |
| Language | Including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian |
| Size | Panel:L170mm*W120mm*H30.5mm Mainboard:L180*W116.6*H33.1mm |
| Accessories | Wireless handle, RD-APP and RD-WIFI |
Note: Virtual printing only supports Win10.
Our Advantages:
1.Upgraded Display: The RDC6442S offers a 3.5-inch color display for an intuitive and enriched user experience.
2.Advanced Motion Control: Equipped with sophisticated motion control for precise laser operations.
3.Onboard Storage: Features onboard file storage for convenient and efficient laser task management.
4.Versatile Compatibility: Supports multi-channel IO control, ensuring compatibility with a wide array of devices.
5.Flexible Connectivity: Enhances user connectivity with both Ethernet and USB interfaces for seamless PC communication.
6.Feature-Rich: Provides a comprehensive feature set that meets diverse laser processing needs.signage, and more.
