| Brand Name: | RUIDA |
| Model Number: | RDC6442S |
| MOQ: | 50 |
| Price: | Negotiable - Inquire Within |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets/day |

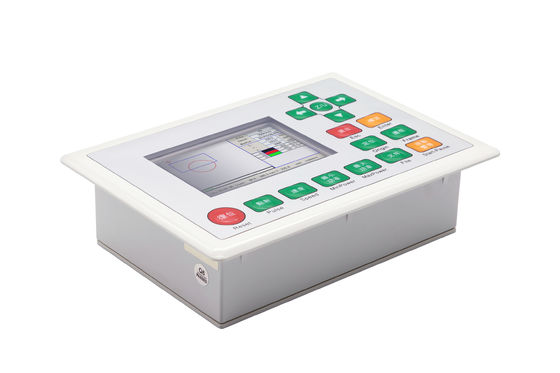

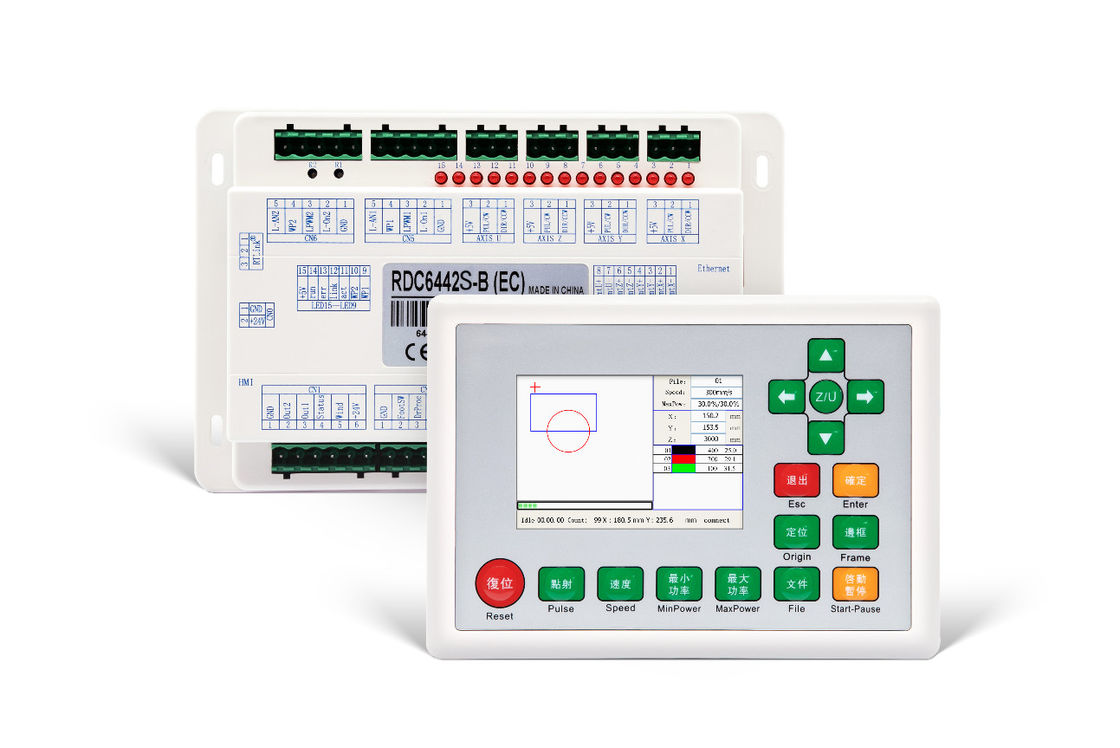

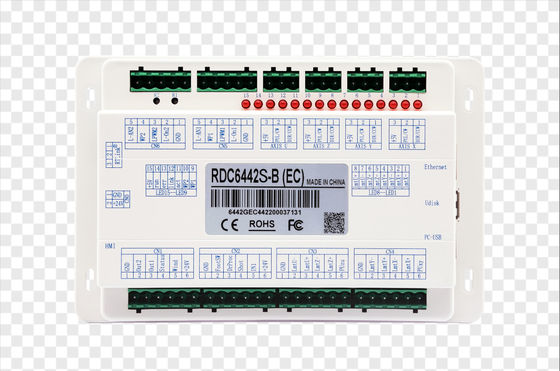

RUIDA RDC6442S CO2 Laser Controller For Non-Metal Cutting With Double Heads Asynchronous
Discroption of RDC6442S:
The RDC6442S system, an upgrade from the RDC6442G, is now equipped with a 3.5-inch color display for a more intuitive user experience and a richer feature set. With advanced motion control, this controller includes onboard file storage and an adaptable U flash disk driver. It boasts multi-channel general/special IO control for versatile device compatibility. Additionally, it enhances connectivity with support for both Ethernet and USB interfaces for PC communication.
Key Features:
1.Dual Connectivity: Supports USB, Ethernet, and U flash disk for flexible data exchange.
2.Multi-Axis Motion: Four motion axes and diverse laser interfaces for intricate control.

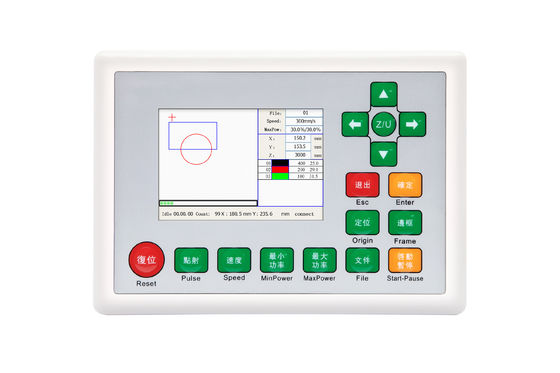

3.Color Panel: An independent, color operation panel for easy, button-based control.
4.Software Compatibility: Compatible with RDWorksV8, supporting plug-ins and virtual printing.
5.Accessories: A selection of external auxiliary accessories for added functionality.
6.Cutting Specialization: Optimized for non-metal cutting in various industries such as leather, fabric, signage, and more.
Software RDworks V8(Free)
Support PLT,DXF,AI,DST and other file formats import,display and edit functions,support image file import and processing.
Technical Parameters:
| Parameters | RDC6442S |
| Laser source | CO2 glass tube, CO2 RF tube and UV lasers |
| Axis | 4 |
| Laser channel | 2 |
| Double heads synchronous | Support |
| Communication | Ethernet, USB and WIFI (optional) |
| Panel | 3.5” color screen + keys |
| Feeding | U axis feeding, sheet feeding/large format segmentation feeding |
| Encryption | Support |
| Firmware | Support the remote upgrade of mainboard |
| Rotary | Y or U axis rotation mode is optional |
| Engraving | Plane engraving, slope engraving and gray engraving |
| Processing | Support resume processing after power failure |
| Software | RDWorksV8, plug-in software RDPlug, virtual printing and RDImage |
| Language | Including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian |
| Size | Panel:L170mm*W120mm*H30.5mm Mainboard:L180*W116.6*H33.1mm |
| Accessories | Wireless handle, RD-APP and RD-WIFI |
Note: Virtual printing only supports Win10.
Our Competitive Edge:
1.Intuitive Design: Simplify operations with our 3.5-inch color screen for clear navigation.
2.Advanced Features: Deliver precision with advanced features tailored for complex laser jobs.
3.Easy Compatibility: Integrate effortlessly with existing setups through multi-channel IO control.
4.Onboard Storage: Enhance independence with onboard storage for your laser tasks.
5.Efficient Communication: Streamline PC interaction with both Ethernet and USB connectivity options.
