RDV8840G-MOD5-DC CO2 Laser Controller With IOT Function Seamless Integration With MES And ERP Systems

RDV8840G-MOD5-DC CO2 Laser Controller with IOT Function and Seamless Integration with MES and ERP Systems

Discroption of RDV8840G-MOD5-DC:

The RDV8840G, developed by Ruida Technology, is a cloud-based laser cutting and engraving controller that integrates IoT (Internet of Things) capabilities. This allows users to remotely diagnose faults, upgrade firmware, analyze large-scale fault data, and monitor equipment in real-time through the RDCloud system. Unlike traditional laser cutting systems, the RDV8840G supports a range of communication methods—such as one-to-many, many-to-one, and many-to-many—over a local area network (LAN). This flexible communication framework eliminates the connectivity limitations found in standard controllers, offering enhanced power and scalability through easy LAN integration.

Function description:

1. In addition to the functions of the RDC644X series controller, it supports WlFl communication.
2. To realize lOT functions such as remote equipment shift management, maintenance and repair, alarm
shutdown early warning through the "RDCloud".
3. "RDCloud" supports PC/OS/Android systems, and seamless with enterprise MES and ERP systems.
4. Support one-to-multi and multi-to-one machine environment in the local area network.
5. Integrated CCD vision system, dual-camera interface on-board, perform panoramic vision for MARK point
accurate positioning cutting.
6. Four-axis motor control, support Z-axis lifting and U-axis feeding, and support to define the U-axis as a
rotary axis application.

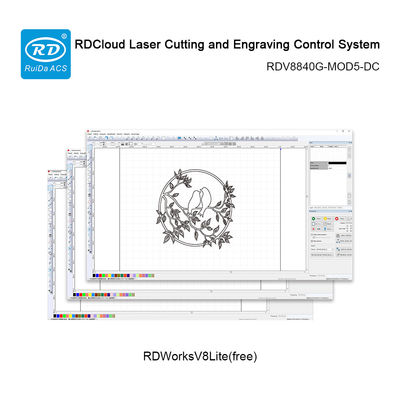

Softare RDWorksV8Liter(Free)

1. Support PLT,DXF,Al,DST and other file formats import, display and edit functions, support image file import
and processing;
2. The mainboard can be bound to the "RDCloud" management system through software;
3. Equipped with the parameter lbrary function, the parameters in the parameter list can be directly selected
for processing;
4. Online upgrade is supported.

Technical Parameters:
