RUIDA RDC7132G CO2 Laser Controller For Cutting And Engraving With XY Axis Stepper Motor Driver

Name: RUIDA RDC7132G CO2 Laser Controller For Cutting And Engraving With XY Axis Stepper Motor Driver
Brand: Shenzhen Ruida Technology Co., Ltd.
SKU: RDC7132G
Price: 410.00 USD
Availability: InStock

Brand Name:	RUIDA
Model Number:	RDC7132G
MOQ:	50
Price:	Negotiable - Inquire Within
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Detail Information

Product Description

Detail Information

Place of Origin:

Mainland China

Certification:

CE FCC ROHS

Axis:

Laser Source:

CO2 Glass Tube, CO2 RF Tube And UV Lasers

Laser Channel:

Drive Mode:

XY Axis Integrated Two-phase Stepping Driver

Panel:

3.5”color Screen + Keys

Communication:

Ethernet, USB And WIFI (optional)

Encryption:

Support

Feeding:

Z Axis Feeding, Sheet Feeding

Rotary:

Y Axes Rotation

Firmware:

Remote Upgrade Of Mainboard Program

Packaging Details:

240*160*120

Supply Ability:

100 sets/day

Highlight:

Engraving CO2 Laser Controller

RUIDA RDC7132G CO2 Laser Controller

Product Description

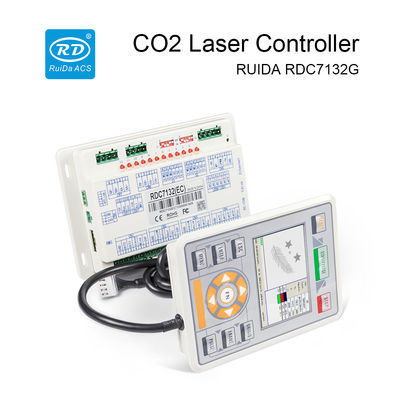

RUIDA RDC7132G CO2 Laser Controller For Cutting And Engraving With XY Axis Stepper Motor Driver

Discroption of RDC7132G:

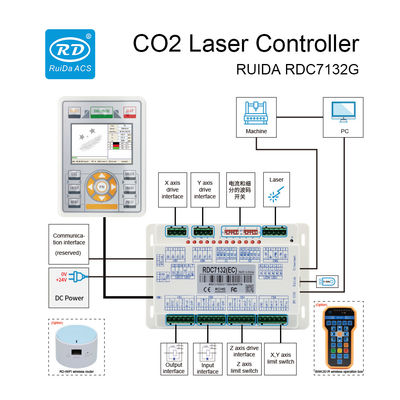

The RDC7132G system is a drive-control laser cutting and engraving control system developed by Ruida Technology, which integrates the XY axis stepper motor drive unit. Z-axis control requires external stepping drives for expansion. Support USB2.0 and PC communication, support U disk copy files.

Function description:

1.Standalone operation.
2.Support USB and Ethernet communication and U flash disk.
3. 3.5” color screen with rich control keys.
4.Drive and control integrated, integration of XY axis stepping motor driver.
5.Support rich laser interfaces. External auxiliary accessories are optional.
6.Worked with independent application software RDWorksV8; support plug-in software and virtual printing.

RUIDA RDC7132G CO2 Laser Controller For Cutting And Engraving With XY Axis Stepper Motor Driver 0

Software RDworks V8(Free)

Support PLT,DXF,AI,DST and other file formats import,display and edit functions,support image file import and processing.

RUIDA RDC7132G CO2 Laser Controller For Cutting And Engraving With XY Axis Stepper Motor Driver 1

Technical Parameters:

Parameters	RDC7132G
Laser source	CO2 glass tube, CO2 RF tube and UV lasers
Axis	3
Laser channel	1
Drive mode	XY axis integrated two-phase stepping driver
Double heads synchronous	Not Support
Communication	Ethernet, USB and WIFI (optional)
Panel	3.5” color character screen + keys
Feeding	Z axis feeding + sheet feeding
Encryption	Support
Onboard clock	Not support
Firmware	Support the remote upgrade of mainboard program
Rotary	Y axis rotation
Engraving	Plane engraving, slope engraving and gray engraving
Software	RDWorksV8, plug-in software RDPlug, virtual printing and RDImage
Language	Including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian

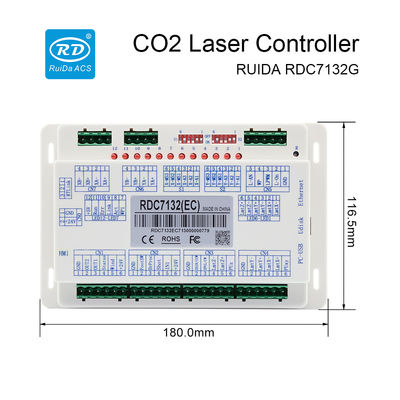

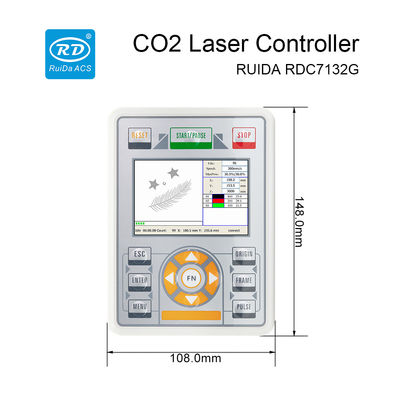

Size	Panel: L108W148H26.1mm Mainboard: L180W116.5H33.1mm
Accessories	Wireless handle, RD-APP and RD-WIFI

Note: Virtual printing only supports Win10.

RUIDA RDC7132G CO2 Laser Controller For Cutting And Engraving With XY Axis Stepper Motor Driver 2
