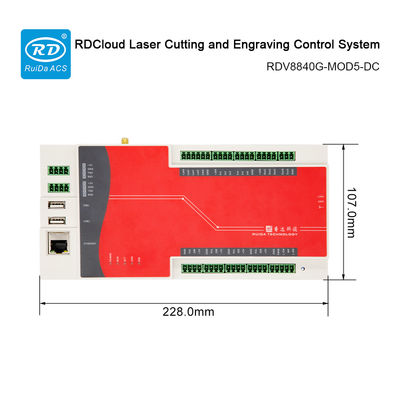

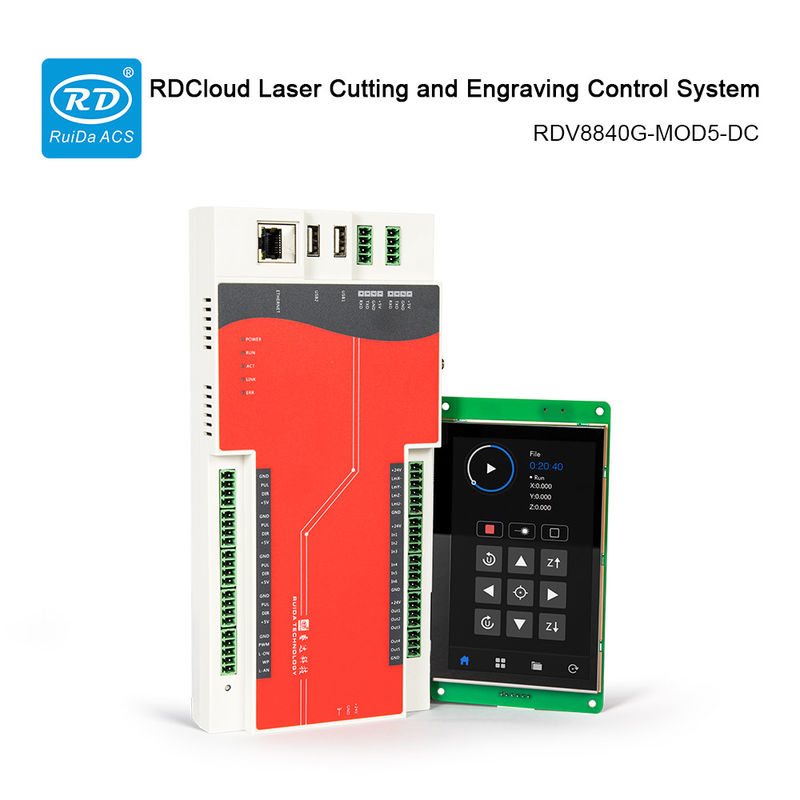

RUIDA RDV8840G-MOD5-DC Intelligent Cutting And Engraving Controller IOT Solutions

RUIDA RDV8840G-MOD5-DC Intelligent Cutting and Engraving Controller IOT Solutions

Discroption of RDV8840G-MOD5-DC:

As a cloud laser cutting and engraving system developed by Ruida Technology, RDV8840G-MOD5-DC supports IOT (Internet of Things) function and helps users with the remote fault diagnosis, remote firmware upgrade, big data analysis of fault and monitoring of all the equipment by screen through RDCloud system. Besides, based on the conventional laser cutting system, the controller supports multiple means of communication such as one to many, many to one and many to many between the host and equipment in LAN . And it can get rid of connection barrier of the common controller and be connected into LAN, which is powerful and extensible.

Function Description:

1. In addition to the functions of the RDC644X series controller, it supports WlFl communication.
2. To realize lOT functions such as remote equipment shift management, maintenance and repair, alarm
shutdown early warning through the "RDCloud".
3. "RDCloud" supports PC/OS/Android systems, and seamless with enterprise MES and ERP systems.
4. Support one-to-multi and multi-to-one machine environment in the local area network.
5. Integrated CCD vision system, dual-camera interface on-board, perform panoramic vision for MARK point
accurate positioning cutting.
6. Four-axis motor control, support Z-axis lifting and U-axis feeding, and support to define the U-axis as a
rotary axis application.

Softare RDWorksV8Liter(Free)

1. Support PLT,DXF,Al,DST and other file formats import, display and edit functions, support image file import
and processing;
2. The mainboard can be bound to the "RDCloud" management system through software;
3. Equipped with the parameter lbrary function, the parameters in the parameter list can be directly selected
for processing;
4. Online upgrade is supported.

Technical Parameters:
