RUIDA RDC6445G-DFM-RD Laser Cutting Control System For CO2 Laser Cutting And Engraving Machine

Name: RUIDA RDC6445G-DFM-RD Laser Cutting Control System For CO2 Laser Cutting And Engraving Machine
Brand: Shenzhen Ruida Technology Co., Ltd.
SKU: RDC6445G-DFM-RD
Price: 410.00 USD
Availability: InStock

Brand Name:	RUIDA
Model Number:	RDC6445G-DFM-RD
MOQ:	50
Price:	Negotiable - Inquire Within
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Detail Information

Product Description

Detail Information

Place of Origin:

Mainland China

Certification:

CE FCC ROHS

Brand:

RUIDA

Laser Source:

CO2 Glass Tube, CO2 RF Tube And UV Lasers

Axis:

Communication:

Ethernet, USB And WIFI (optional)

Laser Channel:

Panel:

5'' Color Screen + Keys

Pulse Frequency:

400KHz

Feeding:

U Axis Feeding/ Y And U Axes Feeding Synchronously, Sheet Feeding/large Format Segmentation Feeding

Encryption:

Support

Software:

RDVisionWorks，RDWorksV8

Packaging Details:

Carton Packing

Supply Ability:

100 sets/day

Highlight:

RDC6445G-DFM-RD Laser Control System

Laser Cutting Engraving Machine Control System

RUIDA Laser Cutting Control System

Product Description

RUIDA RDC6445G-DFM-RD Large Format Laser Cutting Control System For CO2 Laser Cutting And Engraving Machine

Discroption of RDC6445G-DFM-RD:

The RDC6445G-DFM-RD system supports up to 4 axes. With rich laser interface and external IO resources. A wide range of external accessories is available. With high-resolution camera, panoramic large-format shooting, feature positioning and automatic edge-finding.

Product feature:

1. Worked with a high-resolution SLR camera which has large shooting width, high recognition accuracy and small image error.
2. Adopt advanced image processing algorithm.

3. Support feature point positioning, automatic contour extraction, deformation matching function and ultra-wide panoramic visual cutting.
4. Suitable for large format cutting of clothing, leather, trademark, digital printing, printing & engraving and template cutting industries.

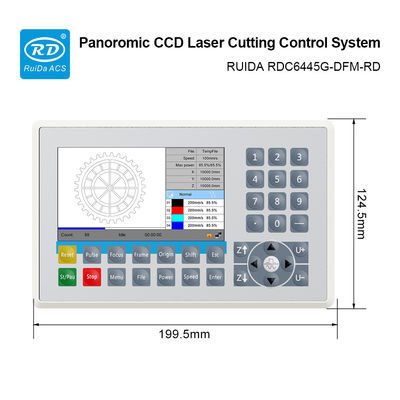

RUIDA RDC6445G-DFM-RD Laser Cutting Control System For CO2 Laser Cutting And Engraving Machine 0

Software RDVision(Free)

The RDVisionWorks,a large format intelligent visual cutting software,can take the image in the whole plane of the machine at one time,extract the contour of the image,or to do template matching recognition by create templates.The software also supports the full automation processing of feeding,photography,identification and cutting.

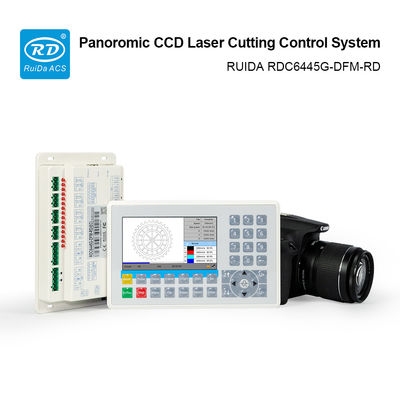

RUIDA RDC6445G-DFM-RD Laser Cutting Control System For CO2 Laser Cutting And Engraving Machine 1

Technical Parameters:

Parameters	RDC6445G-DFM-RD
Laser source	CO2 glass tube, CO2 RF tube and UV lasers
Axis	4
Laser channel	2
Double heads synchronous	Support
Communication	Ethernet, USB and WIFI (optional)
Panel	5”color screen + keys
Feeding	U axis feeding, Y and U axes feeding synchronously, sheet feeding, large format segmentation feeding
Encryption	Support
Onboard clock	Not support
Firmware	Support the remote upgrade of mainboard and panel program
Camera	24 megapixels resolution, 10-18mm and 18-55mm focal length are available
Cutting	Feature positioning, automatic contour extraction and deformation matching
Engraving	Plane engraving, slope engraving and gray engraving
Software	RDVisionWorks,RDWorksV8
Language	Including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian, Japanese
Size	Panel: L199.5W124.5H42.1mm Mainboard: L180W116.6H33.1mm
Accessories	Wireless handle, RD-APP and RD-WIFI

RUIDA RDC6445G-DFM-RD Laser Cutting Control System For CO2 Laser Cutting And Engraving Machine 2
