RUIDA RDC6585G Multi-Head Synchronous Laser Controller For Cutting And Engraving

Name: RUIDA RDC6585G Multi-Head Synchronous Laser Controller For Cutting And Engraving
Brand: Shenzhen Ruida Technology Co., Ltd.
SKU: RDC6585G
Price: 410.00 USD
Availability: InStock

Brand Name:	RUIDA
Model Number:	RDC6585G
MOQ:	50
Price:	Negotiable - Inquire Within
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Detail Information

Product Description

Detail Information

Place of Origin:

Mainland China

Certification:

CE FCC ROHS

Axis:

Laser Source:

CO2 Glass Tube, CO2 RF Tube And UV Lasers

Laser Channel:

Communication:

Ethernet, USB And WIFI (optional)

Panel:

5” Color Screen + Keys

Feeding:

U Axis Feeding/ Y And U Axes Feeding Synchronously, Sheet Feeding/large Format Segmentation Feeding

Encryption:

Support

Multi-head Synchronous:

Support Double, Three, Four, Five And Six Heads Synchronous

Rotary:

Y Axes Rotation

Engraving:

Plane Engraving, Slope Engraving And Gray Engraving

Packaging Details:

Carton Packing

Supply Ability:

100 sets/day

Highlight:

Cutting And Engraving Laser Controller

Multi-Head Laser Controller

RUIDA RDC6585G Laser Controller

Product Description

Ruida RDC6585G Multi-Head Synchronous Laser Controller For Cutting And Engraving

Discroption of RDC6585G:

The RDC6585G system is a new generation of multi-head synchronous laser control system developed by Ruida Technology. The human-machine operating system based on the 5-inch color screen has a more friendly operation interface and more powerful functions. With multiple general/ special IO control interfaces and many external interconnection interfaces, the controller has perfect and excellent motion control functions, and can realize laser processing and glue spraying processing separately.

Product feature:

1.Multi-head intelligent synchronous cutting control greatly improves fabric utilization rate and the cutting efficiency of raw materials.
2.8-axis and 6 laser heads control, support single head, double heads and multi-head control. Power can be adjusted independently.
3.Support the hierarchical output of data and the separate definition of the output power, speed and laser method.
4.Support automatic feeding and lifting function.
5.Real-time display of function and processing path.
6.Support automatic blow, automatic focusing and security protection.

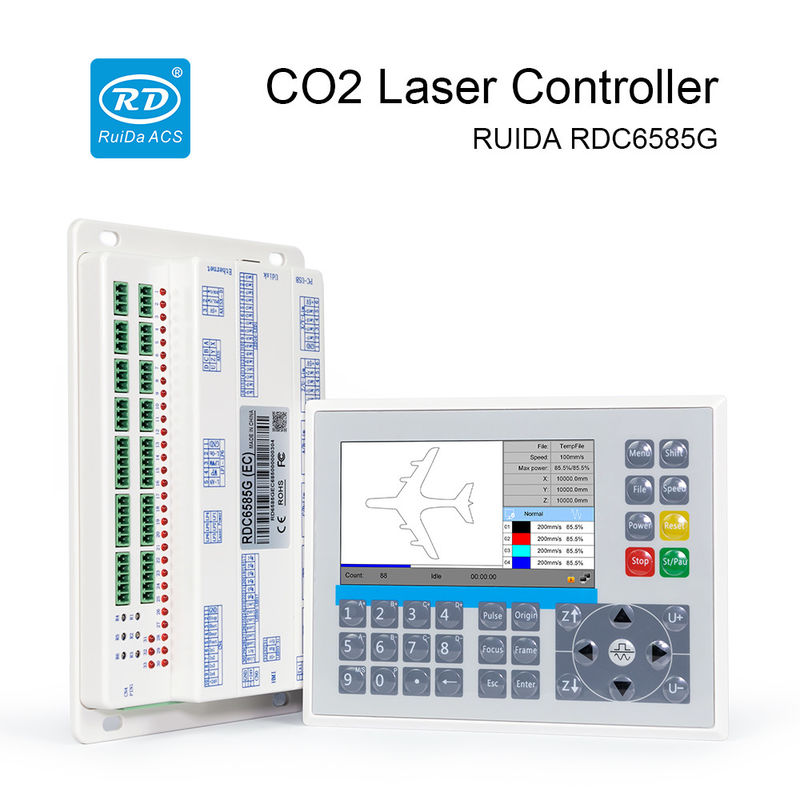

RUIDA RDC6585G Multi-Head Synchronous Laser Controller For Cutting And Engraving 0

Software RDworks V8(Free)

Support PLT,DXF,AI,DST and other file formats import,display and edit functions,support image file import and processing.

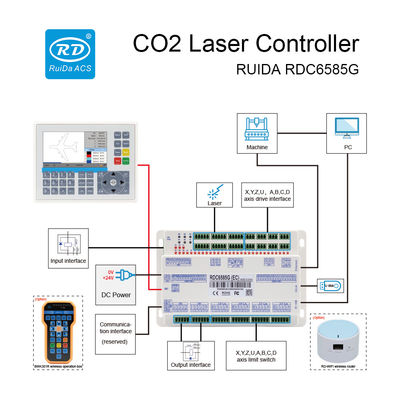

RUIDA RDC6585G Multi-Head Synchronous Laser Controller For Cutting And Engraving 1

Technical Parameters:

Parameters	RDC6585G
Laser source	CO2 glass tube, CO2 RF tube and UV lasers
Axis	8
Laser channel	6
Communication	Ethernet, USB and WIFI (optional)
Panel	5” color screen + keys
Feeding	U axis feeding/ Y and U axes feeding synchronously, sheet feeding/large format segmentation feeding
Encryption	Support
Onboard clock	Not Support
Firmware	Support the remote upgrade of mainboard and panel program
Multi-head synchronous	Support double, three, four, five and six heads synchronous
Rotary	Y axis rotation
Engraving	Plane engraving, slope engraving and gray engraving
Processing	Support resume processing after power failure
Software	RDWorksV8, plug-in software RDPlug, virtual printing and RDImage
Language	Including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian

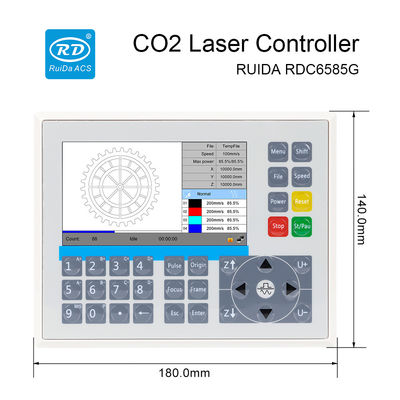

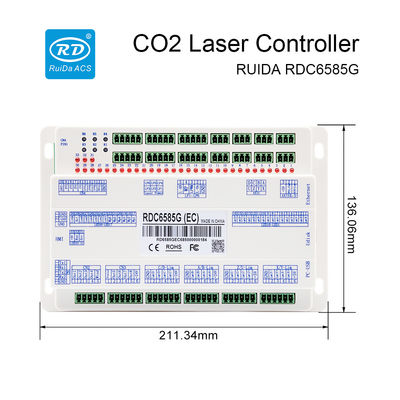

Size	Panel: L180W140H42.1mm Mainboard: L211.3W136H33.1mm
Accessories	Wireless handle, RD-APP and RD-WIFI

Note: Virtual printing only supports Win10.

RUIDA RDC6585G Multi-Head Synchronous Laser Controller For Cutting And Engraving 2
