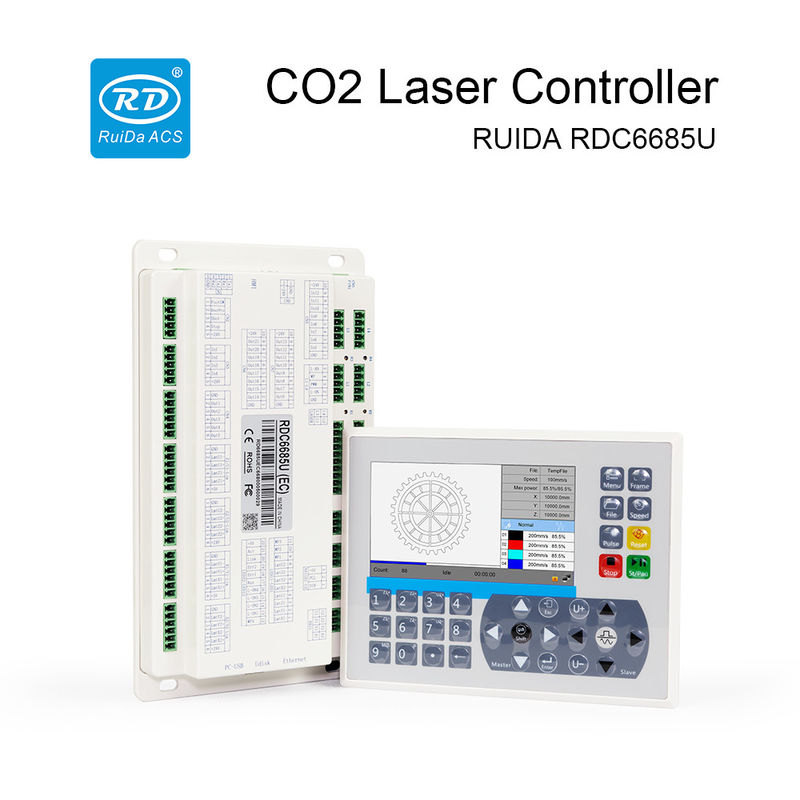

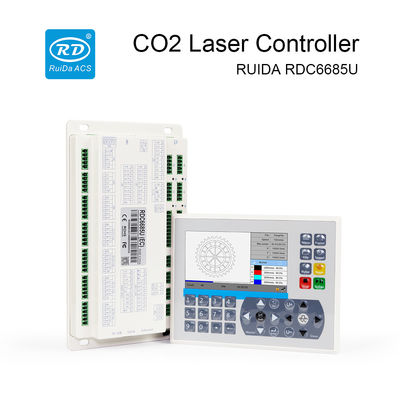

RDC6685U Double Heads Asynchronously Laser Controller For CO2 Engraving Cutting Machine

Name: RDC6685U Double Heads Asynchronously Laser Controller For CO2 Engraving Cutting Machine
Brand: Shenzhen Ruida Technology Co., Ltd.
SKU: RDC6685U
Price: 410.00 USD
Availability: InStock

Brand Name:	RUIDA
Model Number:	RDC6685U
MOQ:	50
Price:	Negotiable - Inquire Within
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Detail Information

Product Description

Detail Information

Place of Origin:

Mainland China

Certification:

CE FCC ROHS

Brand:

RUIDA

Laser Source:

CO2 Glass Tube, CO2 RF Tube And UV Lasers

Axis:

Multi-head Synchronous:

Double Coordinates System Control, Support Double Head Asynchronous And Synchronous

Laser Channel:

Communication:

Ethernet, USB And WIFI (optional)

Panel:

5'' Color Screen + Keys

Feeding:

U Axis Feeding/ Y And U Axes Feeding Synchronously, Sheet Feeding/large Format Segmentation Feeding

Encryption:

Support

Software:

RDWorksV8, Plug-in Software RDPlug, Virtual Printing And RDImage

Packaging Details:

Carton Packing

Supply Ability:

100 sets/day

Highlight:

Double Heads Asynchronously Laser Controller

RDC6685U Laser Controller

CO2 Laser Engraver And Cutter Controller

Product Description

RUIDA RDC6685U Double Heads Asynchronously Laser Controller For CO2 Laser Engraving Cutting Machine

Discroption of RDC6685U:

The RDC6685U system is the latest generation of dual X/Y coordinate system controllers developed by Ruida Technology. The control system has better hardware stability, and better anti-high voltage and anti-static characteristics. The HMI based on the 5-inch color screen has a more friendly operation interface and powerful functions.

Product Feature:

1. Standalone operation. Support USB and Ethernet communication and U flash disk.

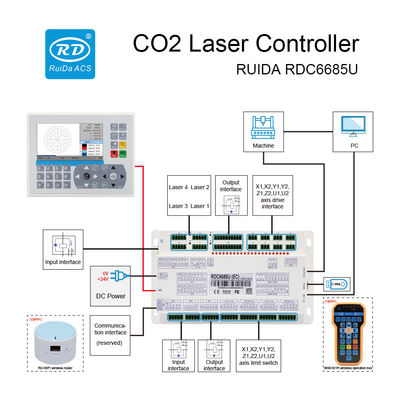

2. With rich laser interfaces and external IO resources.
3. Double coordinate systems and beamsdouble beams work synchronously, support double heads asynchronously and synchronously processing.
4. Support automatic feeding and ultra-wide panoramic visual cutting.
5. Suitable for laser cutting with high efficiency in large graphics and large-scale graphics of clothing, leather, fabric industries.

RDC6685U Double Heads Asynchronously Laser Controller For CO2 Engraving Cutting Machine 0

Software UnionLaser(Free):

The Unionlaser software for double heads synchronous work can not only make an intelligent assignment of the double heads processing,but also control the coordination for the main and slave controllers.

RDC6685U Double Heads Asynchronously Laser Controller For CO2 Engraving Cutting Machine 1

Technical Parameters:

Parameters	RDC6685U
Laser source	CO2 glass tube, CO2 RF tube and UV lasers
Axis	8
Laser channel	4
Multi-head synchronous	Double coordinates system control, support double head asynchronous and synchronous
Communication	Ethernet, USB and WIFI (optional)
Panel	5” color screen + keys
Feeding	U axis feeding/ Y and U axes feeding synchronously, sheet feeding/large format segmentation feeding
Encryption	Support
Onboard clock	Support (support the modification of time)
Firmware	Remote upgrade of panel and mainboard program
Cutting	Ordinary cutting
Engraving	Plane engraving, slope engraving and gray engraving
Software	UnionLaser,RDWorksV8,RDVisionWorks
Language	Including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian

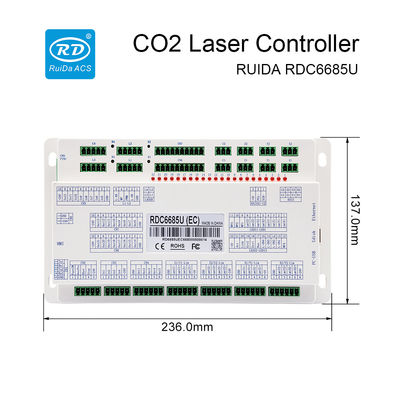

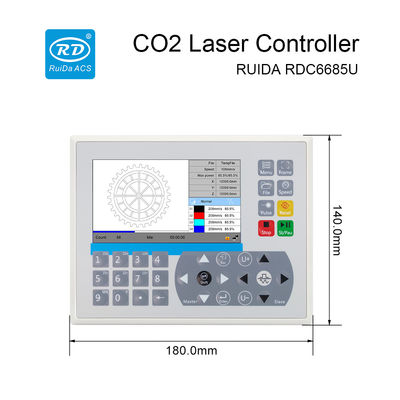

Size	Panel:L180mmW140mmH42.1mm Mainboard:L236W137H33.5mm
Accessories	Wireless handle and RD-WIFI

RDC6685U Double Heads Asynchronously Laser Controller For CO2 Engraving Cutting Machine 2
