RUIDA RDC6332G CO2 Laser Control Panel , Laser Engraver And Cutter Controller

Name: RUIDA RDC6332G CO2 Laser Control Panel , Laser Engraver And Cutter Controller
Brand: Shenzhen Ruida Technology Co., Ltd.
SKU: RDC6332G
Price: 410.00 USD
Availability: InStock

Brand Name:	RUIDA
Model Number:	RDC6332G
MOQ:	50
Price:	Negotiable - Inquire Within
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Detail Information

Product Description

Detail Information

Place of Origin:

Mainland China

Certification:

CE FCC ROHS

Axis:

Laser Source:

CO2 Glass Tube, CO2 RF Tube And UV Lasers

Laser Channel:

Communication:

Ethernet, USB And WIFI (optional)

Installment Encryption:

Support

Feeding:

Z Axis Feeding, Sheet Feeding

Rotary:

Y Axes Rotation

Panel:

3.5''color Screen + Keys, Linux Operating System

Onboard Clock:

Support

Software:

RDWorksV8, Plug-in Software RDPlug, Virtual Printing And RDImage

Packaging Details:

240*160*120

Supply Ability:

100 sets/day

Highlight:

RDC6332G Control Panel

Laser Engraver Cutter Control Panel

Laser Engraver And Cutter Controller

Product Description

RUIDA RDC6332G CO2 Laser Controller For CO2 Laser Cutting And Engraving Machine

Discroption of RDC6332G:

The RDC6332G system is the latest generation of laser engraving / cutting control system developed by Ruida Technology. The control system has better hardware stability and better resistance to high voltage and static electricity. The human-machine operating system based on LINUX has a more friendly operation interface and more powerful functions. This controller has better motion control functions, large file storage, dual channel adjustable digital / analog laser power control interface, more compatible U flash disk driver and multi-channel general/ special IO control. It integrates special time system and supports the Ethernet and USB communication with PC and hardware encryption algorithm.

Function description:

1.Standalone operation, 256M memory on board.
2.Support USB and Ethernet communication and U flash disk.
3.Independent color operation panel. Support push-button operation and touch screen.
4.Worked with independent application software RDWorksV8; support plug-in software and virtual printing.
5.Three motion axes and rich laser interfaces.
6.Rich external auxiliary accessories are optional.

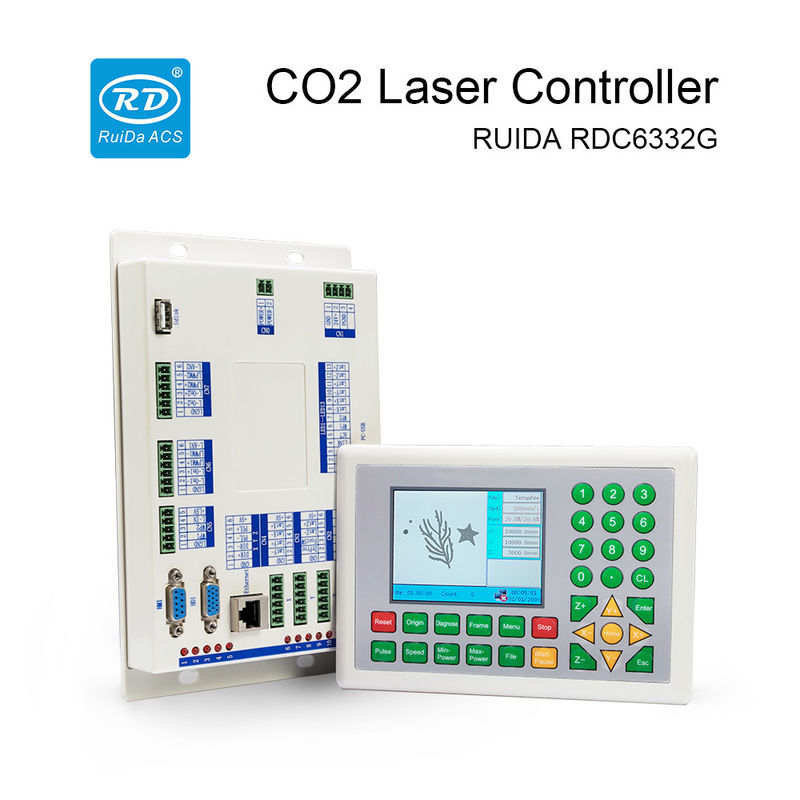

RUIDA RDC6332G CO2 Laser Control Panel , Laser Engraver And Cutter Controller 0

Software RDworks V8(Free)

Support PLT,DXF,AI,DST and other file formats import,display and edit functions,support image file import and processing.

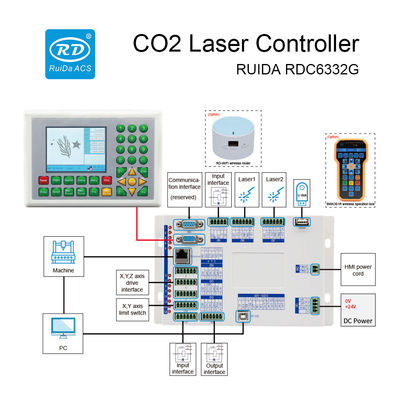

RUIDA RDC6332G CO2 Laser Control Panel , Laser Engraver And Cutter Controller 1

Technical Parameters:

Parameters	RDC6332G
Laser source	CO2 glass tube, CO2 RF tube and UV lasers
Axis	3
Laser channel	2
Communication	Ethernet, USB and WIFI (optional)
Panel	3.5” color screen + keys,Linux operating system
Feeding	Z axis feeding, sheet feeding
Installment encryption	Support
Onboard clock	Support
Firmware	Remote upgrade of pannel and mainboard program
Rotary processing	Y axis rotation
Engraving function	Plane engraving, slope engraving and gray engraving
Resume processing after power failure	Support
Software	RDWorksV8, plug-in software RDPlug, virtual printing and RDImage
Operating system	WinXP,Win7,Win8,Win10,32-bit or 64-bit
Language	11 languages Including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Korean and Italian

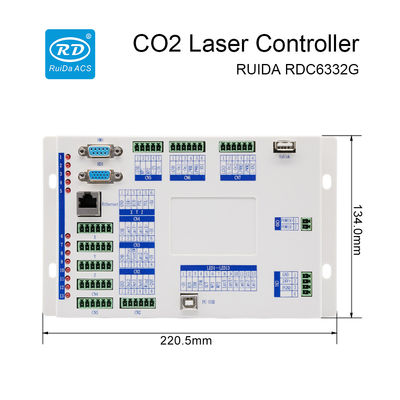

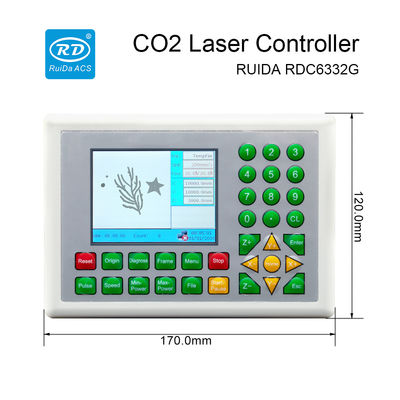

Size	Panel: L170mmW120mmH38.6mm Mainboard: L220.5mmW134mmH29.6mm
Accessories	Wireless handle box, RD-APP and RD-WIFI

Note: Virtual printing only supports Win10.

RUIDA RDC6332G CO2 Laser Control Panel , Laser Engraver And Cutter Controller 2
