RDC5121G Non Metal CO2 Laser Cutter Controller With 2 Axis Control And USB Communication

Name: RDC5121G Non Metal CO2 Laser Cutter Controller With 2 Axis Control And USB Communication
Brand: Shenzhen Ruida Technology Co., Ltd.
SKU: RDC5121G
Price: 410.00 USD
Availability: InStock

Brand Name:	RUIDA
Model Number:	RDC5121G
MOQ:	50
Price:	Negotiable - Inquire Within
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Detail Information

Product Description

Detail Information

Place of Origin:

Mainland China

Certification:

CE FCC ROHS

Axis:

Laser Source:

CO2 Glass Tube, CO2 RF Tube And UV Lasers

Laser Channel:

Drive Mode:

External Servo/steeping Driver

Communication:

USB

Firmware:

Remote Upgrade Mainboard And Panel Program

Encryption:

Support

Software:

RDWorksV8, Plug-in Software RDPlug, Virtual Printing And RDImage

Panel:

2''character Screen + Keys

Language:

Simplified Chinese, Traditional Chinese, English And Japanese

Packaging Details:

240*160*120

Supply Ability:

100 sets/day

Highlight:

CO2 Laser Cutter Controller

2 Axis Control Laser Controller

USB Communication Laser Cutter Controller

Product Description

Ruida RDC5121G CO2 Laser Controller For Non-Metal Processing With 2-Axis Control And USB Communication

Discroption of RDC5121G:

The RDC5121G is a cost-effective control system designed for laser cutting and engraving, capable of operating offline. It supports 2-axis control and XY-axis interpolation, compatible with both CO2 glass tube and metal RF laser tubes, and offers single laser control. Featuring a 2-inch character display, it is designed for offline operations and is widely applicable in various non-metal processing industries.

Key Feature:

1. Autonomous Operation: Capable of standalone functioning without the need for continuous connectivity.

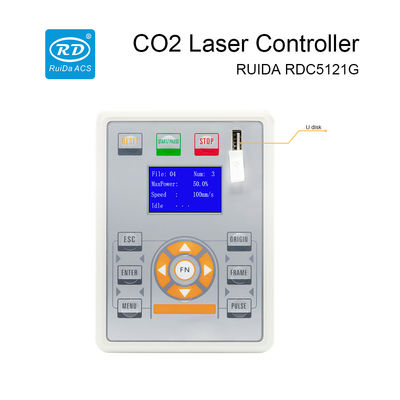

2. USB and Flash Disk Support: Facilitates data transfer and operation through USB and U flash disk.
3. Compact Design: The panel and mainboard are integrated, resulting in a compact and space-saving design.
4. Multi-Axis Motion Control: Supports two motion axes and offers a variety of laser interfaces.
5. Software Compatibility: Compatible with the standalone application software RDWorksV8, supporting plug-in software and virtual printing.
6. Non-Metal Cutting Specialization: Ideal for industries dealing with leather, fabric, signage, crafts, gift items, toys, and 3C applications.

RDC5121G Non Metal CO2 Laser Cutter Controller With 2 Axis Control And USB Communication 0

Software RDworks V8(Free)

Support PLT,DXF,AI,DST and other file formats import,display and edit functions,support image file import and processing.

RDC5121G Non Metal CO2 Laser Cutter Controller With 2 Axis Control And USB Communication 1

Technical Parameters:

Parameters	RDC5121G
Laser source	CO2 glass tube, CO2 RF tube and UV lasers
Drive mode	External servo/steeping driver
Axis	2
Laser channel	1
Double heads synchronous	Not Support
Communication	USB
Panel	2'' character screen + keys
Feeding	Not Support
Encryption	Support
Firmware	Remote upgrade mainboard and panel program
Rotary	Y axis rotation
Engraving	Plane engraving, slope engraving and gray engraving
Software	RDWorksV8, plug-in software RDPlug, virtual printing and RDImage
Language	Including simplified Chinese, traditional Chinese, English and Japanese

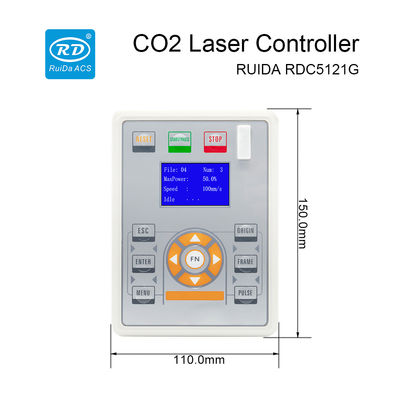

Size	L110mmW150mmH25.5mm
Accessories	Wireless handle, RD-APP and RD-WIFI

Note: Virtual printing only supports Win10.

RDC5121G Non Metal CO2 Laser Cutter Controller With 2 Axis Control And USB Communication 2
