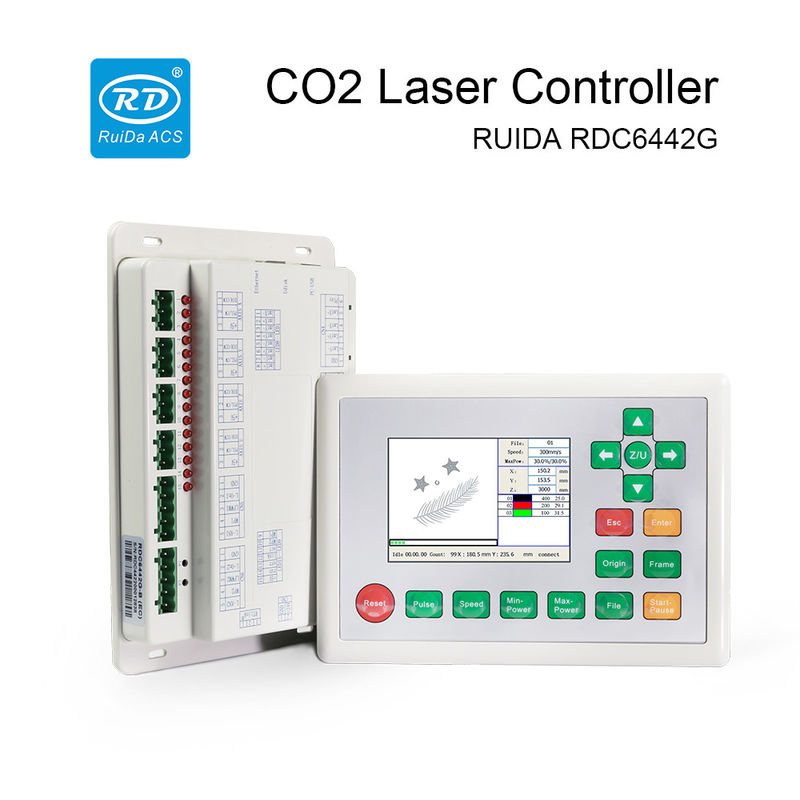

RUIDA RDC6442G CO2 Laser Cutting And Engraving Controller for CO2 Laser Engraving Cutting Machine
Discroption of RDC6442G:

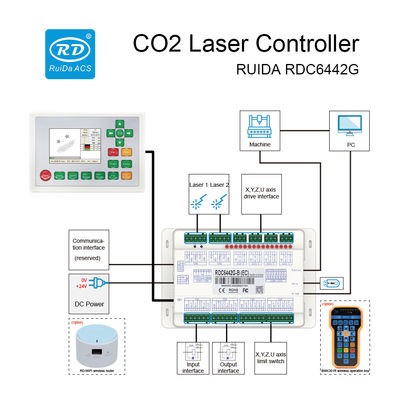

The RDC6442G system based on the 3.5-inch color screen has a more friendly operation interface and more powerful functions. The controller has more complete and better motion control functions, on-board file storage, more compatible U flash disk driver and multi-channel general/ special IO control. It supports the Ethernet and USB communication with PC.
Product feature:
1.Support USB and Ethernet communication and U flash disk.
2.Four motion axes and rich laser interfaces.
3.Independent color operation panel. Support push-button operation.
4.Worked with independent application software RDWorksV8. support plug-in software and virtual printing.
5.Rich external auxiliary accessories are optional.
6.Focus on non-metal cutting, suitable for leather, fabric, sign, craft gift, toy and 3C application fields.
Software RDworks V8(Free)
Support PLT,DXF,AI,DST and other file formats import,display and edit functions,support image file import and processing.
Technical Parameters:
| Parameters | RDC6442G |
| Laser source | CO2 glass tube, CO2 RF tube and UV lasers |
| Axis | 4 |
| Laser channel | 2 |
| Double heads synchronous | Not Support |
| Communication | Ethernet, USB and WIFI (optional) |
| Panel | 3.5” color screen + keys |
| Feeding | U axis feeding, sheet feeding |
| Encryption | Support |
| Firmware | Support the remote upgrade of mainboard |
| Rotary | Y or U axis rotation mode is optional |
| Engraving | Plane engraving, slope engraving and gray engraving |
| Processing | Support resume processing after power failure |
| Software | RDWorksV8, plug-in software RDPlug, virtual printing and RDImage |
| Language | Including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian |

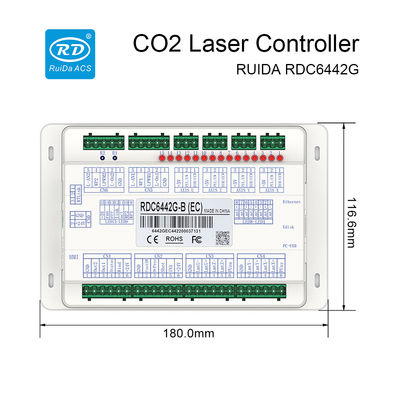

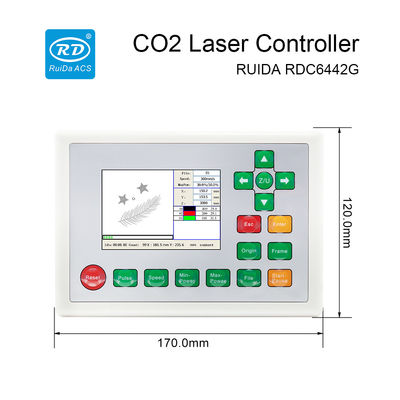

| Size | Panel:L170mm*W120mm*H30.5mm Mainboard:L180*W116.6*H33.1mm |
| Accessories | Wireless handle, RD-APP and RD-WIFI |
Note: Virtual printing only supports Win10.
