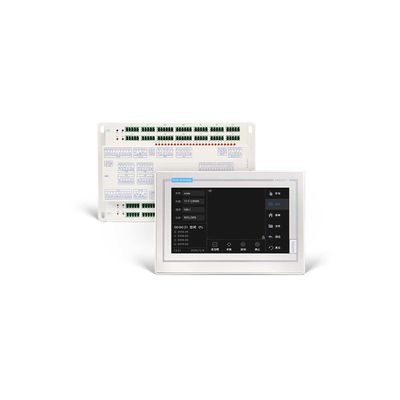

Ruida RDC6612U Dual Coordinate 4-Head Laser Controller for CO2 Tubes

Name: Ruida RDC6612U Dual Coordinate 4-Head Laser Controller for CO2 Tubes
Brand: Shenzhen Ruida Technology Co., Ltd.
SKU: RDC6612U
Price: 550.00 USD
Availability: InStock

Brand Name:	RUIDA
Model Number:	RDC6612U
MOQ:	50
Price:	USD500-600/Set
Payment Terms:	T/T, D/P, D/A, Western Union
Supply Ability:	100 sets/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE FCC ROHS

Brand:

RUIDA

Model:

RDC6612U

Axis:

Laser Channel:

Multi-head Synchronous:

Double Coordinates System Control,support Double Heads Asynchronous And Four Heads Synchronous

Laser Cutting:

Dual Beams

Laser Source:

CO2 Glass Tube,CO2 RF Tube,and UVlasers

Communication:

Ethernet,USB And WIFI (optional)

Feeding:

Yand U Axes Feeding Synchronously,sheet Feeding/large Format Segmentation Feeding,repeat Multiple Plates Feeding

Size:

Panel:L147mm*W95mm*H33.5mm;Mainboard:L240mm*W151.5mm*H33.5mm

Packaging Details:

Carton Packing

Supply Ability:

100 sets/day

Highlight:

Four Head Laser Controller

Mutual Shift Laser Controller

RDC6612U Laser Controller

Product Description

Ruida RDC6612U Dual Coordinate System Four Head Mutual Shift Laser Controller

Product Specifications

Attribute	Value
Brand	RUIDA
Model	RDC6612U
Axis	12
Laser channel	8
Multi-head synchronous	Double coordinates system control, support double heads asynchronous and four heads synchronous
Laser cutting	Dual beams
Laser source	CO2 glass tube, CO2 RF tube, and UV lasers
Communication	Ethernet, USB and WIFI (optional)
Feeding	Y and U axes feeding synchronously, sheet feeding/large format segmentation feeding, repeat multiple plates feeding
Size	Panel: L147mmW95mmH33.5mm; Mainboard: L240mmW151.5mmH33.5mm

Product Description

The RDC6612U(-DFM) system is the latest generation of dual X/Y coordinate system controller developed by Ruida Technology. RDC6612U is a common dual coordinate system controller, while RDC6612U-DFM is a panoramic vision dual coordinate system controller.

The system uses double coordinate system control technology to enable double-beam or double-cantilever asynchronous cutting, with each XY coordinate system supporting up to 4 laser heads synchronous cutting. Featuring automatic collision prevention and optimized graphics management algorithms, it significantly improves task distribution balance for large-scale, high-efficiency processing in garment, leather, and fabric industries.

Key Features

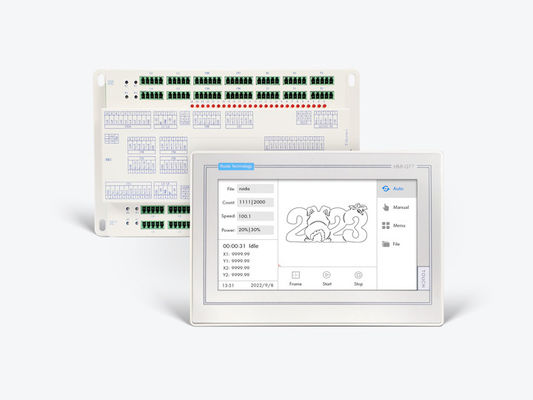

7" touch screen panel supporting parameter modification, static preview and dynamic graphics display
12-axis control with 8 laser channels
Dual coordinate system control supporting double heads asynchronous and four heads synchronous operation
Dual track laser cutting capability
Compatible with CO2 glass tubes, CO2 RF tubes, and UV lasers
Multiple communication options: Ethernet, USB, and optional WIFI
Advanced feeding system with synchronous Y/U axes operation
Encryption support for secure operation
Compatible with RDWorksV8, UnionLaser, and RDVisionWorks software

Custom Solutions

We offer comprehensive customization services for controller cards, adapting our proven technology to meet your specific industry demands. Our experienced R&D team works closely with you throughout the entire development process.
