| Brand Name: | Ruida |
| Model Number: | RDC6445GT5 |
| MOQ: | 1 |
| Price: | Negotiable - Inquire Within |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 100 sets/day |
| Attribute | Value |
|---|---|
| Axis | 4 |
| Adapted laser | CO2 glass tube, CO2 RF tube and UV lasers |
| Laser Interface | 2 |
| Feeding | U axis feeding, Y and U axes feeding synchronously, sheet feeding/large format segmentation feeding |
| Double heads asynchronous | Support |

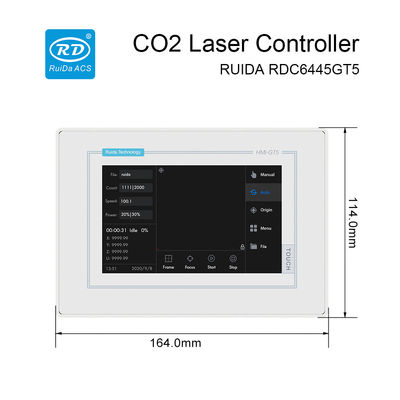

| Panel | 5'' touch screen. Support screen lock and the upgrade of boot screen |
| Communication | Ethernet, USB and WIFI |
| Rotary processing | Y or U axis rotation mode is optional |
| Engraving | Plane engraving, slope engraving and gray engraving |
| Firmware upgrade | Support the remote upgrade of mainboard and panel program |
| Operating system | WinXP, Win7, Win8, Win10, 32-bit or 64-bit |
| Software | RDWorksV8, plug-in software RDPlug, virtual printing and RDPlug |

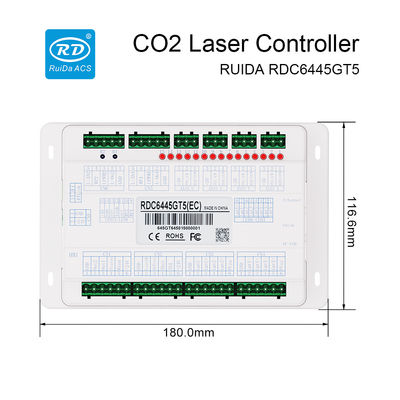

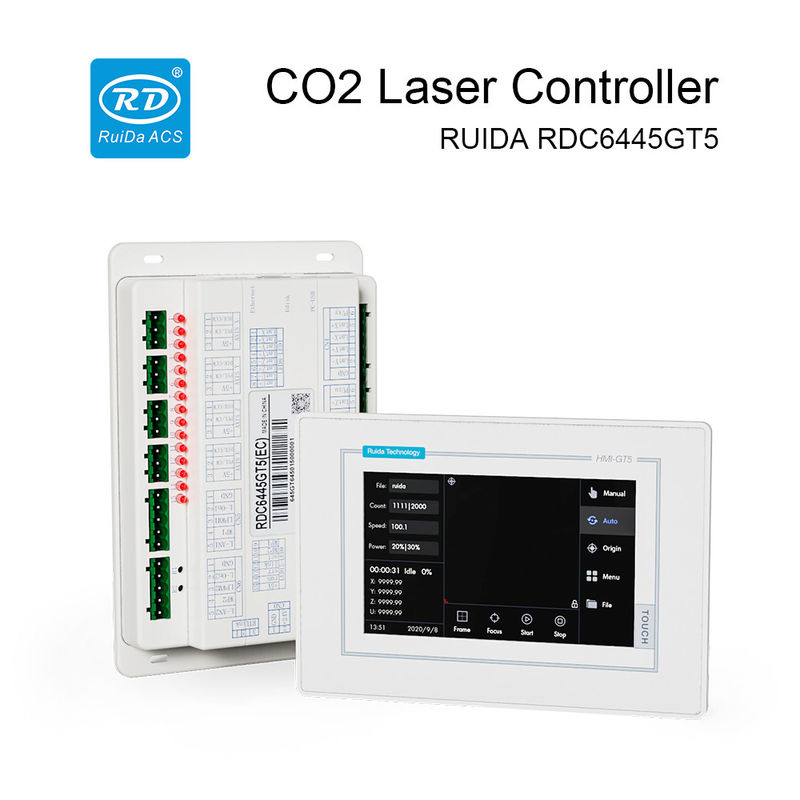

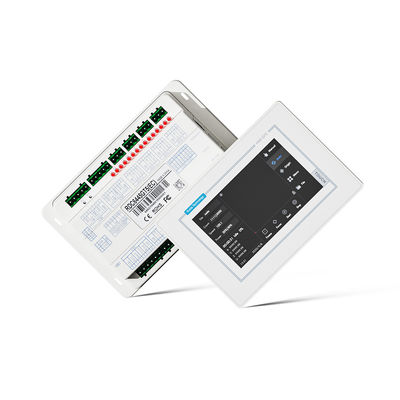

The RDC6445GT5 system is the CO2 laser engraving and cutting control system developed by Ruida Technology. The control system features enhanced hardware stability with superior high voltage and static resistance characteristics. The 5-inch color touch screen HMI provides a user-friendly interface with advanced functionality.
RDWorksV8 (free), plug-in software RDPlug, virtual printing and RDPlug.
Primarily designed for non-metal laser cutting and engraving applications including fabric, leather, wood, paper, acrylic, PMMA, rubber & plastics, and smartphone accessories.
