| Brand Name: | Ruida |
| Model Number: | LFS-PM-T43 |
| MOQ: | 50 |
| Price: | Negotiable - Inquire Within |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

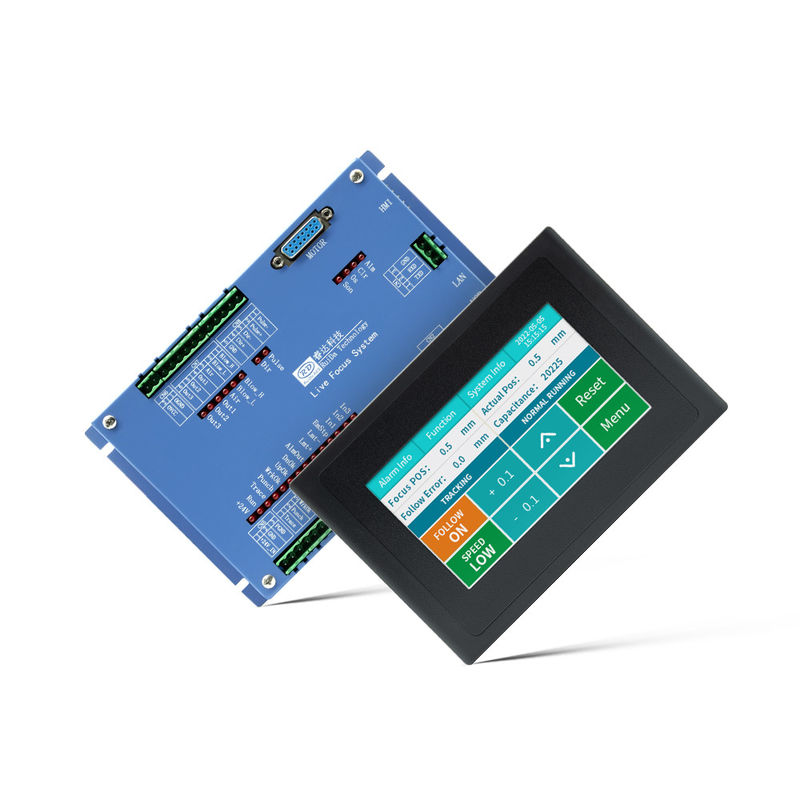

Ruida Metal Open Loop Capacitive Height Controller LFS-PM-T43
Discroption of LFS-PM-T43:
The LFS-PM-T43 is ideal for industries that require cutting of both metal and non-metal materials, offering superior height control, fast response times, and reliable performance.This controller's combination of intuitive user interface, high-speed motion, and real-time data display makes it an excellent choice for enhancing cutting precision and overall system efficiency.
Key functions and features::

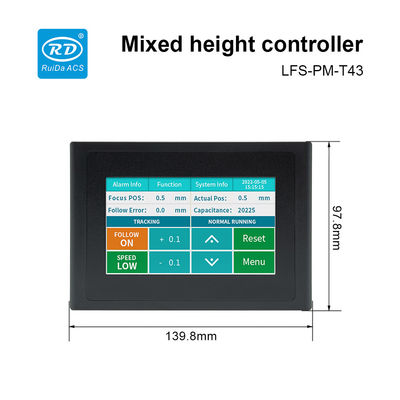

1. 4.3” Industrial TFT Color Touch Screen: Provides a user-friendly interface for easy operation and real-time status and data display.
2. Automatic Height Control: Achieves precise and accurate automatic height adjustments for mixed metal and non-metal cutting, ensuring optimal cutting quality.
3. High-Speed Motion and Response: Equipped with a high-performance amplifier and anti-interference design, it significantly increases the speed of motion and controller response for improved cutting efficiency.
4. Professional Anti-Interference Design: Reduces electrical interference, ensuring stable and reliable operation even in challenging industrial environments.
5. Real-Time Data Display: Offers real-time feedback on system status and cutting parameters, helping operators monitor and adjust as needed.
Technical Parameters:
| Brand | RUIDA |
| Model | LFS-PM-T43 |
| Touch Screen | 4.3” |
| Real-time adjustment of focus | Support |
| Motor | Servo motor and stepping motor |
| Control output | 1MHz |
| Laser cutting | Metal and non-metal mixed cutting |
| Sampling frequency | 1000Hz |
| Control speed | 600mm/s |
| Detection distance | 0.1mm-10mm |
| Focal length adjusts step | 0.1mm |
| Firmware upgrade | Online remote upgrade of U disk |
