Ruida Metal Open Loop Capacitive Height Controller Z Axis LFS-PM-T43

Name: Ruida Metal Open Loop Capacitive Height Controller Z Axis LFS-PM-T43
Brand: Shenzhen Ruida Technology Co., Ltd.
SKU: LFS-PM-T43
Price: 410.00 USD
Availability: InStock

Brand Name:	Ruida
Model Number:	LFS-PM-T43
MOQ:	50
Price:	Negotiable - Inquire Within
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Mainland China

Certification:

CE FCC ROHS

Brand:

RUIDA

Model:

LFS-PM-T43

Motion Controller:

RDC6332M

Motor:

Servo Motor And Stepping Motor

Control:

Z Axis

Laser Cutting:

Metal And Non-metal Mixed Cutting

Sampling Frequency:

1000Hz

Speed:

600mm/s

Detection Distance:

0.1mm-10mm

Dynamic Follow Accuracy:

≤0.1mm

Packaging Details:

Carton Packing

Highlight:

Open Loop Capacitive Height Controller

LFS-PM-T43 Controller

Z Axis Height Controller

Product Description

Ruida Metal Open Loop Capacitive Height Controller LFS-PM-T43

Discroption of LFS-PM-T43:

Application:

The LFS-PM-T43 is ideal for industries that require cutting of both metal and non-metal materials, offering superior height control, fast response times, and reliable performance.This controller's combination of intuitive user interface, high-speed motion, and real-time data display makes it an excellent choice for enhancing cutting precision and overall system efficiency.

Key functions and features::

1. 4.3” Industrial TFT Color Touch Screen: Provides a user-friendly interface for easy operation and real-time status and data display.

2. Automatic Height Control: Achieves precise and accurate automatic height adjustments for mixed metal and non-metal cutting, ensuring optimal cutting quality.

3. High-Speed Motion and Response: Equipped with a high-performance amplifier and anti-interference design, it significantly increases the speed of motion and controller response for improved cutting efficiency.

4. Professional Anti-Interference Design: Reduces electrical interference, ensuring stable and reliable operation even in challenging industrial environments.

5. Real-Time Data Display: Offers real-time feedback on system status and cutting parameters, helping operators monitor and adjust as needed.

Technical Parameters:

Brand	RUIDA
Model	LFS-PM-T43

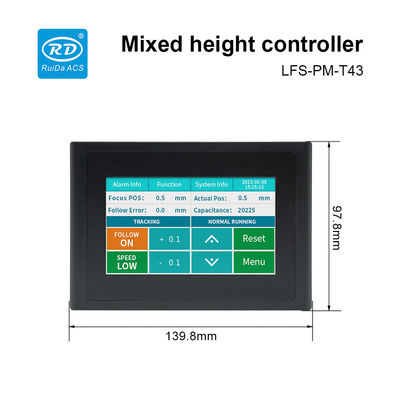

Touch Screen	4.3”
Real-time adjustment of focus	Support
Motor	Servo motor and stepping motor
Control output	1MHz
Laser cutting	Metal and non-metal mixed cutting
Sampling frequency	1000Hz
Control speed	600mm/s
Detection distance	0.1mm-10mm
Focal length adjusts step	0.1mm
Firmware upgrade	Online remote upgrade of U disk

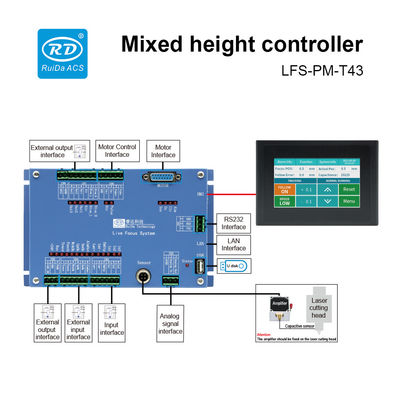

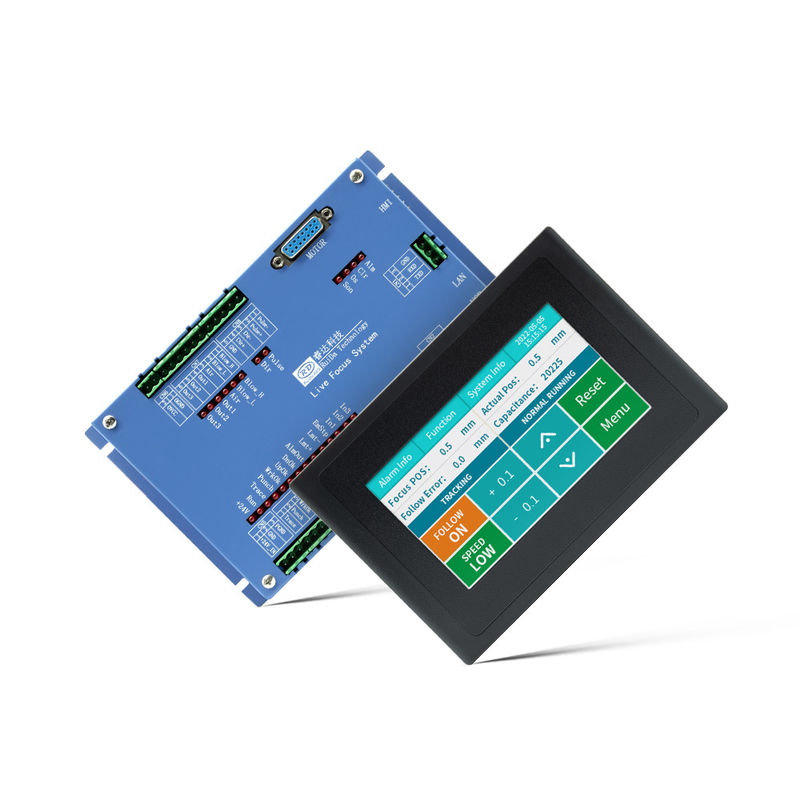

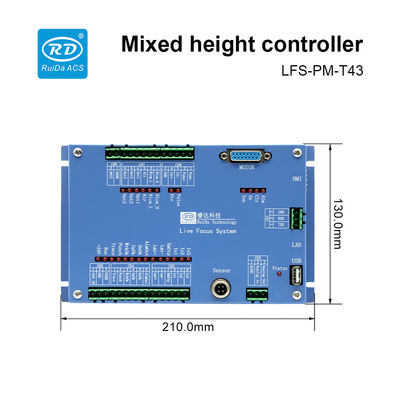

Ruida Metal Open Loop Capacitive Height Controller Z Axis LFS-PM-T43 0

Ruida Metal Open Loop Capacitive Height Controller Z Axis LFS-PM-T43 2
