RUIDA Double Beam Large Format Visual Cutting System Controller RDC6685U-DFM

Name: RUIDA Double Beam Large Format Visual Cutting System Controller RDC6685U-DFM
Brand: Shenzhen Ruida Technology Co., Ltd.
SKU: RDC6685U-DFM
Price: 410.00 USD
Availability: InStock

Brand Name:	RUIDA
Model Number:	RDC6685U-DFM
MOQ:	50
Price:	Negotiable - Inquire Within
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Detail Information

Product Description

Detail Information

Place of Origin:

Mainland China

Certification:

CE FCC ROHS

Axis:

Fireware:

Support The Remote Upgrade Of Mainboard

Laser Channel:

Laser Source:

CO2 Glass Tube, CO2 RF Tube And UV Lasers

Encryption:

Support

Onboard Clock:

Support (support The Modification Of Time)

Panel:

5'' Color Screen + Keys

Multi-head Synchronous:

Double Coordinates System Control, Support Double Head Asynchronous And Synchronous

Communication:

Ethernet, USB And WIFI (optional)

Feeding:

U Axis Feeding/ Y And U Axes Feeding Synchronously, Sheet Feeding/large Format Segmentation Feeding

Packaging Details:

Carton Packing

Supply Ability:

100 sets/day

Highlight:

Visual Cutting System Controller

Large Format Cutting System Controller

RDC6685U-DFM Controller

Product Description

RUIDA RDC6685U-DFM Double Beam Large Format Visual Cutting System for CO2 Laser Engraving Cutting Machine

Discroption of RDC6685U-DFM:

RDC6685U-DFM system is the latest generation of double X/Y coordinate system controllers developed by Ruida Technology. It adopts double coordinate systems control technology to realize synchronous start of double heads and perform asynchronous cutting, which is independent of each other. It supports the collision prevention function of automation and ultra-wide segmentation cutting function to provide a perfect solution for the large graphic and batch processing of clothing, leather and fabric.

Product Feature:

1. Standalone operation. Support USB and Ethernet communication and U flash disk.
2. With rich laser interfaces and external IO resources.
3. Double coordinate systems and beamsdouble beams work synchronously, support double heads asynchronously and synchronously processing.
4. Support automatic feeding and ultra-wide panoramic visual cutting.
5. Suitable for laser cutting with high efficiency in large graphics and large-scale graphics of clothing, leather, fabric industries.

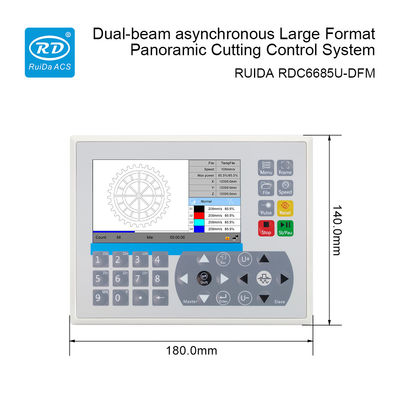

RUIDA Double Beam Large Format Visual Cutting System Controller RDC6685U-DFM 0

Software RDVision(Free)

The RDVisionWorks,a large format intelligent visual cutting software,can take the image in the whole plane of the machine at one time,extract the contour of the image,or to do template matching recognition by create templates.The software also supports the full automation processing of feeding,photography,identification and cutting.

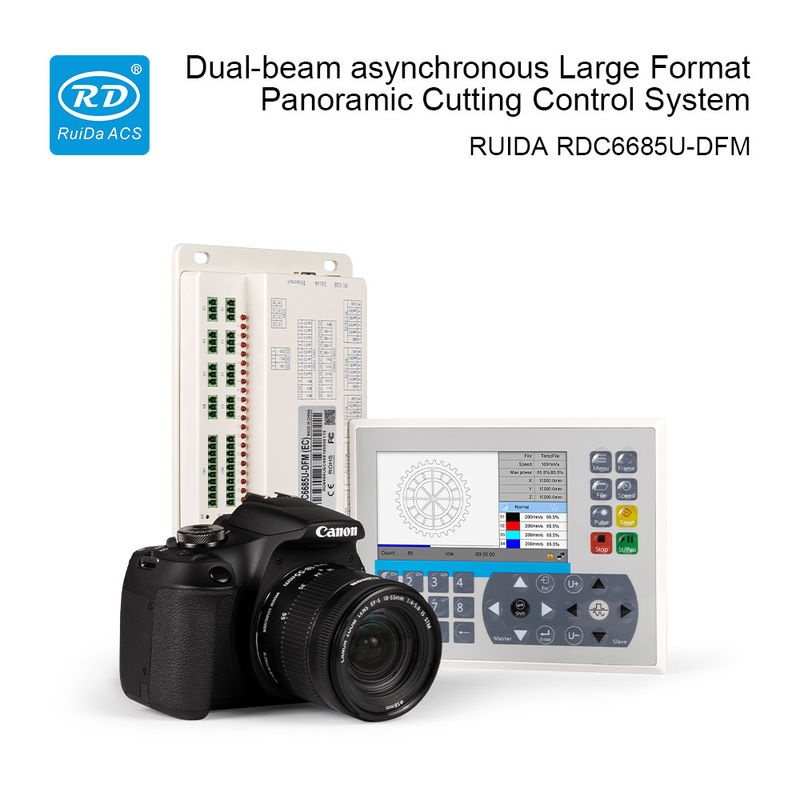

RUIDA Double Beam Large Format Visual Cutting System Controller RDC6685U-DFM 1

Technical Parameters:

Parameters	RDC6685U-DFM
Laser source	CO2 glass tube, CO2 RF tube and UV lasers
Axis	8
Laser channel	4
Multi-head synchronous	Double coordinates system control, support double head asynchronous and synchronous
Communication	Ethernet, USB and WIFI (optional)
Panel	5” color screen + keys
Feeding	U axis feeding/ Y and U axes feeding synchronously, sheet feeding/large format segmentation feeding
Encryption	Support
Onboard clock	Support (support the modification of time)
Firmware	Remote upgrade of panel and mainboard program
Cutting	Large-format visual cutting, Mark point vision and projection cutting
Camera	24 megapixels resolution, 10-18mm and 18-55mm focal length are available.
Engraving	Plane engraving, slope engraving and gray engraving
Software	UnionLaser,RDWorksV8,RDVisionWorks
Language	Including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian
Size	Panel:L180mmW140mmH42.1mm Mainboard:L236W137H33.5mm
Accessories	Wireless handle and RD-WIFI

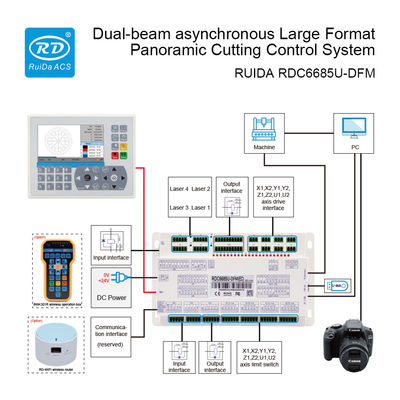

RUIDA Double Beam Large Format Visual Cutting System Controller RDC6685U-DFM 2
