RDV6555G-NET CO2 Laser Vision Controller Cutting Control System For Non Metal Thin Film Materials

Name: RDV6555G-NET CO2 Laser Vision Controller Cutting Control System For Non Metal Thin Film Materials
Brand: Shenzhen Ruida Technology Co., Ltd.
SKU: RDV6555G-NET
Price: 410.00 USD
Availability: InStock

Brand Name:	RUIDA
Model Number:	RDV6555G-NET
MOQ:	50
Price:	Negotiable - Inquire Within
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Detail Information

Product Description

Detail Information

Place of Origin:

Mainland China

Certification:

CE FCC ROHS

Brand:

RUIDA

Laser Source:

CO2 Glass Tube, CO2 RF Tube And UV Lasers

Axis:

Y Axis Double Drive:

Support Dual-drive Output And Have Synchronous Protection Function

Laser Channel:

Laser Control:

Support PSO, PSV, PSP, FSP Laser Control Methods

Language:

Cutting:

Mark Point Vision Positioning

Software:

LSWorks

Camera:

Network Interface Camera, 1.3 And 5 Megapixels Are Available

Communication:

Ethernet, USB

Panel:

5''color Screen + Keys Or 7''touch Screen

Packaging Details:

Carton Packing

Supply Ability:

100 sets/day

Highlight:

RUIDA Cutting Control System

Non Metal CO2 Laser Vision Controller

Thin Film Cutting Control System

Product Description

RUIDA RDV6555G-NET CO2 Laser Vision Controller The Cutting Control System For Non-Metal Thin Film Materials

Discroption of RDV6555G-NET :

The RDV6555G-NET from Ruida Technology is an upgraded version of the RDC6555G, equipped with a network camera for capturing images through Mark point technology. It ensures high hardware stability, advanced motion control, and protection against high voltage and static. With a user-friendly 5-inch LCD, the RDV6555-NET is optimized for precision cutting tasks, delivering accuracy and efficiency in various material processing applications.

Product Features:

1.Self-Contained System: Offers integrated dual-drive motion control for standalone operations.
2.Advanced Laser Functionality: Includes PSO function for enhanced laser control.
3.Precise Cutting Capabilities: Equipped with algorithms for accurate full and half-cut operations.
4.Mark Point Technology: Supports visual positioning and array processing with Mark point technology.
5.Specialized for Non-Metal Films: Ideal for precision cutting of non-metallic thin film materials.

RDV6555G-NET CO2 Laser Vision Controller Cutting Control System For Non Metal Thin Film Materials 0

Software LSWorks(Free)

Support PLT,DXF,AI,DST and other file formats,disaplay and edit functions,support image file import and processing.

Technical Parameters:

Parameters	RDV6555G-NET
Laser source	CO2 glass tube, CO2 RF tube and UV lasers
Y axis double drive	Support dual-drive output and have synchronous protection function
Laser control	Support PSO, PSV, PSP, FSP laser control methods
Axis	5
Laser channel	1
Communication	Ethernet, USB

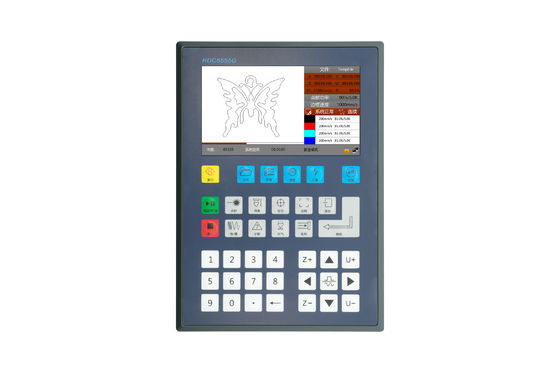

Panel	5” color screen + keys and 7” touch screen is optional
Feeding	Support visual array processing and roll to roll cutting

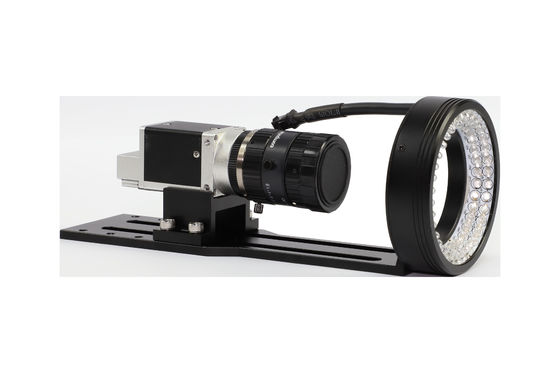

Camera	Cameras of 1.3 and 5 megapixels are available. Lens of 8~12mm are available
Light source	LED red and white circular light source
Cutting	Mark point vision positioning cutting
Engraving	Support
Encryption	Support
Onboard clock	Support
Firmware	Support the remote upgrade of mainboard and panel program
Software	LSWorks
Language	Including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian, Japanese

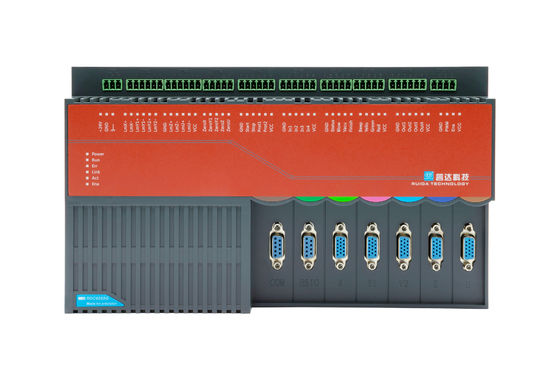

Size	Panel: L202mmW145mmH42.1mm Mainboard: L270mmW157mmH55mm

Application:

Suitable for precision cutting of non-metal thin film materials, ceramic and high molecular materials, including GDF film, peep-proof protection film, lens film, handwriting film, polarizing film, touch screen and flexible OLED, etc.

RDV6555G-NET CO2 Laser Vision Controller Cutting Control System For Non Metal Thin Film Materials 2

RDV6555G-NET CO2 Laser Vision Controller Cutting Control System For Non Metal Thin Film Materials 3
