RDC6585G Multi-head CO2 Laser Controller with 8-Axis Motion Control

RDC6585G Multi-head CO2 Laser Controller with 8-Axis Motion Control

Brand Name: RUIDA
Model Number: RDC6585G
MOQ: 1
Price: Negotiable - Inquire Within
Payment Terms: L/C,D/A,D/P,T/T,MoneyGram,Western Union
Supply Ability: 100 sets/day
Detail Information
Place of Origin:
Mainland China
Certification:
CE FCC ROHS
Laser Source:
CO2 Glass Tube, CO2 RF Tube And UV Lasers
Axis:
8
Laser Channel:
6
Communication:
Ethernet, USB And WIFI (optional)
Panel:
5” Color Screen + Keys
Feeding:
U Axis Feeding/ Y And U Axes Feeding Synchronously, Sheet Feeding/large Format Segmentation Feeding
Encryption:
Support
Firmware:
Support The Remote Upgrade Of Mainboard And Panel Program
Multi-head Synchronous:
Support Double, Three, Four, Five And Six Heads Synchronous
Rotary:
Y Axis Rotation
Engraving:
Plane Engraving, Slope Engraving And Gray Engraving
Processing:
Support Resume Processing After Power Failure
Software:
RDWorksV8, Plug-in Software RDPlug, Virtual Printing And RDImage
Language:
Including Simplified Chinese, Traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian
Packaging Details:
Carton Packing
Supply Ability:
100 sets/day
Highlight:

8-axis CO2 laser controller

,

multi-head laser motion control

,

CO2 laser controller with warranty

Product Description
RDC6585G Multi-head Synchronous Laser Controller
Product Specifications
Laser source CO2 glass tube, CO2 RF tube and UV lasers
Axis 8
Laser channel 6
Communication Ethernet, USB and WIFI (optional)
Panel 5" color screen + keys
Feeding U axis feeding/ Y and U axes feeding synchronously, sheet feeding/large format segmentation feeding
Encryption Support
Firmware Support the remote upgrade of mainboard and panel program
Multi-head synchronous Support double, three, four, five and six heads synchronous
Rotary Y axis rotation
Engraving Plane engraving, slope engraving and gray engraving
Processing Support resume processing after power failure
Software RDWorksV8, plug-in software RDPlug, virtual printing and RDImage
Language Including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian
Product Overview

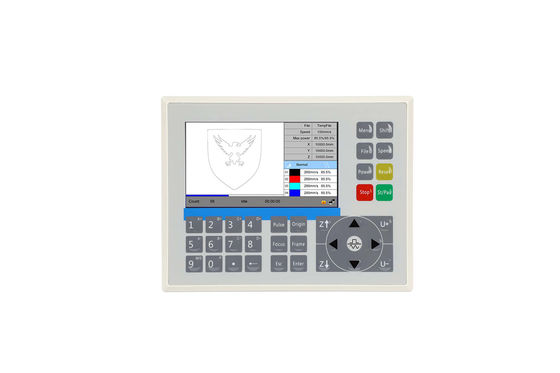

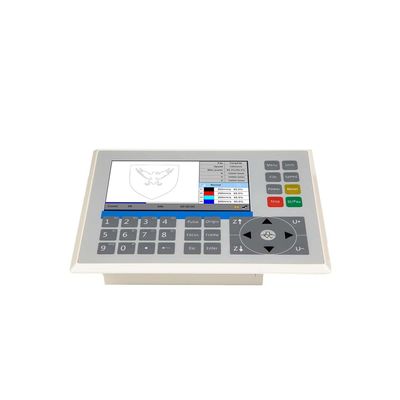

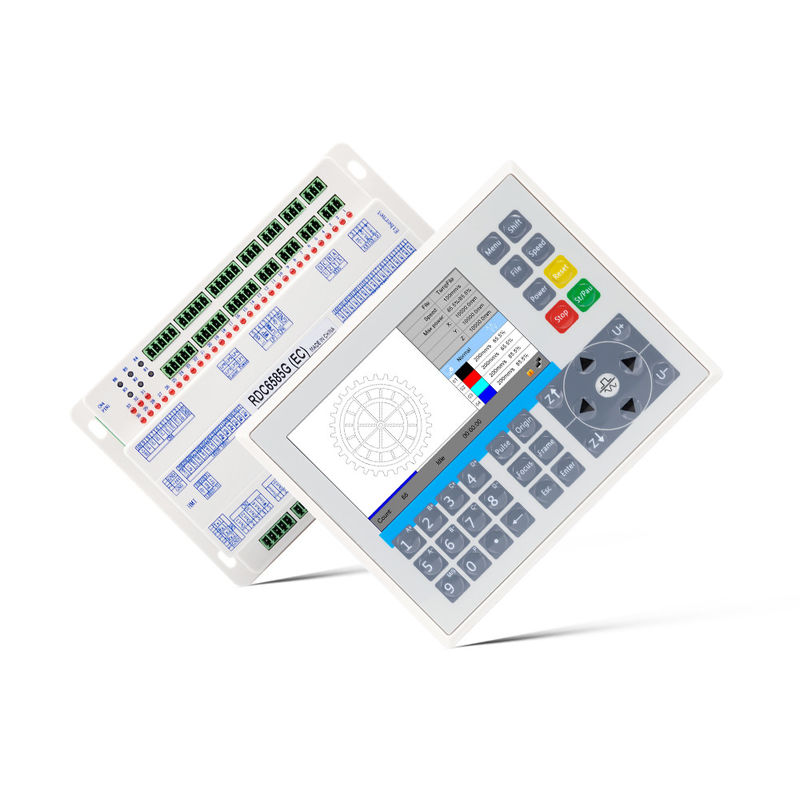

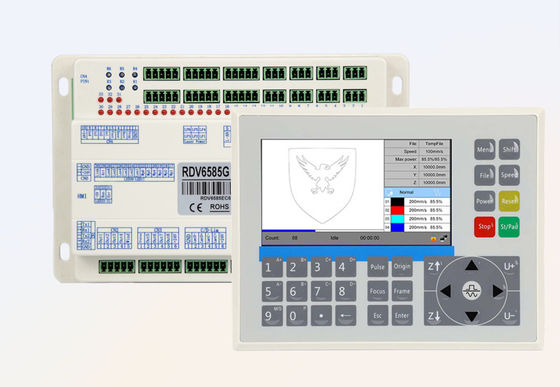

The RDC6585G from Ruida Technology is an advanced multi-head synchronous laser control system featuring an intuitive 5-inch color touchscreen interface. This high-performance controller offers comprehensive motion control with multiple connectivity options, excelling in both laser processing and adhesive spraying applications for precision manufacturing.
RDC6585G Multi-head CO2 Laser Controller with 8-Axis Motion Control 0
Key Features
  • 5" color touchscreen with physical keys for intuitive operation
  • 8-axis motion control with 6 independent laser channels
  • Synchronization support for 2-6 laser heads
  • Ideal for clothing, leather, digital cropping, advertising, printing and 3C industries
  • Compatible with RDWorksV8 software for efficient image processing
Included Software
RDWorks V8 (Free) supports PLT, DXF, AI, DST and other file formats with comprehensive import, display and editing functions. The software also includes image processing capabilities.
RDC6585G Multi-head CO2 Laser Controller with 8-Axis Motion Control 1 RDC6585G Multi-head CO2 Laser Controller with 8-Axis Motion Control 2
