| Brand Name: | RUIDA |
| Model Number: | RDC6612U-DFM |
| MOQ: | 1 |
| Price: | Negotiable - Inquire Within |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 1500sets/day |
| Attribute | Value |
|---|---|
| Brand | RUIDA |
| Model | RDD6612U-DFM |
| Axis | 12 |
| Laser Channel | 8 |
| Laser source | CO2 glass tube, CO2 RF tube, and UV lasers |
| Onboard clock | Support (support the modification of time) |
| Firmware | Remote upgrade of panel and mainboard program |
| Camera | 18 megapixels SLR camera |
| Cutting | Ordinary cutting; Large-format visual cutting, Mark point vision and projection cutting |
| Software | RDWorksV8, UnionLaser, RDVisionWorks |

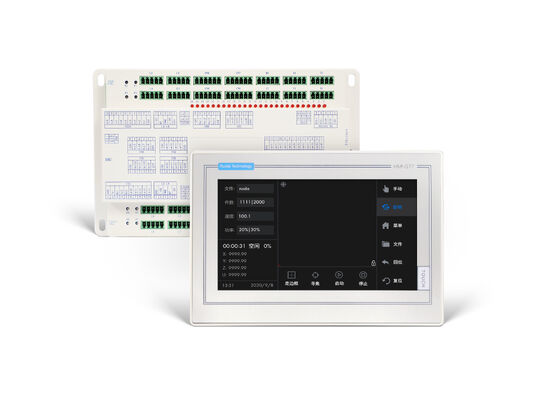

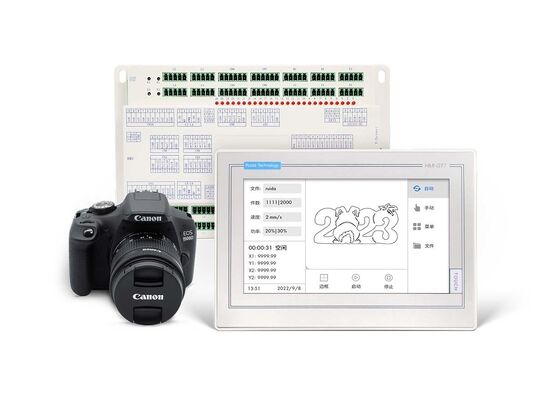

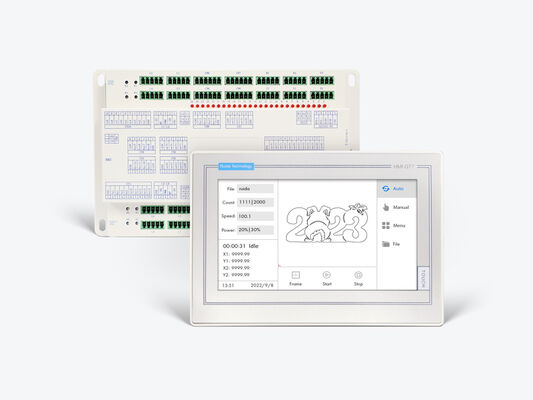

The RDC6612U(-DFM) system from Ruida Technology is a state-of-the-art dual X/Y coordinate controller designed for high-performance cutting applications. The RDC6612U provides standard dual-coordinate control, while the RDC6612U-DFM adds advanced panoramic vision for enhanced precision and control.
Leveraging dual-coordinate technology, this system enables asynchronous cutting with double beams or cantilevers and supports up to four laser heads per XY coordinate system for synchronized operation. The RDC6612U(-DFM) also includes automatic collision avoidance and an optimized graphics management algorithm for balanced task distribution, improving overall efficiency.
Ideal for large-scale, high-speed processing, this system is well-suited for industries such as garment, leather, and fabric, providing an optimal solution for large-format graphics and high-volume production.
