| Brand Name: | Ruida |
| Model Number: | RDC6555PJ |
| MOQ: | 1 |
| Price: | Negotiable, contact us |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

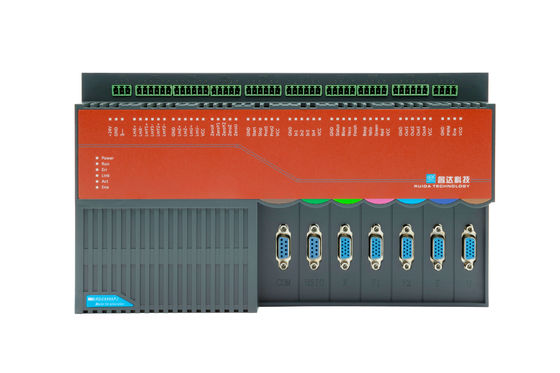

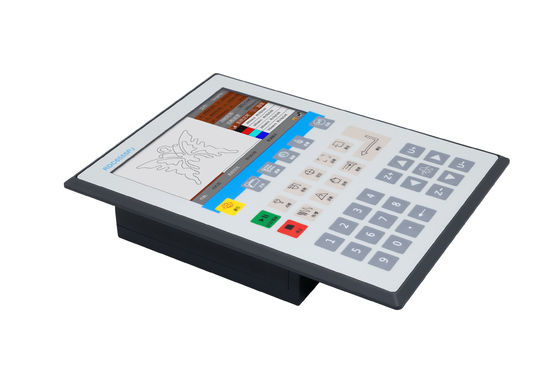

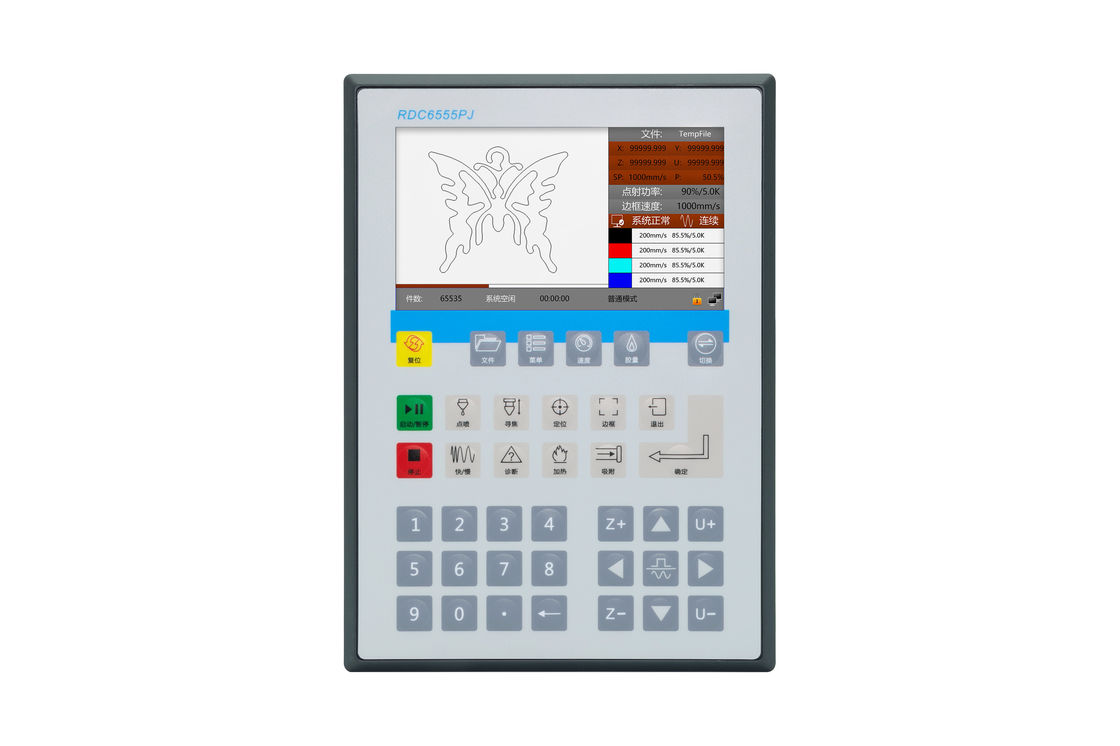

Ruida Controller RDC6555PJ Precision Spray and dispenser Painting Line Control System
Description Of Ruida Controller RDC6555PJ
The RDC6555PJ is Ruida Technology’s next-generation glue spraying and line drawing control system, engineered for high-precision, high-efficiency industrial applications. Powered by a 5-inch LCD human-machine interface, it delivers more advanced motion control performance and an optimized spraying algorithm for smoother, more stable output. In addition, the system integrates multiple versatile general and dedicated IO interfaces, along with an extended peripheral serial interface, ensuring seamless compatibility with PJWorks software and maximizing operational flexibility and productivity.
| Parameter | RDC6555PJ |
| Nozzle | Support solenoid and piezoelectric valves |
| Y axis double drive | Support dual drive output and have synchronous protection function |
| Spray Control | Support the synchronous output of the encoder position |
| Axis | 5 |
| Nozzle Channel | 1 |
| Communication interface | Ethernet, USB |
| Panel | 5” color screen |
| Feeding | Support |
| Camera | None |
| Light source system | None |
| Installment encryption | Support |
| Onboard clock | Support |
| Firmware upgrade | Remote upgrade of panel and mainboard program |
| Software | PJWorks |
| Operating system | WinXP, Win7, Win8, Win10, 32-bit or 64-bit |
| Language | 12 languages including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, and Italian |
| Size | Panel: L202mm*W145mm*H42.1mm Mainboard: L270mm*W157mm*H55mm |
Key Function
(1) Supports negative limit and origin signal return-to-zero for precise positioning control
(2) Supports encoder signal detection with real-time monitoring of position and speed
(3) Supports servo driver following error alarm for enhanced system safety
(4) Supports synchronous error alarm for gantry dual-drive systems
(5) Supports external start, pause/continue, and stop control for flexible operation
(6) Supports raster protection and cover protection for improved operational safety
(7) Supports 4 general-purpose input IO interfaces for versatile system integration
Application Fields
Suitable for glue spray, dispensing, drawing lines and laser cutting in clothing, leather, toys, shoes and 3C industries.
Software
PJWorks
