RUIDA Laser Controller LFS-PM-T43 Automatic Height Control System Metal Non Metal Cutting

Name: RUIDA Laser Controller LFS-PM-T43 Automatic Height Control System Metal Non Metal Cutting
Brand: Shenzhen Ruida Technology Co., Ltd.
SKU: LFS-PM-T43
Price: 410.00 USD
Availability: InStock

Brand Name:	RUIDA
Model Number:	LFS-PM-T43
MOQ:	50
Price:	Negotiable - Inquire Within
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Detail Information

Product Description

Detail Information

Place of Origin:

Mainland China

Certification:

CE FCC ROHS

Control Method:

Pulse

Communication:

Ethernet, RS232

Control Output:

1MHz

Detection Distance:

0.1mm-10mm

Sampling Frequency:

1000Hz

Motor:

Stepper And Servo Motors

Control Speed:

600mm/s

Laser Cutting:

Metal And Non-metal Mixed Cutting

Dynamic Follow Accuracy:

≤0.1mm

Panel:

4.3''and 7'' Touch Screens Are Available

Packaging Details:

Carton Packing

Supply Ability:

100 sets/day

Highlight:

LFS-PM-T43 Controller

RUIDA Automatic Height Control System

Laser Automatic Height Control System

Product Description

RUIDA LFS-PM-T43 Automatic Height Control System

Discroption of LFS-PM-T43:

LFS-PM-T43 automatic height controller is specially used for the mixed metal and non-metal cutting developed by Shenzhen Ruida Technology Co., LTD. Equipped with 4.3” industrial TFT color touch screen with friendly operating interface, it can display the status and data in real time. Besides, it adopts a high performance amplifier and professional anti-interference design to greatly increase the speed of motion and response of the height controller and achieve the accurate automatic height control.

Product feature:

1. Adopt capacitive sensing technology to realize the automatic calibration function of capacitance parameter and match with any cutting head.
2. Support many protection functions such as collision alarm, limit protection and servo alarm.Online modification and real-time position detection of focus position. The capacitance detection range is from 0 to 9.9mm.
3. Real-time motion status display of the cutting head and alarm information prompt.
4. Support settings of various lifting height and speed to make different ways of cutting more convenient.
5. Support step pierce, low voltage pierce, step pierce, frog and lifting functions working with Ruida controller.

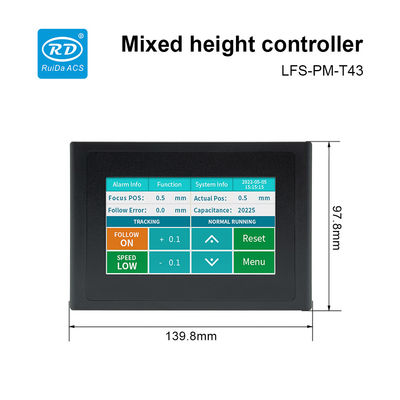

RUIDA Laser Controller LFS-PM-T43 Automatic Height Control System Metal Non Metal Cutting 0

Software MetalCute(Free)

Support PLT,DXF,AI,DST and other file formats import,display and edit functions,support image file import and processing.

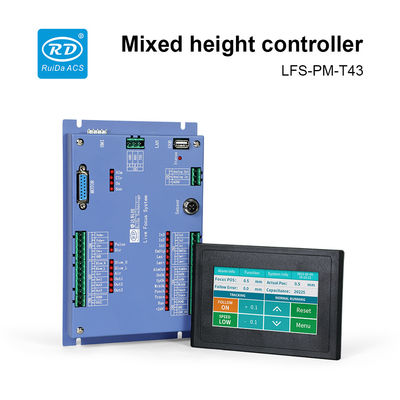

RUIDA Laser Controller LFS-PM-T43 Automatic Height Control System Metal Non Metal Cutting 1

Technical Parameters:

Parameters	LFS-PM-T43
Panel	4.3” and 7” touch screens are available
Communication	Ethernet, RS232
Control method	Pulse
Motor	Stepper and servo motors
Control output	1MHz
Laser cutting	Metal and non-metal mixed cutting
Sampling frequency	1000Hz
Control speed	600mm/s
Detection distance	0.1mm-10mm
Dynamic follow accuracy	≤0.1mm
Real-time adjustment of focus	Support
Focal length adjusts step	0.1mm
Firmware	Online remote upgrade of U disk
Software	RDCutist, support punching, lead, bridge and micro
Language	Chinese, English
Size	Panel: L139.8mmW97.8mmH22.2mm Mainboard: L210mmW130mmH28mm

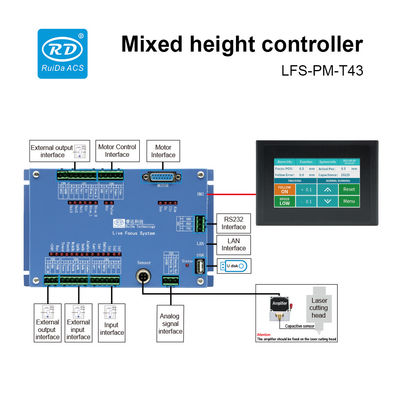

RUIDA Laser Controller LFS-PM-T43 Automatic Height Control System Metal Non Metal Cutting 2

RUIDA Laser Controller LFS-PM-T43 Automatic Height Control System Metal Non Metal Cutting 3
