RUIDA RDV6555G-NET CO2 Laser Vision Cutting Controller China

Name: RUIDA RDV6555G-NET CO2 Laser Vision Cutting Controller China
Brand: Shenzhen Ruida Technology Co., Ltd.
SKU: RDV6555G-NET
Price: 410.00 USD
Availability: InStock

Brand Name:	RUIDA
Model Number:	RDV6555G-NET
MOQ:	1
Price:	Negotiable - Inquire Within
Payment Terms:	L/C,D/P,D/A,T/T,Western Union,MoneyGram
Supply Ability:	100 sets/day

Detail Information

Product Description

Detail Information

Place of Origin:

Mainland China

Certification:

CE FCC ROHS

Laser Source:

CO2 Glass Tube, CO2 RF Tube And UV Lasers

Y Axis Double Drive:

Support Dual-drive Output And Have Synchronous Protection Function

Laser Control:

Support PSO, PSV, PSP, FSP Laser Control Methods

Axis:

Laser Channel:

Communication:

Ethernet, USB

Panel:

5” Color Screen + Keys And 7” Touch Screen Is Optional

Feeding:

Support Visual Array Processing And Roll To Roll Cutting

Camera:

Cameras Of 1.3 And 5 Megapixels Are Available.

Light Source:

LED Red And White Circular Light Source

Cutting:

Mark Point Vision Positioning Cutting

Engraving:

Support

Encryption:

Support

Onboard Clock:

Support

Firmware:

Support The Remote Upgrade Of Mainboard And Panel Program

Software:

LSWorks

Language:

Simplified Chinese, Traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian, Japanese

Size:

Panel: L202mm*W145mm*H42.1mm Mainboard: L270mm*W157mm*H55mm

Packaging Details:

Carton Packing

Supply Ability:

100 sets/day

Product Description

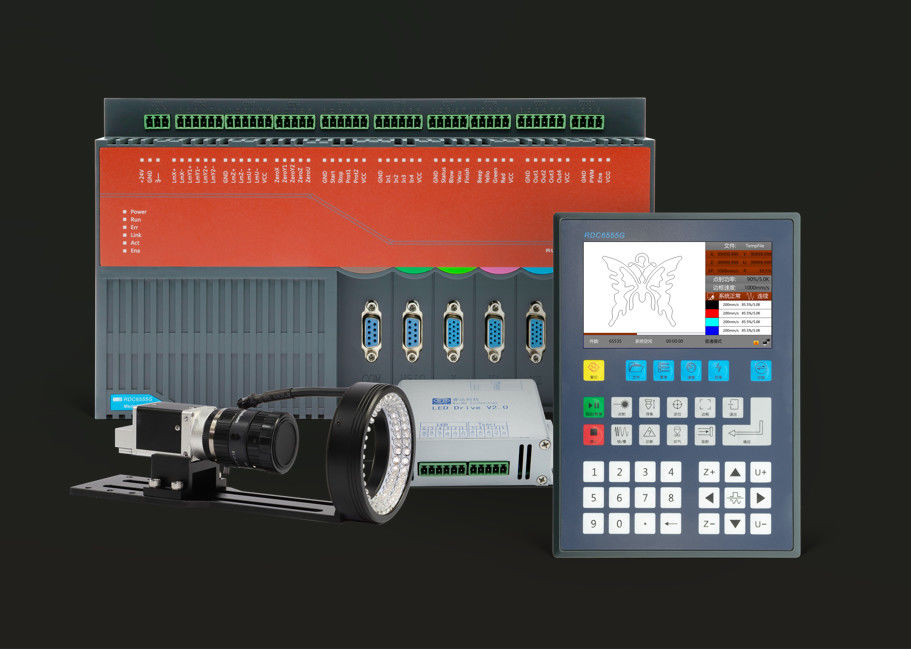

RUIDA RDV6555G-NET CO2 Laser Vision Controller The Cutting Control System For Accurate Cutting

Discroption of RDV6555G-NET :

The RDV6555G-NET is an advanced vision-guided cutting control system developed by Ruida Technology, building upon the robust foundation of the RDC6555G. This system incorporates a network camera and utilizes Mark point technology for image capturing, enhancing its precision in film cutting applications. It boasts improved hardware stability, a rich array of motion control design schemes, and superior resistance to high voltage and electrostatic interference, ensuring reliable operation in various industrial environments. The RDV6555-NET's human-machine operating system, based on a 5-inch LCD, offers a user-friendly interface coupled with powerful functionality, making it an optimal choice for high-precision cutting tasks. With its advanced vision system, it supports MARK point visual positioning cutting and array processing, catering to the needs of non-metal thin film materials, ceramics, and high molecular materials with accuracy and efficiency.

Product Features:

1.Self-Contained System: Offers integrated dual-drive motion control for standalone operations.
2.Advanced Laser Functionality: Includes PSO function for enhanced laser control.
3.Precise Cutting Capabilities: Equipped with algorithms for accurate full and half-cut operations.
4.Mark Point Technology: Supports visual positioning and array processing with Mark point technology.
5.Specialized for Non-Metal Films: Ideal for precision cutting of non-metallic thin film materials.

RUIDA RDV6555G-NET CO2 Laser Vision Cutting Controller China 0

Software LSWorks(Free)

Support PLT,DXF,AI,DST and other file formats,disaplay and edit functions,support image file import and processing.

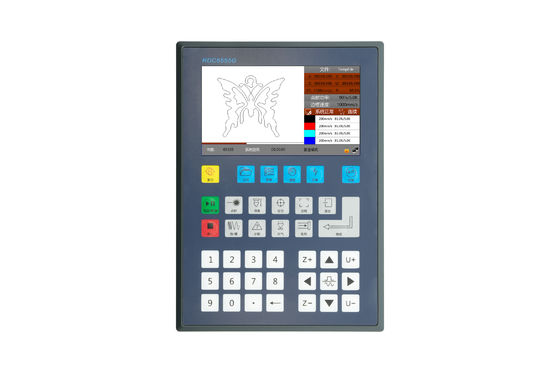

RUIDA RDV6555G-NET CO2 Laser Vision Cutting Controller China 1

Application:

Suitable for precision cutting of non-metal thin film materials, ceramic and high molecular materials, including GDF film, peep-proof protection film, lens film, handwriting film, polarizing film, touch screen and flexible OLED, etc.

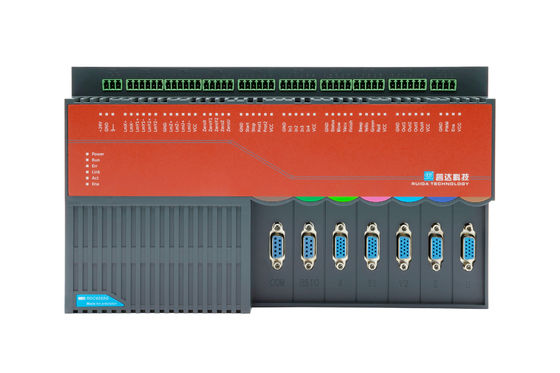

RUIDA RDV6555G-NET CO2 Laser Vision Cutting Controller China 2

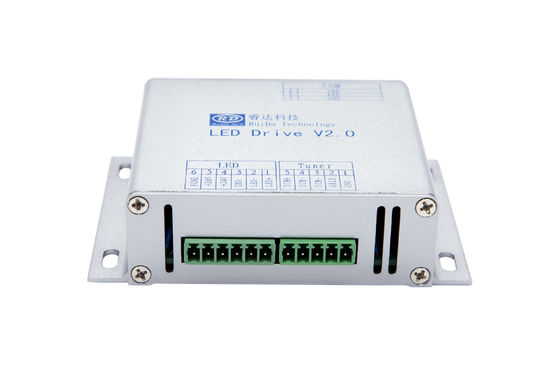

RUIDA RDV6555G-NET CO2 Laser Vision Cutting Controller China 3
