Double Beam Large Visual Oscillating Knife Cutting Machine Controller Ruida RDD6584U-DFM

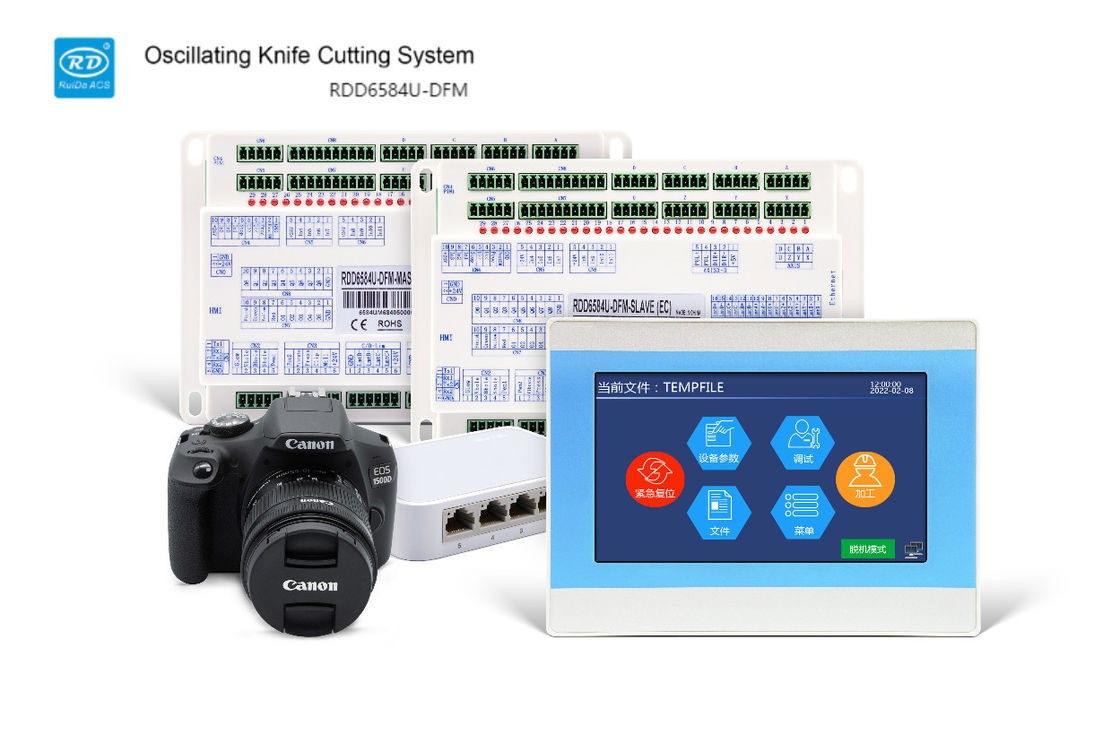

Ruida Controller RDD6584U-DFM Double Beam Large Visual Oscillating Knife Cutting System

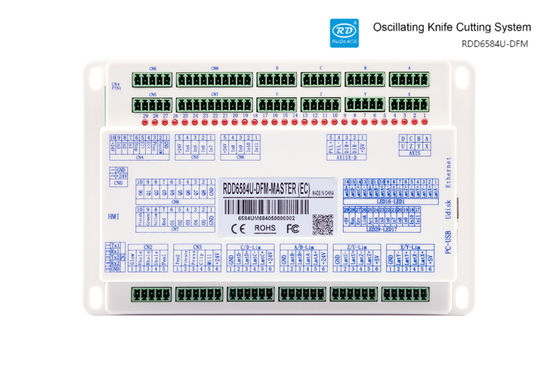

Description Of Ruida Controller RDD6584U-DFM

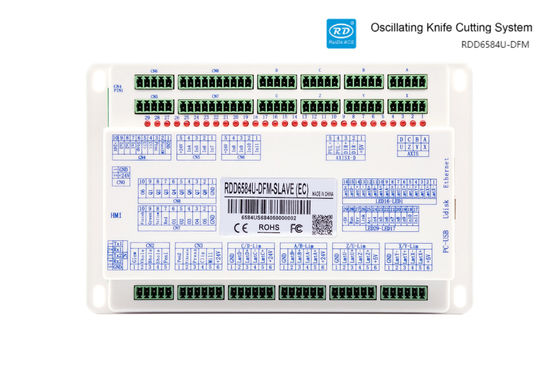

RDD6584U-DFM is a dual coordinate system tool cutting controller with tool direction following control function independently developed by Ruida technology. RDD6584U-DFM integrates the processing methods of vibrating cutter, circular cutter, milling cutter, pressing wheel and other tools. Besides, it integrates automatic feeding, ultra-wide segmentation cutting, circular punching without direction, V-shaped punching with direction, brush processing and red light positioning. The controller supports double coordinate systems asynchronous processing in double beams ( dual Y axes) or double cantilevers mode (dual X axes). In the meanwhile, all the coordinate systems support synchronous processing. What’s more, it supports Mark point vision positioning cutting, large format panoramic visual cutting and projection cutting.

Key Function

• Dual Coordinate System:

(1)Supports asynchronous processing in double beams (dual Y axes) or double cantilevers (dual X axes).
(2)All coordinate systems can operate in synchronous processing mode, improving productivity.

• Integrated Tool Processing Methods:Vibrating cutter, circular cutter, milling cutter, pressing wheel
• Advanced Cutting Functions:

(1)Automatic Feeding: Streamlines material handling and increases efficiency.
(2)Ultra-Wide Segmentation Cutting: Allows for cutting of larger materials.
(3)Circular Punching: Enables versatile punching without alignment restrictions.
(4)V-Shaped Punching: Ensures precision where directional control is required.
(5)Brush Processing: Enhances the finish of cut materials.
(6)Red Light Positioning: Facilitates accurate alignment and positioning during cutting operations.

• Vision Positioning Capabilities:

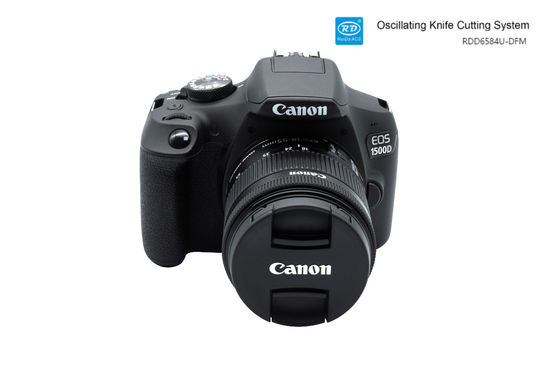

(1)Mark Point Vision Positioning Cutting: Provides precise cutting based on visual markers.
(2)Large Format Panoramic Visual Cutting: Supports cutting of extensive designs with accuracy.
(3)Projection Cutting: Allows for cutting based on projected images, enhancing design flexibility.

Application Fields

(1)Textiles and Clothing
(2)Upholstery and Furniture
(3)Digital Printing and Advertising
(4)Curtain Fabrics
(5)Luggage and Accessories
(6)Footwear Production

Software

VCutWorks+RDVisionWorks-Vcut
