RUIDA RDD6584G Controller for Oscillating Knife Cutter Vibration Knife Milling Cutter

Name: RUIDA RDD6584G Controller for Oscillating Knife Cutter Vibration Knife Milling Cutter
Brand: Shenzhen Ruida Technology Co., Ltd.
SKU: RDD6584G
Price: 410.00 USD
Availability: InStock

Brand Name:	Ruida
Model Number:	RDD6584G
MOQ:	50
Price:	Negotiable - Inquire Within
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Detail Information

Product Description

Detail Information

Place of Origin:

Mainland China

Certification:

SIT200512230104S

Brand:

RUIDA

Model:

RDD6584G

Axis:

Multi-head Synchronous:

Support Double, Three, Four, Five And Six Heads Synchronous

Input And Output:

32/28

Communication:

Ethernet, USB And WIFI (optional)

Panel:

7'' Touch Screen

Tool:

Vibration Knife, Round Knife, Milling Cutter, Press Wheel, Round Punching, V-shaped Punching, Brush Processing, Red Light Positioning

Cutting:

Ordinary Cutting

Feeding:

Support X/Y/U Axis Feeding Independently Or Y And U Axes Feeding Synchronously

Packaging Details:

300*340*110

Supply Ability:

100 sets/day

Highlight:

Vibration Knife Milling Cutter Controller

Oscillating Knife Cutter Control System

RDD6584G Controller

Product Description

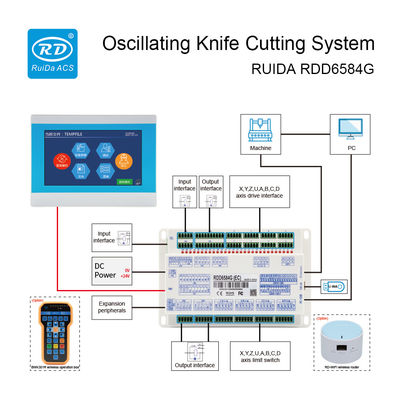

RUIDA RDD6584G Oscillating Knife Cutting Controller with Integration of Vibration Knife Round Knife and Milling Cutter

Discroption of RDD6584G:

The RDD6584G independently developed cutting tool controller with cutting edge following control function, integrates the processing of vibrating cutters, circular cutters, milling cutters, rollers and other tools, and also integrates feeding, circular punching, V-shaped Special punching, brush processing, red light positioning and other functions.

Product feature:

1.High response tool direction follow control, multiple tool processing methods are available.
2.Integration of vibration knife, round knife, milling cutter, press wheel, round punching, V-shaped punching, brush processing, red light positioning and other processing methods.
3.Support single XY axis processing, double XY axes asynchronous processing and double tool heads synchronous processing.
4.Support Mark point positioning cutting, large-format panoramic visual cutting and projection cutting.
5.Suitable for automatic tool cutting and mixed punching processing of garment,leather,fabric,shoe material,carton and other materials.

RUIDA RDD6584G Controller for Oscillating Knife Cutter Vibration Knife Milling Cutter 0

Software VCutWorks(Free)

Support PLT,DXF,AI,DST and other file formats import,display and edit functions,support image file import and processing.

RUIDA RDD6584G Controller for Oscillating Knife Cutter Vibration Knife Milling Cutter 1

Technical Parameters:

Parameters	RDD6584G
Model	Ordinary single track
Axis	8
Input and output	32/28
Communication	Ethernet, USB and WIFI (optional)
Panel	7” touch screen, support parameter modification, static preview and dynamic display of graphics
Tool	Vibration knife, round knife, milling cutter, press wheel, round punching, V-shaped punching, brush processing, red light positioning
Feeding	Support X/Y/U axis feeding independently or Y and U axes feeding synchronously
Cutting	Ordinary cutting
Encryption	Support
Onboard clock	Support
Firmware	Support the remote upgrade of mainboard and panel program
Software	VCutWorks
Language	Including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian, Polish, Japanese

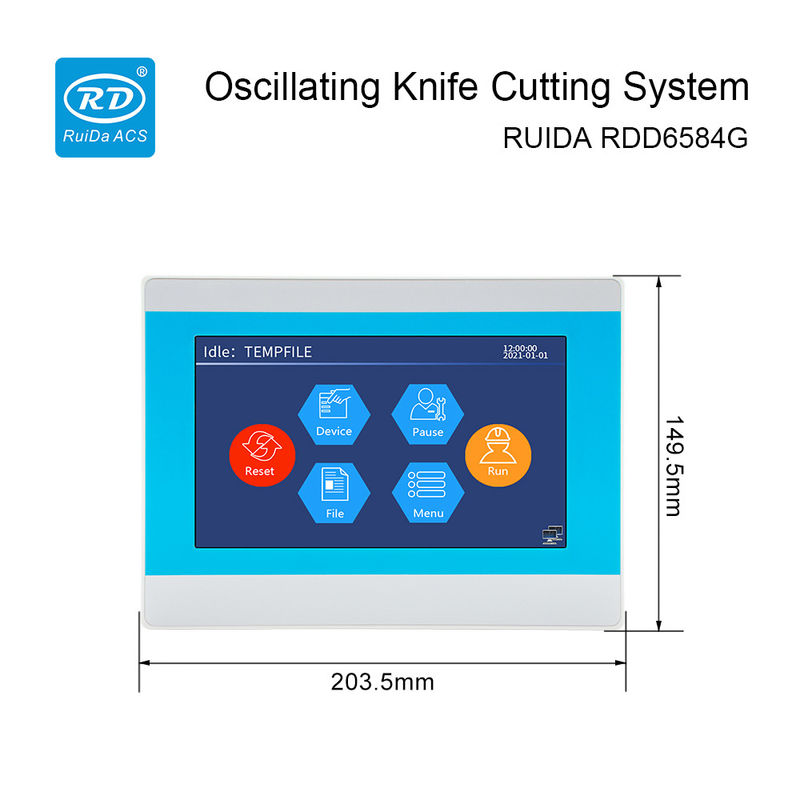

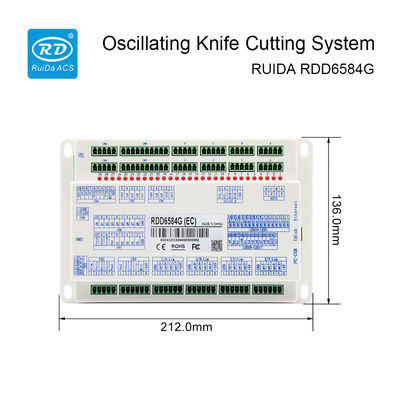

Size	Panel: L199W145H39.1mm Mainboard: L212mmW136mmH33mm
Accessories	Wireless handle, RD-APP and RD-WIFI

RUIDA RDD6584G Controller for Oscillating Knife Cutter Vibration Knife Milling Cutter 2
